Coolant Fed Toolholder Bushing

Coolant Fed Toolholder Bushing

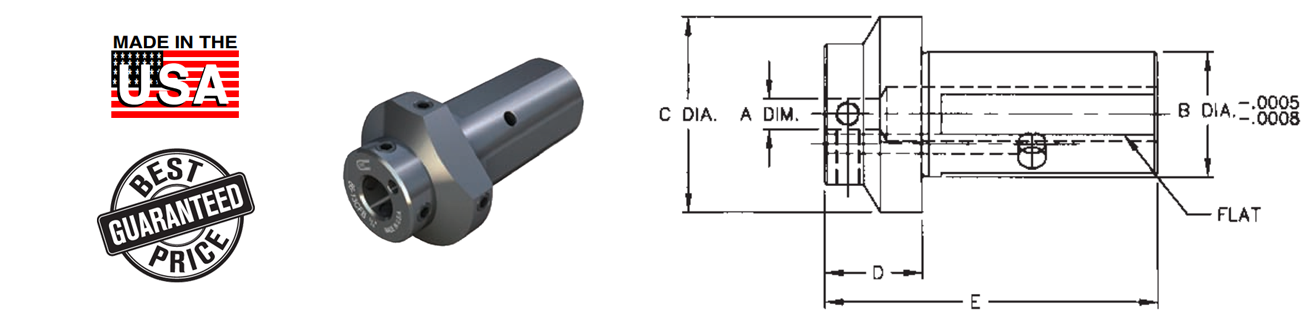

The CNC Type Coolant Fed Bushing is designed for use on applications requiring an External Side Coolant Entry Port. Clamp the Screws from the CNC Machine on the flat and use the Set-screws in the head to clamp directly on the tool allowing for positive alignment of the cutting edge of the tool.
Bushing
OD
Head
Dia.
Head
Thickness
Overall
Length
Bushing
ID
Part Number Price
A C D E B
1-1/4" 50mm 25mm 85mm 5/16" CNC 86-12CFB 5/16"
$179.00
3/8" CNC 86-12CFB 3/8"
1/2" CNC 86-12CFB 1/2"
5/8" CNC 86-12CFB 5/8"
3/4" CNC 86-12CFB 3/4"
1" CNC 86-12CFB 1"
1-1/2" 58mm 30mm 105mm 5/16" CNC 86-13CFB 5/16"
$195.00
3/8" CNC 86-13CFB 3/8"
1/2" CNC 86-13CFB 1/2"
5/8" CNC 86-13CFB 5/8"
3/4" CNC 86-13CFB 3/4"
1" CNC 86-13CFB 1"
1-1/4" CNC 86-13CFB 1-1/4"
