ROUND JAWS - AMERICAN STANDARD TONGUE & GROOVE

FOR USE ON: Bison, Buck, BTC, Cushman, TMX, PBA, Yuasa & Rohm Chucks
  • American Standard Tongue & Groove
  • Round Jaws allow for complete gripping of workpiece
  • Oversized jaws available
  • Ideal for thin-walled or irregular shaped workpieces.
  • Can be machined to fit workpiece
  • All jaws have 2 holes
  • Special "J" dimensions available
  • Available in Aluminum, Cast Iron & Steel
Prices are pulled from our database in real time. Press Add button to see product price.

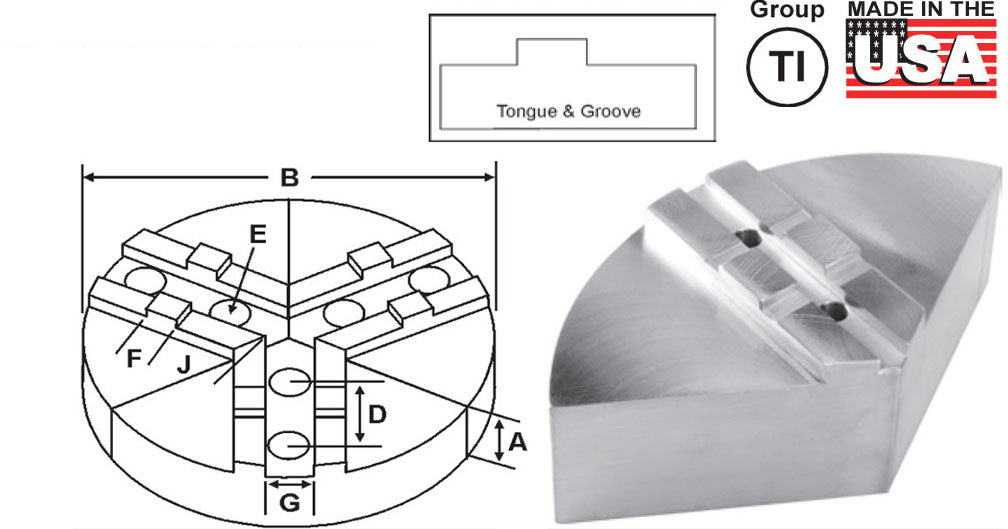

Critical Dimensions ALUMINUM CAST IRON STEEL
Group
No.
Chuck Size Type Groove Width
G
Tongue Width
F
Screw Size
E
Hole Space
D
Tongue to Front
J
Pie
Dia
B
Hght Inch
A
Part
Number
Part
Number
Part
Number
TI-31-5/16-12 5 MEDIUM DUTY 0.313 0.500 5/16 1.250 1.100 6 2.00 6-RTG-5200A
- -
TI-31-3/8-15 6 MEDIUM DUTY 0.313 0.500 3/8 1.500 1.360 6 2.00 RTG-6200A
RTG-6200CI
RTG-6200S*
3.00 RTG-6300A
RTG-6300CI
-
4.00 RTG-6400A
- -
5.00 RTG-6500A*
- -
6.00 RTG-6600A
- -
8 2.00 8-RTG-6200A
8-RTG-6200CI*
8-RTG-6200S*
4.00 8-RTG-6400A
- -
TI-31-7/16-15 6 HEAVY DUTY 0.313 0.500 7/16 1.500 1.260 6 2.00 RTG-6205A
RTG-6205CI
-
4.00 RTG-6405A
- -
8 2.00 8-RTG-6205A
- -
4.00 8-RTG-6405A
- -
TI-31-3/8-17 8 MEDIUM DUTY 0.313 0.500 3/8 1.750 1.200 6 2.00 6-RTG-8200A
- -
6 4.00 6-RTG-8400A*
- -
2.150 8 2.00 RTG-8200A
RTG-8200CI
RTG-8200S
3.00 RTG-8300A
- RTG-8300S*
4.00 RTG-8400A
RTG-8400CI
-
2.150 10 2.00 10-RTG-8200A
10-RTG-8200CI
10-RTG-8200S
3.00 10-RTG-8300A
- -
4.00 10-RTG-8400A
- -
2.150 12 2.00 12-RTG-8200A
- -
2.50 12-RTG-8250A*
- -
4.00 12-RTG-8400A*
- -
5.00 12-RTG-8500A*
- -
TI-31-1/2-17 8 HEAVY DUTY 0.313 0.500 1/2 1.750 2.150 8 2.00 RTG-8205A
RTG-8205CI
-
4.00 RTG-8405A
RTG-8405CI
-
10 2.00 10-RTG-8205A
- -
4.00 10-RTG-8405A
- -
TI-50-1/2-21 10 MEDIUM DUTY 0.500 0.750 1/2 2.125 2.200 12 5.00 12-RTG-10500A*
- -
18 4.00 18-RTG-10400A*
- -
2.125 1.900 8 4.00 8-RTG-10400A
- -
6.00 8-RTG-10600A
- -
2.125 2.200 10 2.00 RTG-10200A
RTG-10200CI
RTG-10200S
3.00 RTG-10300A
- -
4.00 RTG-10400A
RTG-10400CI
RTG-10400S
5.00 RTG-10500A
- -
6.00 - - RTG-10600S
12 2.00 12-RTG-10200A
- -
4.00 12-RTG-10400A
- -
15 2.50 15-RTG-10250A
- -
4.00 15-RTG-10400A
- -
TI-50-5/8-21 10 HEAVY DUTY 0.500 0.750 5/8 2.125 2.200 10 2.00 RTG-10205A
RTG-10205CI
-
3.00 RTG-10305A*
- -
4.00 RTG-10405A
RTG-10405CI
-
5.00 RTG-10505A*
- -
12 2.00 12-RTG-10205A
- -
4.00 12-RTG-10405A
- -
15 2.50 15-RTG-10255A*
- -
TI-50-1/2-25 12 MEDIUM DUTY 0.500 0.750 1/2 2.500 1.770 8 4.00 8-RTG-12400A
- -
6.00 8-RTG-12600A
- -
2.425 10 2.00 10-RTG-12200A
- -
4.00 10-RTG-12400A
- -
3.370 12 2.00 RTG-12200A
RTG-12200CI
-
2.50 RTG-12250A
- -
3.00 RTG-12300A
- -
4.00 RTG-12400A
- RTG-12400S
5.00 RTG-12500A
- -
15 2.50 15-RTG-12250A
15-RTG-12250CI
-
4.00 15-RTG-12400A
- -
18 2.50 18-RTG-12250A
- -
4.00 18-RTG-12400A
- -
21 2.50 21-RTG-12250A*
- -
24 2.50 24-RTG-12250A
- -
TI-50-5/8-25 12 HEAVY DUTY 0.500 0.750 5/8 2.500 3.370 12 2.00 RTG-12205A
RTG-12205CI
-
2.50 RTG-12255A
- -
4.00 RTG-12405A
- -
5.00 RTG-12505A
- -
3.350 15 2.50 15-RTG-12255A
15-RTG-12255CI
-
4.00 15-RTG-12405A
- -
18 2.50 18-RTG-12255A
- -
4.00 18-RTG-12405A
- -
3.100 21 4.00 21-RTG-12405A*
- -
TI-50-5/8-30 15 MEDIUM DUTY 0.500 0.750 5/8 3.000 3.370 12 2.00 12-RTG-15200A
- -
4.00 12-RTG-15400A
- -
3.785 15 2.50 RTG-15250A
RTG-15250CI
-
4.00 RTG-15400A
- RTG-15400S
5.00 RTG-15500A*
- -
4.100 18 2.50 18-RTG-15250A
- -
4.00 18-RTG-15400A
- -
4.550 21 2.50 21-RTG-15250A
- -
4.00 21-RTG-15400A
- -
3.825 24 2.50 24-RTG-15250A
- -
4.00 24-RTG-15400A
- -
TI-50-3/4-30 15 HEAVY DUTY 0.500 0.750 3/4 3.000 3.785 15 2.50 RTG-15255A
RTG-15255CI
-
4.00 RTG-15405A
- -
5.00 RTG-15505A*
- -
4.100 18 2.50 18-RTG-15255A
- -
4.00 18-RTG-15405A
- -
4.550 21 2.50 21-RTG-15255A
- -
4.00 21-RTG-15405A
- -
3.785 24 2.50 24-RTG-15255A
- -
4.00 24-RTG-15405A
- -
18 & Up HEAVY DUTY 0.500 0.750 3/4 3.000 3.370 12 3.00 12-RTG-18300A*
- -
6.00 12-RTG-18600A*
- -
5.100 18 2.50 RTG-18250A
- -
4.00 RTG-18400A
- -
21 2.50 21-RTG-18250A
- -
4.00 21-RTG-18400A
- -
24 2.50 24-RTG-18250A
- -
4.00 24-RTG-18400A
- -
TI-50-7/8-30 18 & Up HEAVY DUTY 0.500 0.750 7/8 3.000 5.000 24 4.00 RTG-24400A
- -

Round Jaw Material: ALUMINUM-6061-T6 Bar Stock, CAST IRON-Gray, STEEL-1018. 18" & Larger- Aluminum Casting T6
* denotes non-stock item. Please allow 1 week manufacturing time.
