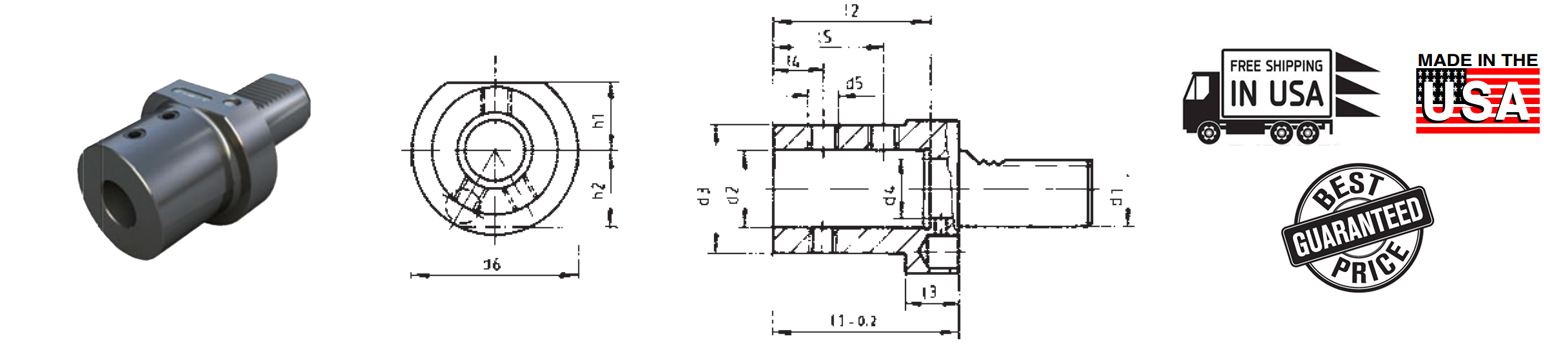

Boring Bar Holder– Form E1

Boring Bar Holder– Form E1
Internal Coolant Flow
Inch sizes can be ordered online. For mm size please call to order.
d1 d2 in d2 mm d3 d4 d5 d6 h1 h2 L1 L2 L3 L4 L5 Part Number Price
20 5/8 16 48 12 3/8-16 50 23 23 67 54 18 15 35 CNC86 51.2016
$319.00
20 3/4 20 48 12 3/8-16 50 23 23 67 54 18 15 35 CNC86 51.2020
$319.00
20 1 25 48 17 3/8-16 50 23 23 71 59 18 17 40 CNC86 51.2025
$319.00
25 5/8 16 41 12 3/8-16 58 25 25 67 54 18 15 35 CNC86 51.2516
$319.00
25 3/4 20 44 12 3/8-16 58 25 25 67 54 18 15 35 CNC86 51.2520
$319.00
25 1 25 45 17 3/8-16 58 25 25 71 59 18 17 40 CNC86 51.2525
$319.00
25 1-1/4 32 50 24 1/2-13 60 25 25 80 63 22 15 38 CNC86 51.2532
$319.00
30 5/16 8 46 6 1/4-20 68 28 30 67 54 22 15 34 CNC86 51.3008
$319.00
30 1/2 12 46 10 1/4-20 68 28 30 67 54 22 15 34 CNC86 51.3012
$319.00
30 5/8 16 46 12 3/8-16 68 28 30 67 54 22 15 35 CNC86 51.3016
$319.00
30 3/4 20 50 12 3/8-16 68 28 30 67 54 22 15 35 CNC86 51.3020
$319.00
30 1 25 55 17 3/8-16 68 28 30 71 59 22 17 40 CNC86 51.3025
$319.00
30 1-1/4 32 62 24 3/8-16 68 28 30 75 63 22 20 44 CNC86 51.3032
$319.00
30 1-1/2 40 66 32 5/8-11 68 28 30 90 73 22 22 50 CNC86 51.3040
$319.00
40 5/8 16 54 12 3/8-16 83 32.5 67 54 22 15 35 CNC86 51.4016
$319.00
40 3/4 20 54 12 3/8-16 83 32.5 67 54 22 15 35 CNC86 51.4020
$319.00
40 1 25 63 17 3/8-16 83 32.5 75 59 22 17 40 CNC86 51.4025
$319.00
40 1-1/4 32 69 24 3/8-16 83 32.5 75 63 22 20 44 CNC86 51.4032
$319.00
40 1-1/2 40 76 32 5/8-11 83 32.5 90 73 22 22 54 CNC86 51.4040
$319.00
40 1-3/4 45 83 40 5/8-11 83 32 100 83 24 60 CNC86 51.4045
$319.00
40 2 50 81 32 5/8-11 83 32.5 100 83 22 24 60 CNC86 51.4050
$319.00
50 3/4 20 57 12 3/8-16 98 35 67 54 30 15 35 CNC86 51.5020
$319.00
50 1 25 63 17 3/8-16 98 35 80 59 30 17 40 CNC86 51.5025
$319.00
50 1-1/4 32 69 24 3/8-16 98 35 80 63 30 20 44 CNC86 51.5032
$319.00
50 1-1/2 40 76 32 5/8-11 98 35 100 73 30 22 54 CNC86 51.5040
$319.00
50 2 50 88 42 5/8-11 98 35 100 83 30 24 60 CNC86 51.5050
$319.00
60 3/4 20 57 12 3/8-16 123 42.5 80 54 30 15 35 CNC86 51.6020
$319.00
60 1 25 63 17 3/8-16 123 42.5 80 59 30 17 40 CNC86 51.6025
$319.00
60 1-1/4 32 69 24 3/8-16 123 42.5 80 63 30 20 44 CNC86 51.6032
$319.00
60 1-1/2 40 76 32 5/8-11 123 42.5 100 73 30 22 54 CNC86 51.6040
$319.00
60 1-3/4 45 83 40 5/8-11 123 42 100 83 30 22 54 CNC86 51.6045
$319.00
60 2 50 89 40 5/8-11 123 42.5 100 83 30 24 60 CNC86 51.6050
$319.00
60 2-1/2 65 89 40 5/8-18 123 42 100 83 30 22 54 CNC86 51.6065
$319.00
80 3/4 20 57 12 3/8-16 158 55 80 54 40 15 35 CNC86 51.8020
$319.00
80 1 25 63 17 3/8-16 158 55 80 59 40 17 40 CNC86 51.8025
$319.00
80 1-1/4 32 69 24 3/8-16 158 55 80 63 40 20 44 CNC86 51.8032
$319.00
80 1-1/2 40 76 32 1/2-13 158 55 100 73 40 22 54 CNC86 51.8040
$319.00
80 2 50 88 42 1/2-13 158 55 100 83 40 24 60 CNC86 51.8050
$319.00
