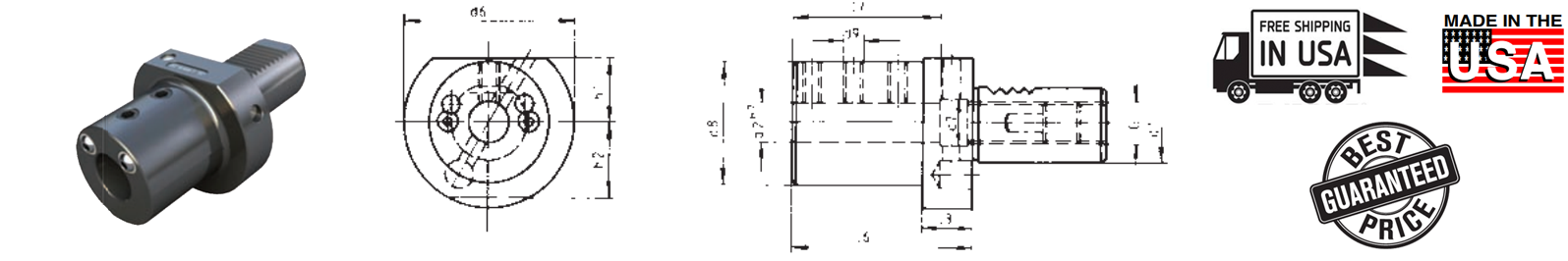

Boring Bar Holder– Form E2

Boring Bar Holder– Form E2
Dual External Coolant Flow
Inch sizes can be ordered online. For mm size please call to order.
d1 d2 in d2 mm d6 d7 d8 d9 h1 h2 L3 L6 L7 G Part Number Price
16 1/4 6 40 7 40 10-32 18 18 13 44 34 5/16-24 CNC86 52.1606
$206.00
16 5/16 8 45 7 40 10-32 18 18 13 44 34 5/16-24 CNC86 52.1608
$206.00
16 3/8 10 45 7 40 10-32 18 18 13 44 34 5/16-24 CNC86 52.1610
$206.00
16 1/2 12 45 7 40 1/4-28 18 18 13 44 34 5/16-24 CNC86 52.1612
$206.00
16 5/8 16 45 7 40 1/4-28 18 18 13 44 34 5/16-24 CNC86 52.1616
$206.00
20 5/16 8 50 9 40 10-24 23 23 18 50 41 3/8-16 CNC86 52.2008
$206.00
20 3/8 10 50 9 40 10-24 23 23 18 50 41 3/8-16 CNC86 52.2010
$206.00
20 1/2 12 50 9 40 1/4-20 23 23 18 50 41 3/8-16 CNC86 52.2012
$206.00
20 5/8 16 50 9 40 1/4-20 23 23 18 50 41 3/8-16 CNC86 52.2016
$206.00
20 3/4 20 50 9 50 1/4-20 23 23 18 50 41 3/8-16 CNC86 52.2020
$206.00
20 1 25 50 9 50 1/4-20 23 23 18 60 51 3/8-16 CNC86 52.2025
$206.00
25 5/16 8 58 12.5 40 1/4-20 25 25 18 50 41 3/8-16 CNC86 52.2508
$206.00
25 3/8 10 58 12.5 40 1/4-20 25 25 18 50 41 3/8-16 CNC86 52.2510
$206.00
25 1/2 12 58 12.5 40 1/4-20 25 25 18 50 41 3/8-16 CNC86 52.2512
$206.00
25 5/8 16 58 12.5 40 1/4-20 25 25 18 50 41 3/8-16 CNC86 52.2516
$206.00
25 3/4 20 58 12.5 58 1/4-20 25 25 18 50 41 3/8-16 CNC86 52.2520
$206.00
25 1 25 58 12.5 58 1/4-20 25 25 18 60 51 3/8-16 CNC86 52.2525
$206.00
30 1/4 6 68 14 55 10-32 28 30 22 60 51 5/8-18 CNC86 52.3006
$206.00
30 5/16 8 68 16.5 55 1/4-20 28 30 22 60 51 5/8-11 CNC86 52.3008
$206.00
30 3/8 10 68 16.5 55 1/4-20 28 30 22 60 51 5/8-11 CNC86 52.3010
$206.00
30 1/2 12 68 16.5 55 1/4-20 28 30 22 60 51 5/8-11 CNC86 52.3012
$206.00
30 5/8 16 68 16.5 55 1/4-20 28 30 22 60 51 5/8-11 CNC86 52.3016
$206.00
30 3/4 20 68 16.5 55 1/4-20 28 30 22 60 51 5/8-11 CNC86 52.3020
$206.00
30 1 25 68 16.5 55 1/4-20 28 30 22 60 51 5/8-11 CNC86 52.3025
$206.00
30 1-1/4 32 68 16.5 68 3/8-16 28 30 22 75 61 5/8-11 CNC86 52.3032
$206.00
30 1-1/2 40 83 41 74 1/2-13 32 30 22 90 74 5/8-18 CNC86 52.3040
$206.00
40 5/16 8 83 20.5 55 1/4-20 32.5 22 75 61 5/8-11 CNC86 52.4008
$206.00
40 3/8 10 83 20.5 55 1/4-20 32.5 22 75 61 5/8-11 CNC86 52.4010
$206.00
40 1/2 12 83 20.5 55 3/8-16 32.5 22 75 61 5/8-11 CNC86 52.4012
$206.00
40 5/8 16 83 20.5 55 3/8-16 32.5 22 75 61 5/8-11 CNC86 52.4016
$206.00
40 3/4 20 83 20.5 55 3/8-16 32.5 22 75 61 5/8-11 CNC86 52.4020
$206.00
40 1 25 83 20.5 55 1/2-13 32.5 22 75 61 5/8-11 CNC86 52.4025
$206.00
40 1-1/4 32 83 20.5 83 1/2-13 32.5 22 75 61 5/8-11 CNC86 52.4032
$206.00
40 1-1/2 40 83 20.5 83 1/2-13 32.5 22 90 76 5/8-11 CNC86 52.4040
$206.00
40 1-3/4 45 83 46 74 1/2-13 32 22 90 74 5/8-18 CNC86 52.4045
$206.00
40 2 50 83 51 83 1/2-13 32 100 86 5/8-18 CNC86 52.4050
$206.00
50 1/2 12 98 26.5 68 3/8-16 35 30 90 76 5/8-11 CNC86 52.5012
$206.00
50 5/8 16 98 26.5 68 3/8-16 35 30 90 76 5/8-11 CNC86 52.5016
$206.00
50 3/4 20 98 26.5 68 1/2-13 35 30 90 76 5/8-11 CNC86 52.5020
$206.00
50 1 25 98 26.5 68 1/2-13 35 30 90 76 5/8-11 CNC86 52.5025
$206.00
50 1-1/4 32 98 26.5 68 1/2-13 35 30 90 76 5/8-11 CNC86 52.5032
$206.00
50 1-1/2 40 98 26.5 98 1/2-13 35 30 90 76 5/8-11 CNC86 52.5040
$206.00
50 1-3/4 45 98 46 95 1/2-13 35 30 90 76 5/8-18 CNC86 52.5045
$206.00
50 2 50 98 26.5 98 1/2-13 35 30 100 86 5/8-18 CNC86 52.5050
$206.00
50 2-1/2 65 102 66 102 1/2-13 42 108 86 5/8-18 CNC86 52.5065
$206.00
60 5/8 16 123 40.5 68 3/8-16 42.5 30 90 76 3/4-16 CNC86 52.6016
$206.00
60 3/4 20 123 40.5 68 1/2-13 42.5 30 90 76 5/16-16 CNC86 52.6020
$206.00
60 1 25 123 40.5 68 1/2-13 42.5 30 90 76 3/4-16 CNC86 52.6025
$206.00
60 1-1/4 32 123 40.5 68 1/2-13 42.5 30 90 76 3/4-16 CNC86 52.6032
$206.00
60 1-1/2 40 123 40.5 98 1/2-13 42.5 30 90 76 3/4-16 CNC86 52.6040
$206.00
60 2 50 123 40.5 98 1/2-13 42.5 30 100 86 3/4-16 CNC86 52.6050
$206.00
60 2-1/2 65 123 66 108 1/2-13 42 30 100 86 5/8-18 CNC86 52.6065
$206.00
80 3/4 20 158 40.5 68 1/2-13 55 30 100 86 5/8-18 CNC86 52.8020
$206.00
80 1 25 158 40.5 68 1/2-13 55 30 100 86 3/4-16 CNC86 52.8025
$206.00
80 1-1/4 32 158 40.5 68 1/2-13 55 30 100 86 3/4-16 CNC86 52.8032
$206.00
80 1-1/2 40 158 40.5 98 1/2-13 55 30 100 86 3/4-16 CNC86 52.8040
$206.00
80 2 50 158 40.5 98 1/2-13 55 30 100 86 3/4-16 CNC86 52.8050
$206.00
80 2-1/2 65 158 66 98 1/2-13 55 40 100 80 3/4-16 CNC86 52.8065
$206.00
