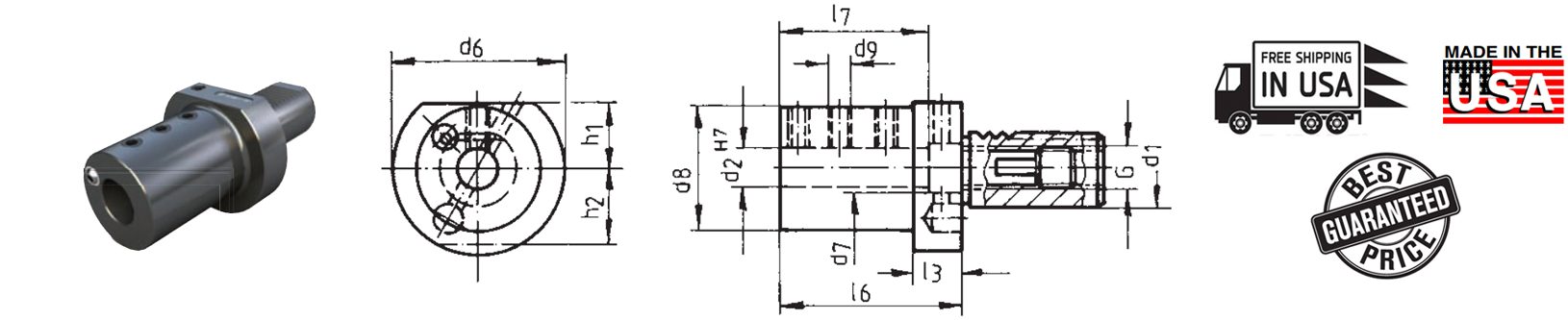

Boring Bar Holder – Form E4

Boring Bar Holder – Form E4
External Single Coolant Flow
Inch sizes can be ordered online. For mm size please call to order.
d1 d2 in d2 mm d6 d7 d8 d9 h1 h2 L3 L6 L7 G Part Number Price
30 5/16 8 68 16.5 55 1/4-20 28 30 22 85 70 5/8-11 CNC86 54.3008
$200.00
30 3/8 10 68 16.5 55 5/16-18 28 30 22 85 70 5/8-11 CNC86 54.3010
$200.00
30 1/2 12 68 16.5 55 5/16-18 28 30 22 85 70 5/8-11 CNC86 54.3012
$200.00
30 5/8 16 68 16.5 55 3/8-16 28 30 22 85 70 5/8-11 CNC86 54.3016
$200.00
30 3/4 20 68 16.5 55 3/8-16 28 30 22 85 70 5/8-11 CNC86 54.3020
$200.00
30 1 25 68 16.5 55 1/2-13 28 30 22 85 70 5/8-11 CNC86 54.3025
$200.00
30 1-1/4 32 68 16.5 55 1/2-13 28 30 30 85 70 5/8-11 CNC86 54.3032
$200.00
30 1-1/2 40 68 41 73 1/2-13 28 30 22 85 70 5/8-18 CNC86 54.3040
$200.00
40 5/16 8 83 20.5 55 1/4-20 32.5 22 95 80 5/8-11 CNC86 54.4008
$200.00
40 3/8 10 83 20.5 55 5/16-18 32.5 22 95 80 5/8-11 CNC86 54.4010
$200.00
40 1/2 12 83 20.5 55 3/8-16 32.5 22 95 80 5/8-11 CNC86 54.4012
$200.00
40 5/8 16 83 20.5 55 3/8-16 32.5 22 95 80 5/8-11 CNC86 54.4016
$200.00
40 3/4 20 83 20.5 55 3/8-16 32.5 22 95 80 5/8-11 CNC86 54.4020
$200.00
40 1 25 83 20.5 55 1/2-13 32.5 22 95 80 5/8-11 CNC86 54.4025
$200.00
40 1-1/4 32 83 20.5 55 1/2-13 32.5 30 95 80 5/8-11 CNC86 54.4032
$200.00
40 1-1/2 40 83 20.5 70 1/2-13 32.5 30 95 80 5/8-11 CNC86 54.4040
$200.00
50 1/2 12 98 26.5 68 3/8-16 35 30 95 78 5/8-11 CNC86 54.5012
$200.00
50 5/8 16 98 26.5 68 3/8-16 35 30 95 78 5/8-11 CNC86 54.5016
$200.00
50 3/4 20 98 26.5 68 1/2-13 35 30 95 78 5/8-11 CNC86 54.5020
$200.00
50 1 25 98 26.5 68 1/2-13 35 30 95 78 5/8-11 CNC86 54.5025
$200.00
50 1-1/4 32 98 26.5 68 1/2-13 35 30 95 78 5/8-11 CNC86 54.5032
$200.00
50 1-1/2 40 98 26.5 68 1/2-13 35 30 95 78 5/8-11 CNC86 54.5040
$200.00
50 1-3/4 45 98 46 89 1/2-13 35 30 95 78 5/8-18 CNC86 54.5045
$200.00
50 2 50 98 51 89 1/2-13 35 30 95 78 5/8-18 CNC86 54.5050
$200.00
60 5/8 16 123 40.5 68 1/2-13 42.5 30 100 83 3/4-16 CNC86 54.6016
$200.00
60 3/4 20 123 40.5 68 1/2-13 42.5 30 100 83 3/4-16 CNC86 54.6020
$200.00
60 1 25 123 40.5 68 1/2-13 42.5 30 100 83 3/4-16 CNC86 54.6025
$200.00
60 1-1/4 32 123 40.5 68 1/2-13 42.5 30 100 83 3/4-16 CNC86 54.6032
$200.00
60 1-1/2 40 123 40.5 80 1/2-13 42.5 30 100 83 3/4-16 CNC86 54.6040
$200.00
60 2 50 123 51 95 1/2-13 42 30 100 83 5/8-18 CNC86 54.6050
$200.00
