Boring Bar Sleeves - (Inch OD - Inch ID)

Boring Bar Sleeves
CNC Boring Bar Sleeves are universally used to adapt all Boring Bar or shank type tools to any CNC Turning Machines and Machining Centers for extensions or hard to reach areas. They are hardened, precision ground, concentric, and black oxided for long lasting protection.
*This NEW innovative design on the 1-1/2" O.D. boring bar sleeves helps the tools stay cool longer by projecting the coolant directly on the cutting edge.

Boring Bar Sleeves Also Available In: Click Here

  • Inch OD – Metric ID
  • Metric OD – Inch ID
  • Metric OD – Metric ID

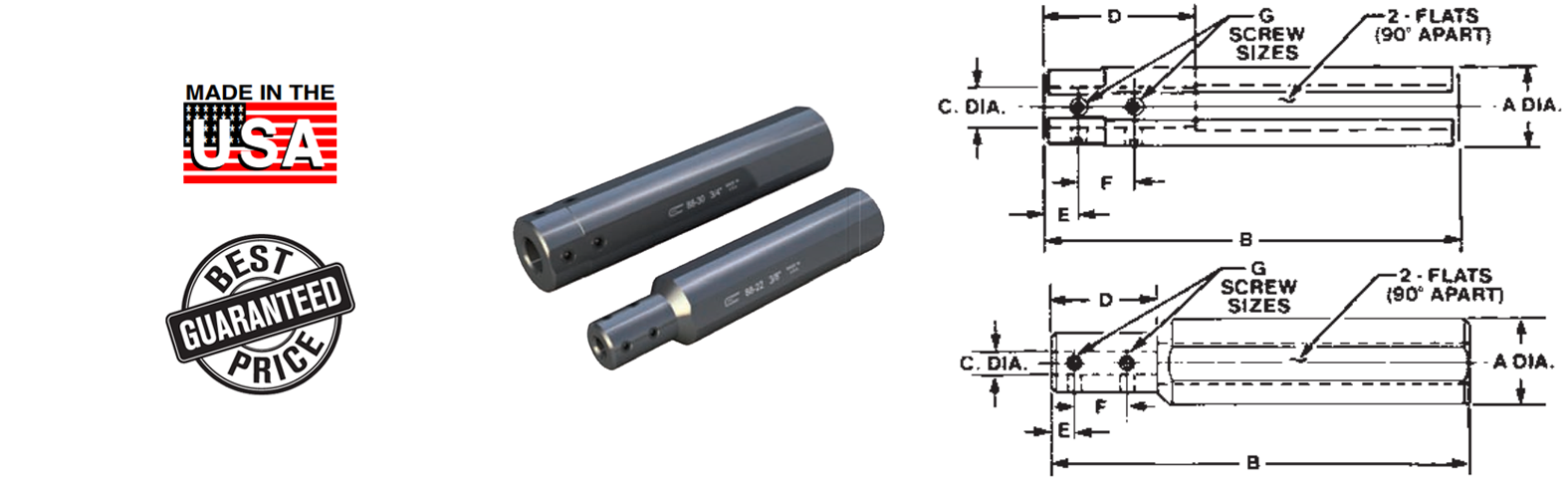

OD OAL ID Part Number Price Screw
Size
A B D E F C
3/4" 5" 1-1/2" 5/16" 5/8" 1/4" CNC 8815 1/4"
$80.00 10-32
1-1/2" 5/16" 5/8" 5/16" CNC 8816 5/16"
1-1/2" 5/16" 5/8" 3/8" CNC 8817 3/8"
3" 5/16" 5/8" 1/2" CNC 8818 1/2"
1" 6" 1-3/4" 7/16" 5/8" 5/16" CNC 8819 5/16"
$80.00 1/4-28
1-3/4" 7/16" 5/8" 3/8" CNC 8820 3/8"
2" 7/16" 5/8" 1/2" CNC 8821 1/2"
1-1/4" 6-1/2" 1-1/2" 5/16" 5/8" 3/8" CNC 88125 3/8"
$96.00 1/4-28
2-1/4" 7/16" 5/8" 1/2" CNC 88126 1/2"
2-1/2" 7/16" 3/4" 5/8" CNC 88127 5/8"
3" 7/16" 3/4" 3/4" CNC 88128 3/4"
4" 7/16" 3/4" 7/8" CNC 88129 7/8"
10-32
4" 7/16" 3/4" 1" CNC 88130 1"
1-1/2" 7" 2" 5/16" 5/8" 3/8" CNC 8822 3/8"
$99.00 1/4-28
2-1/4" 7/16" 11/16" 1/2" CNC 8823 1/2"
5/16-24
2-1/4" 7/16" 3/4" 5/8" CNC 8824 5/8"
2-1/2" 7/16" 3/4" 3/4" CNC 8825 3/4"
8" 3" 7/16" 3/4" 7/8" CNC 8826 7/8"
1/4-28
4" 7/16" 7/8" 1" CNC 8827 1"
1-3/4" 8" 2-1/2" 5/16" 5/8" 1/2" CNC 8828 1/2"
$108.00 5/16-24
2-1/2" 7/16" 1" 5/8" CNC 8829 5/8"
2-1/2" 7/16" 1" 3/4" CNC 8830 3/4"
3/8-24
2-1/2" 7/16" 1" 7/8" CNC 8831 7/8"
2-1/2" 7/16" 1" 1" CNC 8832 1"
2" 9" 2" 7/16" 1" 5/8" CNC 8834 5/8"
$120.00 7/16-20
2-3/4" 7/16" 1" 3/4" CNC 8835 3/4"
2" 7/16" 1" 7/8" CNC 8833 7/8"
3-1/2" 7/16" 1" 1" CNC 8836 1"
1/2-20
3" 5/8" 1" 1-1/4" CNC 8837 1-1/4"
2-1/2" 10" 3-1/2" 7/16" 1" 5/8" CNC 8838 5/8"
$140.00 1/2-20
3-1/2" 7/16" 1" 3/4" CNC 8839 3/4"
4" 7/16" 1" 1" CNC 8840 1"
4" 5/8" 1" 1-1/4" CNC 8841 1-1/4"
3-1/2" 1/2" 1" 1-1/2" CNC 8842 1-1/2"
3" 11-1/2" 4" 1/2" 1" 1" CNC 8845 1"
$180.00 1/2-20
3-1/2" 1/2" 1" 1-1/4" CNC 8843 1-1/4"
4-1/2" 1/2" 1" 1-1/2" CNC 8844 1-1/2"
3-3/4" 5/8" 1-1/4" 1-3/4" CNC 8847 1-3/4"
4-1/2" 1/2" 1" 2" CNC 8846 2"
4" 14" 3-3/4" 19/32" 1-7/8" 1-1/2" CNC 8850 1-1/2"
$310.00 5/8-18
3-3/4" 5/8" 1-7/8" 1-3/4" CNC 8851 1-3/4"
3-3/4" 19/32" 1-3/4" 2" CNC 8852 2"
4" 5/8" 2" 2-1/2" CNC 8853 2-1/2"
4" 3/4" 1-1/4" 3" CNC 8854 3"
