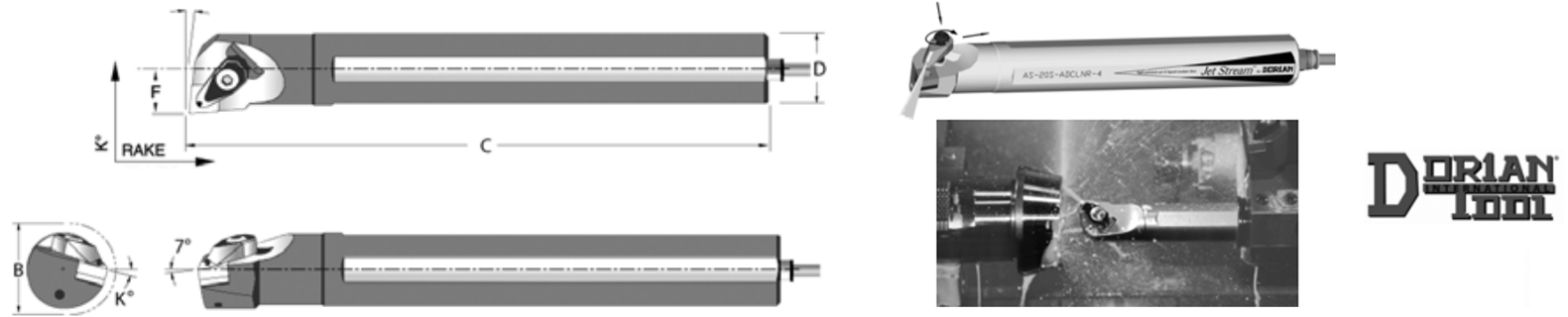

COOLANT THRU BORING BARS
Jet-Stream™
FEATURES:

Air or liquid coolant, chip flush system
Precise insert repeatability
Extends insert life, cuts machining cost
1000 PSI coolant pressure
1/8 NPT

PVD-TiN Coated, 92Rc Surface Hardening, Wear Resistant Shank!

Prices are pulled from our database in real time. Press Add button to see product price.

Gage Insert	B	C	D	F	K	Right Hand Part Number	Left Hand Part Number	Seat	Seat Screw	Locking Clamp A-Air	Locking Clamp L-Liquid
AS-ADCLN R/L COOLANT THRU BORING BARS-Style L - Negative 5° End Or Side Cutting Edge Angle for CNM_ (80° Diamond) inserts
CNMG 33_	1.00	8	0.75	0.500	10°	DN-AS12RADCLNR3	DN-AS12RADCLNL3	-	-	DN-JSLC-AC3	DN-JSLC-LC3
CNMG 43_	1.28	8	1.00	0.640	14°	DN-AS16RADCLNR4	DN-AS16RADCLNL4	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 43_	1.53	10	1.25	0.765	14°	DN-AS20SADCLNR4	DN-AS20SADCLNL4	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 43_	1.78	10	1.50	0.890	11°	DN-AS24SADCLNR4	DN-AS24SADCLNL4	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 43_	2.56	12	2.00	1.281	11°	DN-AS32TADCLNR4	DN-AS32TADCLNL4	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 54_	2.56	12	2.00	1.281	11°	DN-AS32TADCLNR5	DN-AS32TADCLNL5	DN-S8016P	DN-SM-M5	DN-JSLC-AC5	DN-JSLC-LC5
AS-ADVUN R/L COOLANT THRU BORING BARS-Style U - Negative 3° side cutting edge angle for VNM_ (35° Diamond) inserts
VNMG 33_	2.00	8	1.00	1.000	14°	DN-AS16RADVUNR3	DN-AS16RADVUNL3	DN-S3516P	DN-SM-M3	DN-JSLC-AV3	DN-JSLC-LV3
VNMG 33_	2.25	8	1.25	1.125	14°	DN-AS20RADVUNR3	DN-AS20RADVUNL3	DN-S3516P	DN-SM-M3	DN-JSLC-AV3	DN-JSLC-LV3
VNMG 33_	2.50	10	1.50	1.250	11°	DN-AS24SADVUNR3	DN-AS24SADVUNL3	DN-S3516P	DN-SM-M3	DN-JSLC-AV3	DN-JSLC-LV3
AS-ADWLN R/L COOLANT THRU BORING BARS-Style L - Negative 5° end and side cutting edge angle for WNM_ (80° Trigon) Inserts
WNMG 33_	1.00	8	0.75	0.500	14°	DN-AS12RADWLNR3	DN-AS16RADWLNL3	-	-	DN-JSLC-AW3	DN-JSLC-LW3
WNMG 43_	1.28	8	1.00	0.640	14°	DN-AS16RADWLNR4	DN-AS16RADWLNL4	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4
WNMG 43_	1.53	10	1.25	0.765	14°	DN-AS20SADWLNR4	DN-AS20SADWLNL4	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4
WNMG 43_	1.78	10	1.50	0.890	11°	DN-AS24SADWLNR4	DN-AS24SADWLNL4	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4
WNMG 43_	2.00	12	2.00	1.281	12°	DN-AS32TADWLNR4	DN-AS32TADWLNL4	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4

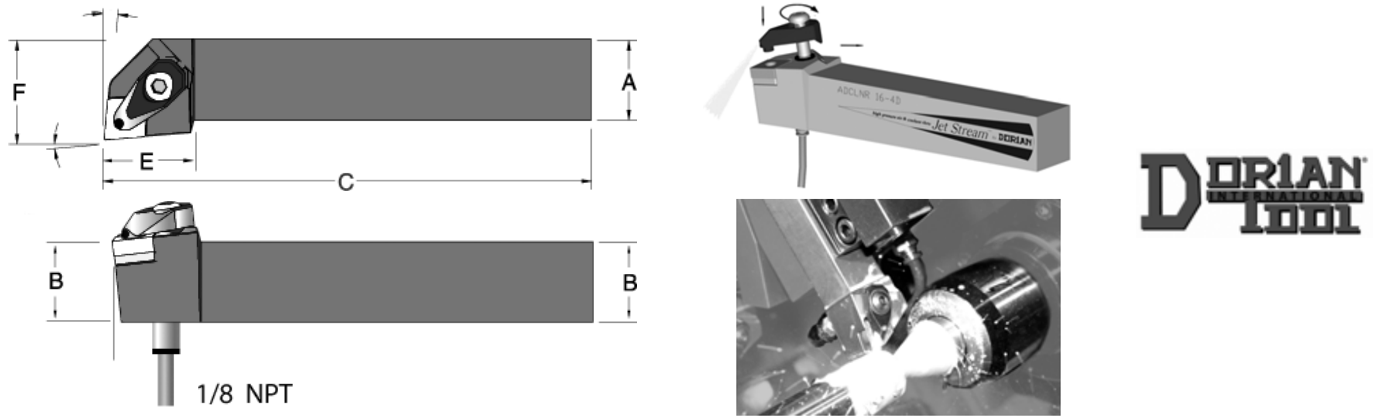

COOLANT THRU OD TOOLHOLDERS
Jet-Stream™
FEATURES:

Air or liquid coolant, chip flush system
Precise insert repeatability
Extends insert life, cuts machining cost
1000 PSI coolant pressure
1/8 NPT

Prices are pulled from our database in real time. Press Add button to see product price.

Gage Insert	A	B	C	E	F	Right Hand Part Number	Left Hand Part Number	Seat	Seat Screw	Locking Clamp A-Air	Locking Clamp L-Liquid
ADCLN R/L COOLANT THRU TOOLHOLDERS-Style L - Negative 5° End or Side Cutting Edge angle for CNM_ (80° Diamond) inserts
CNMG 43_	0.75	0.75	4.5	1.250	1.00	DN-ADCLNR124B	DN-ADCLNL124B	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 43_	1.00	1.00	6.0	1.250	1.25	DN-ADCLNR164D	DN-ADCLNL164D	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 43_	1.25	1.25	6.0	1.250	1.50	DN-ADCLNR204D	DN-ADCLNL204D	DN-S8012P	DN-SM-M4	DN-JSLC-AC4	DN-JSLC-LC4
CNMG 54_	1.25	1.25	6.0	1.375	2.00	DN-ADCLNR205D	DN-ADCLNL205D	DN-S8016P	DN-SM-M5	DN-JSLC-AC5	DN-JSLC-LC5
ADDJN R/L COOLANT THRU TOOLHOLDERS- Style J - 3° Side Cutting Edge Angle For DNM_ (55° Diamond) inserts
DNMG 33_	0.75	0.75	4.5	1.50	1.00	DN-ADDJNR123B	DN-ADDJNL123B	DN-S5511P	DN-SM-M3	DN-JSLC-AD3	DN-JSLC-LD3
DNMG 43_	0.75	0.75	4.5	1.50	1.00	DN-ADDJNR124B	DN-ADDJNL124B	DN-S5515P	DN-SM-M4	DN-JSLC-AD4	DN-JSLC-LD4
DNMG 43_	1.00	1.00	6.0	1.50	1.25	DN-ADDJNR164D	DN-ADDJNL164D	DN-S5515P	DN-SM-M4	DN-JSLC-AD4	DN-JSLC-LD4
DNMG 43_	1.25	1.25	6.0	1.50	1.50	DN-ADDJNR204D	DN-ADDJNL204D	DN-S5515P	DN-SM-M4	DN-JSLC-AD4	DN-JSLC-LD4
ADWLN R/L COOLANT THRU TOOLHOLDERS Style L - Negative 5° End And Side Cutting Edge Angle for WNM_ (80° TRIGON) inserts
WNMG 43_	0.75	0.75	4.5	1.25	1.00	DN-ADWLNR124B	DN-ADWLNL124B	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4
WNMG 43_	1.00	1.00	6.0	1.25	1.25	DN-ADWLNR164D	DN-ADWLNL164D	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4
WNMG 43_	1.25	1.25	6.0	1.25	1.50	DN-ADWLNR204D	DN-ADWLNL204D	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4
WNMG 43_	1.50	1.50	7.0	1.25	2.00	DN-ADWLNR244E	DN-ADWLNL244E	DN-S8008P	DN-SM-M4	DN-JSLC-AW4	DN-JSLC-LW4

ADDITIONAL HARDWARE

Prices are pulled from our database in real time. Press Add button to see product price.

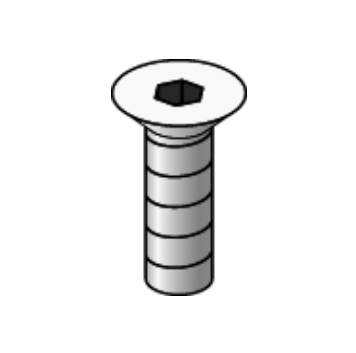

Seat Screws

Part #
DN-SM-M3
DN-SM-M4
DN-SM-M5

Prices are pulled from our database in real time. Press Add button to see product price.

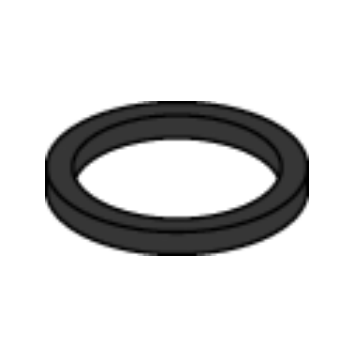

O-Rings (Pack Of 10)

Part #
DN-JSOR-03
DN-JSOR-04
DN-JSOR-05

Prices are pulled from our database in real time. Press Add button to see product price.

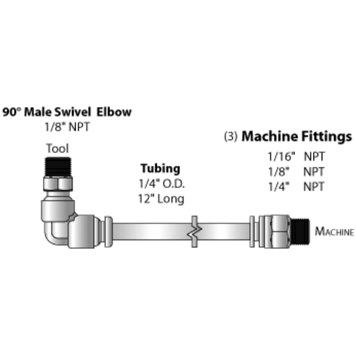

Coolant Quick Connect Kit

Part #
DN-JSQCK1825062
DN-JSQCK1825125
DN-JSQCK1825250
