Micro 100 Coolant Thru Boring Bars

COOLANT-THRU BORING BARS
FEATURES:

• Durable and unique chrome nickel toolholder
• Positive chip control
• Coolant-thru hole design
• Each holder includes torx screw and torx key

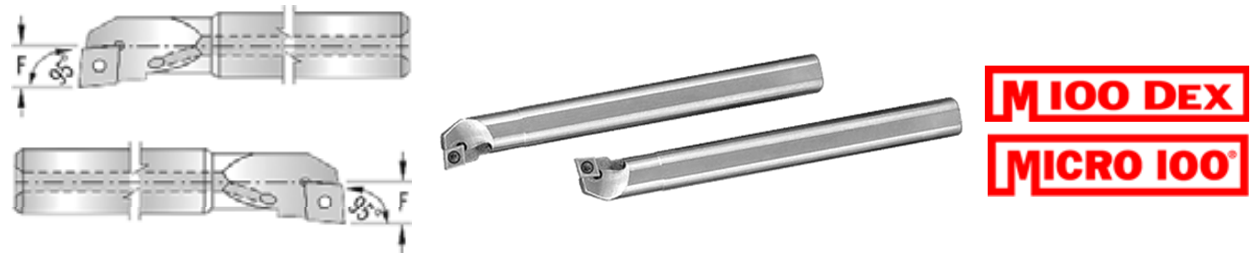

90° Boring & Facing/95° Approach Prices are pulled from our database in real time. Press Add button to see product price.
Uses CCMT 21.51 Inserts (not included)

Toolholder Nomenclature	Shank Dia	OAL	F Over Insert	Min. Bore	Right Hand Part Number	Left Hand Part Number
A04F SCLCR 2	1/4	3	.177	.330	MI-200821 Add	MI-200822 Add
A05H SCLCR 2	5/16	4	.197	.380	MI-200823 Add	MI-200824 Add
A06J SCLCR 2	3/8	4 1/2	.275	.490	MI-200825 Add	MI-200826 Add
A08K SCLCR 2	1/2	5	.354	.630	MI-200827 Add	MI-200828 Add
A10M SCLCR 2	5/8	6	.433	.775	MI-200829 Add	MI-200830 Add

For Blind Holes Using 90° Insert Face Prices are pulled from our database in real time. Press Add button to see product price.
Uses TCMT 21.51 Inserts (not included)

Toolholder Nomenclature	Shank Dia	OAL	F Over Insert	Min. Bore	Right Hand Part Number	Left Hand Part Number
A06J STFCR 2	3/8	4 1/2	.275	.490	MI-201031 Add	MI-201032 Add
A08K STFCR 2	1/2	5	.354	.605	MI-201033 Add	MI-201034 Add
A10M STFCR 2	5/8	6	.433	.775	MI-201035 Add	MI-201036 Add

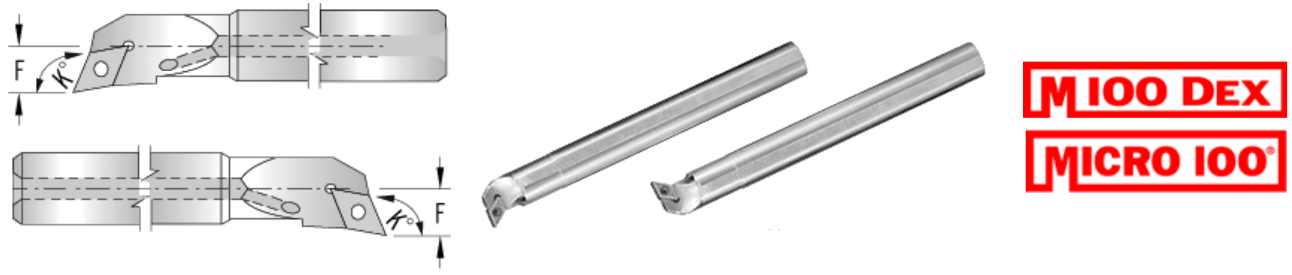

Profile Boring & Facing Prices are pulled from our database in real time. Press Add button to see product price.
Uses DCMT 21.51 Inserts (not included)

Toolholder Nomenclature	Shank Dia	OAL	F Over Insert	Min. Bore	K Angle	Right Hand Part Number	Left Hand Part Number
A05H SDQCR 2	5/16	4	.197	.355	107.5°	MI-200901 Add	MI-200902 Add
A06J SDUCR 2	3/8	4 1/2	.275	.490	93°	MI-200931 Add	MI-200932 Add
A08K SDUCR 2	1/2	5	.354	.605	93°	MI-200933 Add	MI-200934 Add
A10M SDUCR 2	5/8	6	.433	.775	93°	MI-200935 Add	MI-200936 Add

COOLANT-THRU BORING BAR SETS
All sets come complete with carbide insert, torx screw and torx key. Prices are pulled from our database in real time. Press Add button to see product price.

Shank Diameters	Description	Part Number
1/4, 5/16, 3/8, 1/2	Set of 4 pcs. SCLCR with CCMT 21.51 insert	MI-400100 Add
3/8, 1/2, 5/8	Set of 3 pcs. SDUCR with DCMT 21.51 insert	MI-402400 Add
3/8, 1/2, 5/8	Set of 3 pcs. STFCR with TCMT 2151 insert	MI-402100 Add

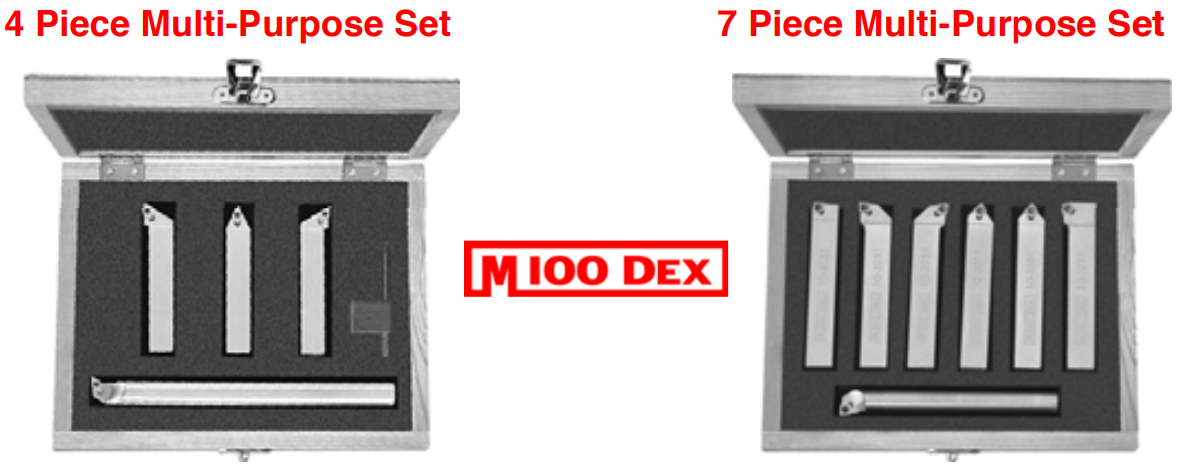

MULTI-PURPOSE SETS
Prices are pulled from our database in real time. Press Add button to see product price.

	Shank Sizes
Description	Square 3 PCS.	Round 1 PC.	Part Number
4 Piece Multi-Purpose Set 1 ea. SDJCR, SDJCL, SDNCN, SDQCR	5/16	5/16	MI-407200 Add
	3/8	3/8	MI-407201 Add
	1/2	1/2	MI-407202 Add
	5/8	5/8	MI-407203 Add

	Shank Sizes
Description	Square 6 PCS.	Round 1 PC.	Part Number
7 Piece Multi-Purpose Set 1 ea. SCLCR, SCLCL, SCBCR, SCKCR, SCMCN, SCSCR, SCLCR	1/4	1/4	MI-407101 Add
	5/16	1/4	MI-407102 Add
	3/8	5/16	MI-407103 Add
	1/2	3/8	MI-407104 Add
	5/8	1/2	MI-407105 Add
