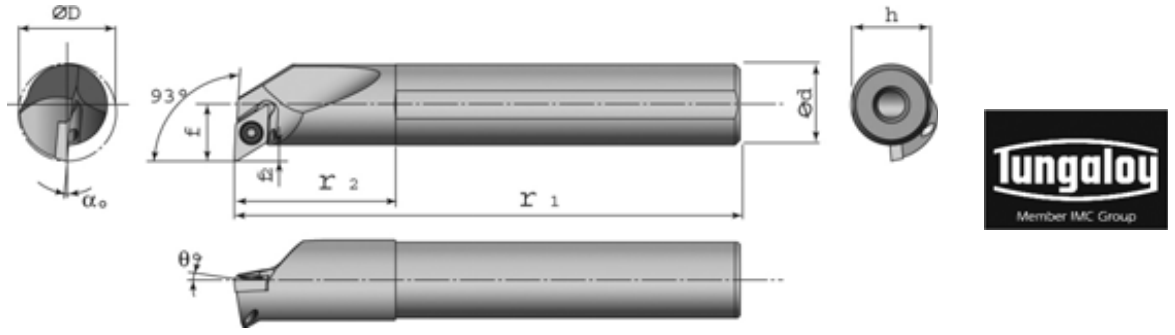

SANDVIK Style Boring Bars - Min bore .750-1.250 - SDUCR Bars using DCMT (55° Diamond) Inserts
Solid & Coolant Thru
- Industry standard SDUCR type
- Uses DCMT type inserts
- Shanks have locating flats for easy set-up
- Steel shank
| Insert Series |
Industry Reference |
Shank Dia |
Min Bore |
F Dim |
OAL | Right Hand Part Number |
Left Hand Part Number |
| Solid | |||||||
| DC_T - 21.5_ | SDUCR/L06-2 | 0.375 | 0.750 | 0.375 | 6.00 | B-SDUCR2-S06M-S | B-SDUCL2-S06M-S |
| DC_T - 21.5_ | SDUCR/L08-2 | 0.500 | 0.874 | 0.437 | 6.00 | B-SDUCR2-S08M-S | B-SDUCL2-S08M-S |
| DC_T - 21.5_ | SDUCR/L10-2 | 0.625 | 1.000 | 0.500 | 8.00 | B-SDUCR2-S10R-S | B-SDUCL2-S10L-S |
| DC_T - 32.5_ | SDUCR/L12-3 | 0.750 | 1.124 | 0.562 | 10.00 | B-SDUCR3-S12S-S | B-SDUCL3-S12S-S |
| DC_T - 32.5_ | SDUCR/L16-3 | 1.000 | 1.500 | 0.750 | 12.00 | B-SDUCR3-S16T-S | B-SDUCL3-S16T-S |
| DC_T - 32.5_ | SDUCR/L20-3 | 1.250 | 1.750 | 0.875 | 14.00 | B-SDUCR3-S20U-S | B-SDUCL3-S20U-S |
| Coolant-Thru | |||||||
| DC_T - 21.5_ | SDUCR/L05-2 | 0.313 | 0.355 | 0.197 | 4.00 | B-SDUCR2-A05H-S | B-SDUCL2-A05H-S |
| DC_T - 21.5_ | SDUCR/L06-2 | 0.375 | 0.750 | 0.375 | 6.00 | B-SDUCR2-A06M-S | B-SDUCL2-A06M-S |
| DC_T - 21.5_ | SDUCR/L08-2 | 0.500 | 0.874 | 0.437 | 6.00 | B-SDUCR2-A08M-S | B-SDUCL2-A08M-S |
| DC_T - 21.5_ | SDUCR/L10-2 | 0.625 | 1.000 | 0.500 | 8.00 | B-SDUCR2-A10R-S | B-SDUCL2-A10R-S |
| DC_T - 32.5_ | SDUCR/L12-3 | 0.750 | 1.124 | 0.562 | 10.00 | B-SDUCR3-A12A-S | B-SDUCL3-A12A-S |
| DC_T - 32.5_ | SDUCR/L16-3 | 1.000 | 1.500 | 0.750 | 12.00 | B-SDUCR3-A16T-S | B-SDUCL3-A16T-S |
| DC_T - 32.5_ | SDUCR/L20-3 | 1.250 | 1.750 | 0.875 | 14.00 | B-SDUCR3-A20U-S | B-SDUCL3-A20U-S |

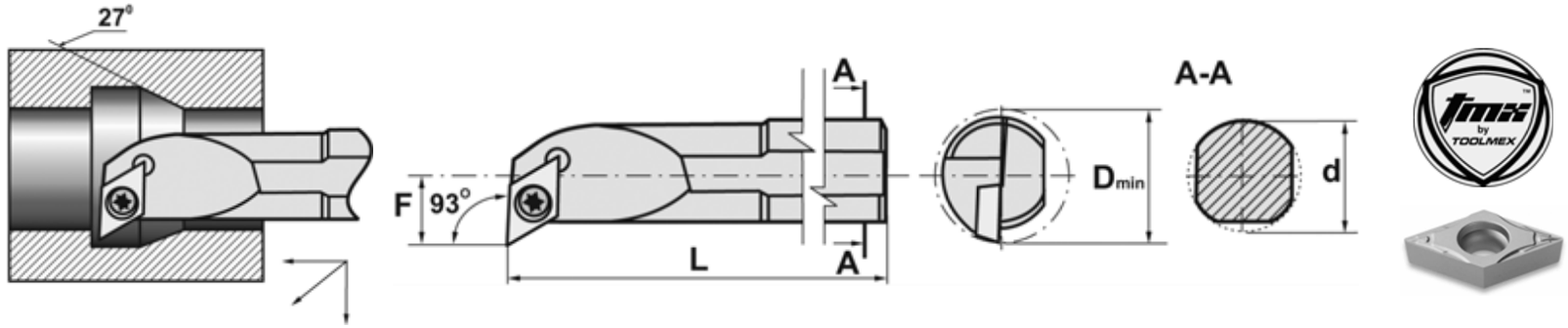

- Industry standard SDUCR type
- Uses DCMT or DCGT inserts
- 3° end cutting edge angle
- Shanks have locating flats for easy set-up
- Steel shank
| SPARE PARTS | |||||||||
| Uses Insert |
Style | Shank Size d |
Min Bore D |
OAL L |
F | Right Hand Part Number |
Left Hand Part Number |
Screw Part Number |
Hex/Torx Key Part Number |
| DC_T-21.5_ | SI-SDUCR/L06-2 | 3/8 | .625 | 6 | .375 | BI-6875-006R | BI-6875-006L | BI-6998-2506 | BI-6998-007 |
| SI-SDUCR/L08-2 | 1/2 | .780 | 6 | .437 | BI-6875-008R | BI-6875-008L | |||
| SI-SDUCR/L10-2 | 5/8 | .840 | 8 | .500 | BI-6875-010R | BI-6875-010L | |||
| DC_T-32.5_ | SI-SDUCR/L12-3 | 3/4 | 1.125 | 10 | .562 | BI-6875-012R | BI-6875-012L | BI-6998-4008T | BI-6998-015 |
| SI-SDUCR/L16-3 | 1 | 1.500 | 12 | .750 | BI-6875-016R | BI-6875-016L | |||
| SI-SDUCR/L20-3 | 1-1/4 | 1.750 | 14 | .875 | BI-6875-020R | BI-6875-020L | |||

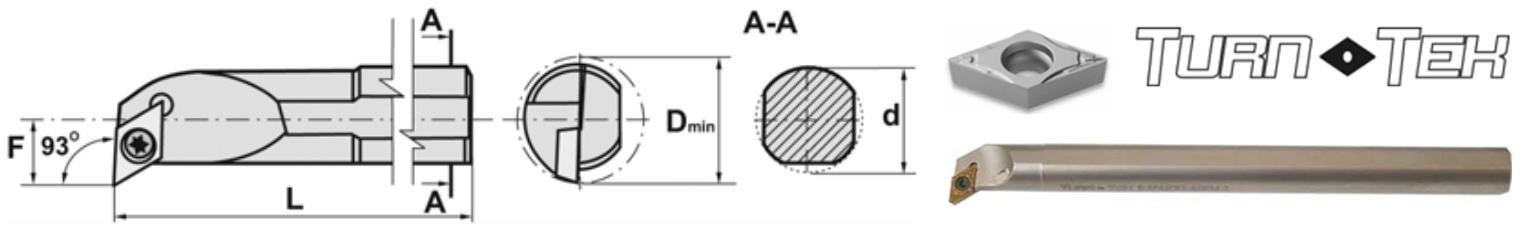

USING “DCMT/DCGT” INSERTS
Solid Carbide With Coolant Hole Prices are pulled from our database in real time. Press Add button to see product price.
| Accessories | |||||||
| Uses Insert |
Industry Reference |
Shank “D” |
Min Bore |
L | Part Number | Screw | Hex/Torx Key |
| DC_ _21.5_ | 06-SDUCR-2 | 0.375 | 0.600 | 5.00 | TO-6850438 | TO-CSTB25 | WIHA-37022 |
| 08-SDUCR-2 | 0.500 | 0.730 | 5.00 | TO-6850443 | TO-CSTB25 | WIHA-37022 | |
| 10-SDUCR-2 | 0.625 | 0.850 | 7.00 | TO-6850525 | TO-CSTB25 | WIHA-37022 | |
| DC_ _32.5_ | 12-SDUCR-3 | 0.750 | 0.980 | 7.00 | TO-6862409 | TO-CSTB4S | WIHA-37032 |
