SANDVIK Style Boring Bars - Min bore .500-1.000 - STFCR/STUCR Bars using TCMT (60° Triangle) Inserts

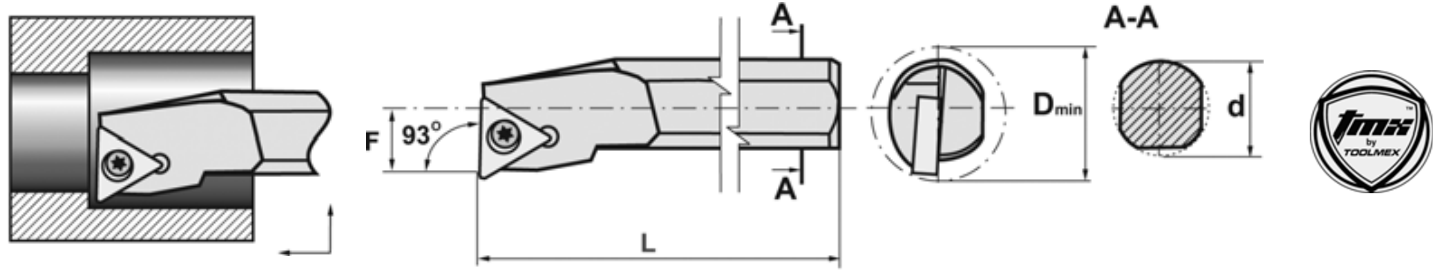

STUCR BORING BARS
USING TCMT/TCGT INSERTS

Industry standard STUCR/L type
STUCR: 3° lead angle, STFCR: 0°
Steel shank
Uses TCMT or TCGT inserts
Shanks have locating flats
3° end cutting edge angle

Prices are pulled from our database in real time. Press Add button to see product price.

Insert Series	Industry Reference	Shank Dia	Min Bore	F Dim	OAL	Right Hand Part Number	Left Hand Part Number
SOLID STFCR Series Boring Bars
TC_T-21.5_	06-STFCR/L-2	0.375	0.406	0.203	5.00	B-STFCR2-S06K-S	B-STFCL2-S06K-S
	08-STFCR/L-2	0.500	0.562	0.281	5.00	B-STFCR2-S08K-S	B-STFCL2-S08K-S
	10-STFCR/L-2	0.625	0.812	0.406	7.00	B-STFCR2-S10Q-S	B-STFCL2-S10Q-S
	12-STFCR/L-2	0.750	0.950	0.475	7.00	B-STFCR2-S12Q-S	B-STFCL2-S12Q-S
	12-STFCR/L-3	0.750	0.950	0.475	7.00	B-STFCR3-S12Q-S	B-STFCL3-S12Q-S
SOLID STUCR Series Boring Bars
TC_T-21.5_	06-STUCR/L-2	0.375	0.406	0.203	5.00	B-STUCR2-S06K-S	B-STUCL2-S06K-S
	08-STUCR/L-2	0.500	0.562	0.281	5.00	B-STUCR2-S08K-S	B-STUCL2-S08K-S
	10-STUCR/L-2	0.625	0.812	0.406	7.00	B-STUCR2-S10Q-S	B-STUCL2-S10Q-S
TC_T-32.5_	12-STUCR/L-3	0.750	1.000	0.500	7.00	B-STUCR3-S12Q-S	B-STUCL3-S12Q-S
COOLANT-THRU STFCR/STUCR Series Boring Bars
TC_T-21.5_	06-STFCR/L-2	0.375	0.406	0.203	5.00	B-STFCR2-A06K-S	B-STFCL2-A06K-S
	06-STUCR/L-2	0.375	0.406	0.203	5.00	B-STUCR2-A06K-S	B-STUCL2-A06K-S
	08-STFCR/L-2	0.500	0.562	0.281	5.00	B-STFCR2-A08K-S	B-STFCL2-A08K-S
TC_T-21.5_	08-STUCR/L-2	0.500	0.562	0.281	5.00	B-STUCR2-A08K-S	B-STUCL2-A08K-S
	10-STFCR/L-2	0.625	0.812	0.406	7.00	B-STFCR2-A10Q-S	B-STFCL2-A10Q-S
	10-STUCR/L-2	0.625	0.812	0.406	7.00	B-STUCR2-A10Q-S	B-STUCL2-A10Q-S
	12-STFCR/L-2	0.750	0.950	0.475	7.00	B-STFCR2-A12Q-S	B-STFCL2-A12Q-S
TC_T-32.5_	12-STFCR/L-3	0.750	1.000	0.500	7.00	B-STFCR3-A12Q-S	B-STFCL3-A12Q-S
TC_T-32.5_	12-STUCR/L-3	0.750	1.000	0.500	7.00	B-STUCR3-A12Q-S	B-STUCL3-A12Q-S

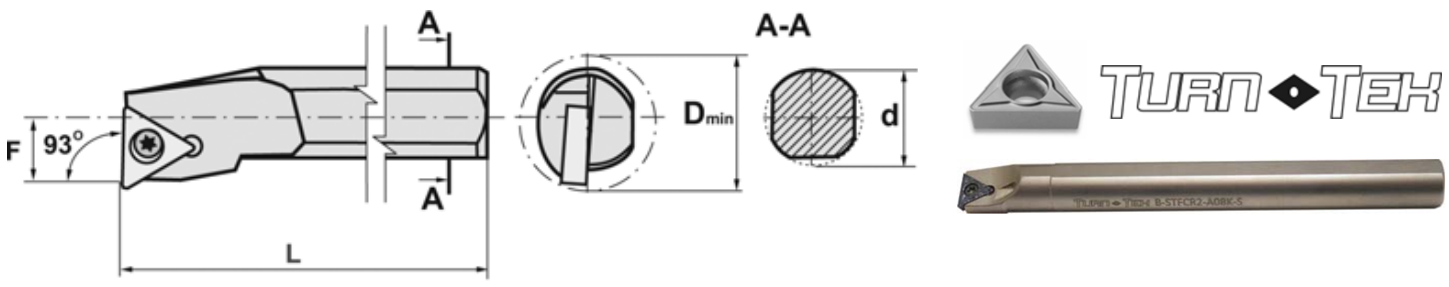

STUCR BORING BARS
USING TCMT/TCGT INSERTS

Industry standard STUCR/L type
Steel shank
Uses TCMT or TCGT inserts
Shanks have locating flats
3° end cutting edge angle

Prices are pulled from our database in real time. Press Add button to see product price.

								SPARE PARTS
Uses Insert	Style	Shank Size d	Min Bore D	OAL L	F	Right Hand Part Number	Left Hand Part Number	Screw Part Number	Hex/Torx Key Part Number
TC_T-21.5_	SI-STUCR06-2	3/8	.500	5	.208	BI-6884-006R	BI-6884-006L	BI-6998-2506	BI-6998-007
	SI-STUCR08-2	1/2	.590	6	.287	BI-6884-008R	BI-6884-008L
	SI-STUCR10-2	5/8	.750	8	.350	BI-6884-010R	BI-6884-010L
TC_T-32.5_	SI-STUCR12-3	3/4	.845	10	.422	BI-6884-012R	BI-6884-012L	BI-6998-4008T	BI-6998-015
	SI-STUCR16-3	1	1.115	12	.555	BI-6884-016R	BI-6884-016L
	SI-STUCR20-3	1-1/4	1.370	12	.682	BI-6884-020R	BI-6884-020L
	SI-STUCR24-3	1-1/2	1.680	12	.840	BI-6884-024R	BI-6884-024L

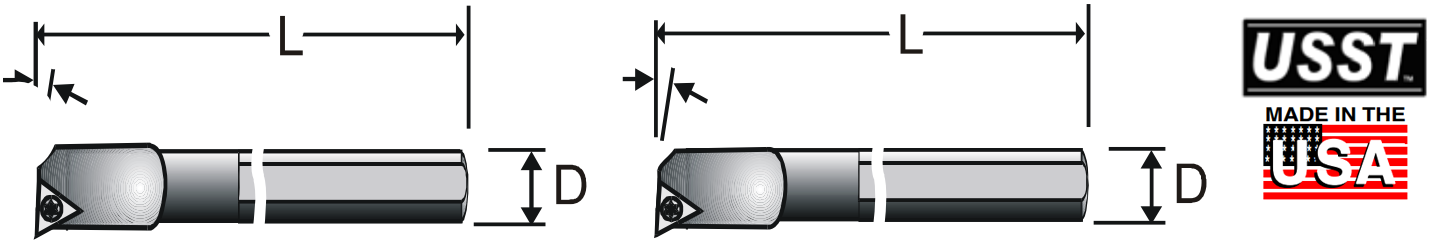

STFCR/STUCR BORING BARS
Heavy Metal & Carbide Shank

Industry standard STFCR/STUCR type
STUCR: 3° lead angle, STFCR: 0°
Uses TCMT/TCGT type inserts
Shanks have locating flats for easy set-up
Made in the USA

Prices are pulled from our database in real time. Press Add button to see product price.

			Heavy Metal-6xD			Carbide Shank-8xD
Insert	Industry Reference	Shank “D”	Min Bore	L	Part Number	Min Bore	L	Part Number	Screw	Wrench
TC_T 21.5_	_06-STFCR-2	0.375	0.425	4.0	BBS-3200R	0.500	6.0	BBS-5200R	SC-76	TX-207
	_08-STFCR-2	0.500	0.550	6.0	BBS-3210R	0.630	8.0	BBS-5210R
	_10-STFCR-2	0.625	0.675	6.0	BBS-3220R	0.810	8.0	BBS-5220R
	_12-STFCR-2	0.750	0.800	8.0	BBS-3230R	1.000	10.0	BBS-5230R
TC_T 32.5_	_12-STFCR-3	0.750	0.800	8.0	BBS-3240R	1.000	10.0	BBS-5240R	SC-77	TX-215
TC_T 21.5_	_06-STUCR-2	0.375	0.425	4.0	BBS-3250R	0.500	6.0	BBS-5250R	SC-76	TX-207
	_08-STUCR-2	0.500	0.550	6.0	BBS-3260R	0.630	8.0	BBS-5260R
	_10-STUCR-2	0.625	0.675	6.0	BBS-3270R	0.810	8.0	BBS-5270R
TC_T 32.5_	_12-STUCR-3	0.750	0.800	8.0	BBS-3290R	1.000	10.0	BBS-5290R	SC-77	TX-215
