SVUCR/L, SWUCR/L, CTFPR Boring Bars-TMX®

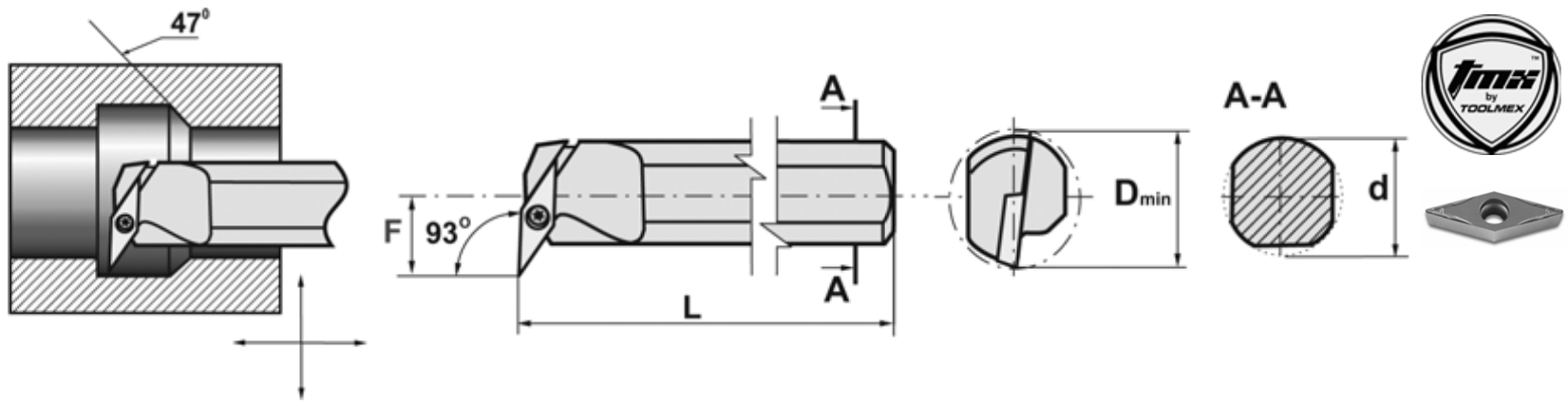

SVUCR/L BORING BARS

Industry standard SVUCR/L type
Steel shank
Uses VCMT or VCGT inserts
Shanks have locating flats
3° end cutting edge angle

Prices are pulled from our database in real time. Press Add button to see product price.

								SPARE PARTS
Uses Insert	Style	Shank Size d	Min Bore D	OAL L	F	Right Hand Part Number	Left Hand Part Number	Screw Part Number	Hex/Torx Key Part Number
VC_T-22_	SI-SVUCR/L12-2	3/4	1.125	10	.625	BI-6887-122R	BI-6887-122L	BI-6998-2506	BI-6998-007
VC_T-22_	SI-SVUCR/L16-2	1	1.500	12	.750	BI-6887-162R	BI-6887-162L	BI-6998-2506	BI-6998-007
VC_T-33_	SI-SVUCR/L16-3	1	2	12	.750	BI-6887-163R	BI-6887-163L	BI-6998-3509	BI-6998-150
VC_T-33_	SI-SVUCR/L20-3	1-1/4	2.250	14	1	BI-6887-203R	BI-6887-203L	BI-6998-3509	BI-6998-150

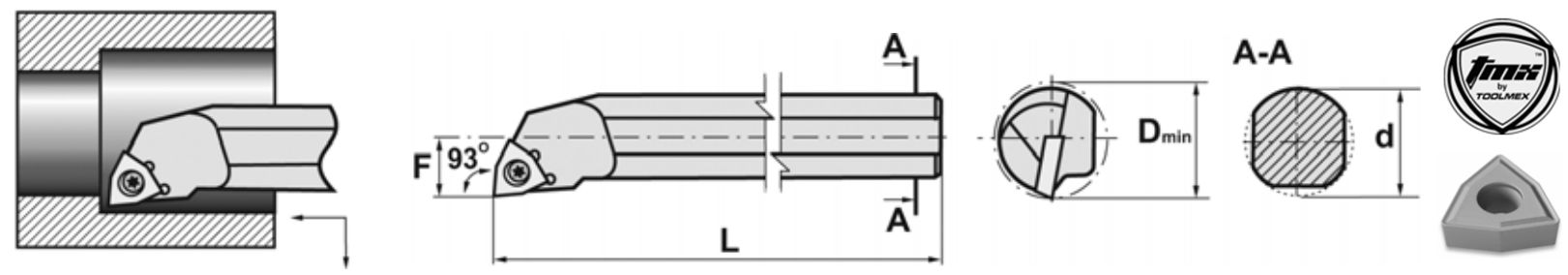

SWUCR/L BORING BARS

Industry standard SWUCR/L type
Steel shank
Uses WCMT or WCGT inserts
Shanks have locating flats
3° end cutting edge angle

Prices are pulled from our database in real time. Press Add button to see product price.

								SPARE PARTS
Uses Insert	Style	Shank Size d	Min Bore D	OAL L	F	Right Hand Part Number	Left Hand Part Number	Screw Part Number	Hex/Torx Key Part Number
WC_T 32.5_	SI-SWUCR/L08-3	1/2	.625	6	.311	BI-6889-083R	BI-6889-083L	BI-6998-4008T	BI-6998-015
	SI-SWUCR/L10-3	5/8	.812	8	.405	BI-6889-103R	BI-6889-103L
	SI-SWUCR/L12-3	3/4	1	10	.500	BI-6889-123R	BI-6889-123L

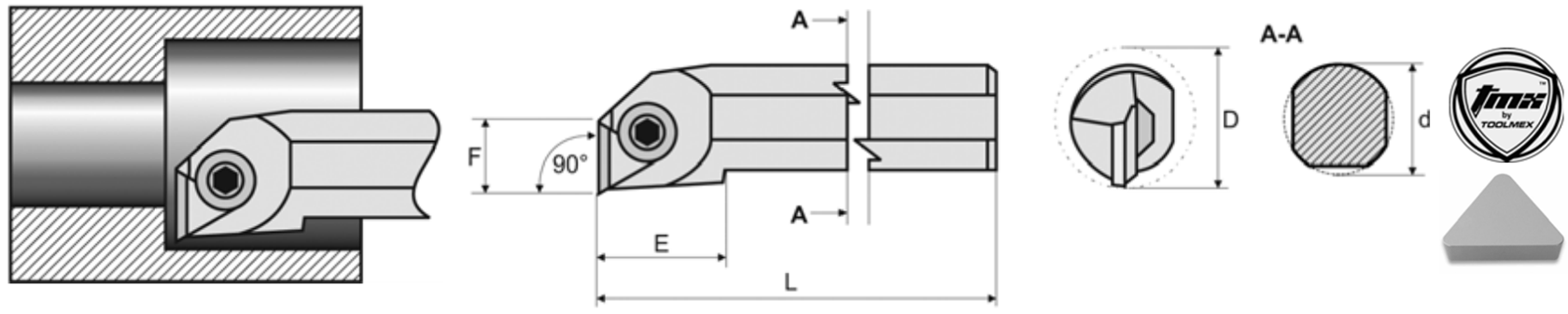

CTFPR BORING BARS

Industry standard CTFPR type
Steel shank
Uses TPU inserts
Shanks have locating flats
3° end cutting edge angle

Prices are pulled from our database in real time. Press Add button to see product price.

Style	Inserts	Shank Size d	Min Bore D	OAL L	C	E	Right Hand Part Number
SI-CTFPR	TPU-21_	5/8	0.827	8.250	.709	1.181	BI-6939-172
	TPU-32_	3/4	1.063	9.875	.925	1.378	BI-6939-173
	TPU-32_	1	1.339	11.750	1.201	1.575	BI-6939-174
	TPU-32_	1-1/4	1.693	14.0	1.516	1.772	BI-6939-175
	TPU-32_	1-1/2	2.086	15.0	1.889	1.968	BI-6939-176
	TPU-43_	2	2.559	16.0	2.362	1.968	BI-6939-178

REPLACEMENT PARTS FOR CTFPR BORING BARS

Prices are pulled from our database in real time. Press Add button to see product price.

Inserts	For Boring Bar Part Number	Shim	Shim Screw	Lock Screw	Hex Key
TPU-21_	BI-6939-172	-	-	BI-6999-265	BI-6999-583
TPU-32_	BI-6939-173	-	-	BI-6999-271	BI-6999-584
TPU-32_	BI-6939-174	-	-	BI-6999-271	BI-6999-584
TPU-32_	BI-6939-175	BI-6999-391	BI-6999-400	BI-6999-271	BI-6999-584
TPU-32_	BI-6939-176	BI-6999-394	BI-6999-400	BI-6999-275	BI-6999-582
TPU-43_	BI-6939-178	BI-6999-394	BI-6999-400	BI-6999-275	BI-6999-582
