MITSUBISHI Style Boring Bars - Min. Bore .228-1.000 - SWLOR Bars & WCMT (80° Trigon) Inserts
Using “WCMT” Inserts
- Uses WCMT type inserts
- Shanks have locating flats for easy set-up
- Available in steel, heavy metal or carbide shanks
- See following page for inserts
- Made in the USA

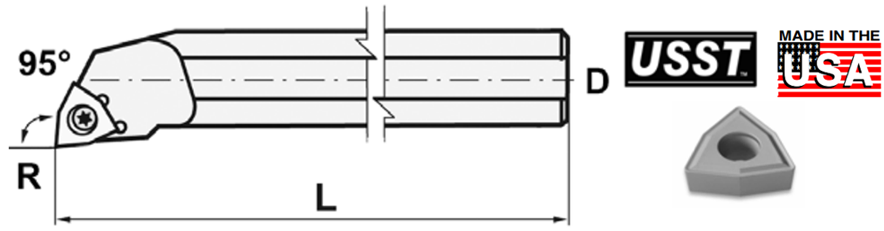

| Steel Shank-4xD | Heavy Metal-6xD | Carbide Shank-8xD | |||||||||||
| Insert | Reference Number |
Shank “D” |
Min Bore |
L | Part Number | Min Bore |
L | Part Number | Min Bore |
L | Part Number | Screw | Torx Wrench |
| WCMT -0201 |
_SWLOR-055 | 0.188 | 0.228 | 5 | BBM-1000R | 0.228 | 4 | BBM-3000R | 0.228 | 5 | BBM-5000R | SC-22 | TX-206 (T6) |
| _SWLOR-065 | 0.250 | 0.312 | BBM-1010R-E | 0.300 | BBM-3010R | 0.300 | BBM-5010R | SC-21 | |||||
| _SWL0502RS | 0.312 | 0.228 | BBM-1020R-E | 0.362 | BBM-3020R | 0.362 | BBM-5020R | SC-22 | |||||
| WCMT -S032 |
_SWLOR-066 | 0.312 | 0.375 | 5 | BBM-1030R-E | 0.362 | 4 | BBM-3030R | 0.375 | 5 | BBM-5030R | SC-21 | |
| WCMT -0402 |
_SWL0504R | 0.312 | 0.406 | 5 | BBM-1040R-E | 0.362 | 4 | BBM-3040R | 0.406 | 5 | BBM-5040R | SC-23 | TX-208 (T8) |
| _SWLOR-062 | 0.375 | 0.500 | BBM-1050R-E | 0.425 | BBM-3050R | 0.500 | BBM-5050R | ||||||
| _SWLOR-070 | 0.375 | 0.438 | BBM-1060R-E | 0.425 | BBM-3060R | 0.438 | BBM-5060R | ||||||
| _SWLOR-082 | 0.500 | 0.625 | BBM-1070R-E | 0.550 | 6 | BBM-3070R | 0.625 | 6 | BBM-5070R | ||||
| WCMT -06T3 |
_SWLOR-103 | 0.625 | 0.750 | 7 | BBM-1080R-E | 0.675 | 6 | BBM-3080R | 0.750 | 6 | BBM-5080R | SC-24 | TX-215 (T15) |
| _SWLOR-123 | 0.750 | 1.000 | BBM-1090R-E | 0.800 | 8 | BBM-3090R | 1.000 | 9 | BBM-5090R | ||||
GRADE US-735: for continuous & interrupted cutting of steels & stainless steels.
TiAlN Coated: For high temp alloys and stainless steel. Prices are pulled from our database in real time. Press Add button to see product price.

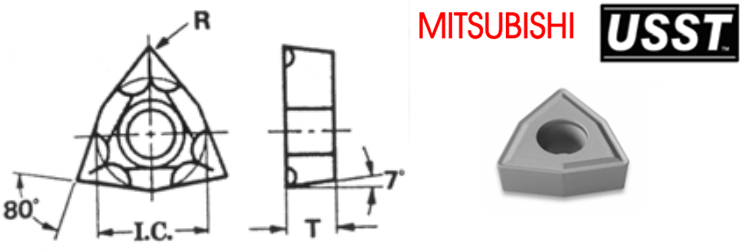

| Bars Using | IC | T | R | Reference Number |
Grade | Part Number | Brand |
| WCMT/WCGT -0201 | 5/32 .156 | 1/16 | .008 (1/128) | WCMT020102 | US-735 | MB-501 | Mitsubishi |
| WCGT020102 | TiAlN | US-901 | USST | ||||
| .015 (1/64) | WCMT020104 | US-735 | MB-511 | Mitsubishi | |||
| WCGT020104 | TiAlN | US-902 | USST | ||||
| WCMT/WCGT -S302 | 3/16 .187 | 3/32 | .008 (1/128) | WCMTS30202 | US-735 | MB-521 | Mitsubishi |
| WCGTS30202 | TiAlN | US-903 | USST | ||||
| .015 (1/64) | WCMTS30204 | US-735 | MB-531 | Mitsubishi | |||
| WCGTS30204 | TiAlN | US-904 | USST | ||||
| WCMT/WCGT -0402 | 1/4 .250 | 3/32 | .008 (1/128) | WCMT040202 | US-735 | MB-541 | Mitsubishi |
| WCGT040202 | TiAlN | US-905 | USST | ||||
| .015 (1/64) | WCMT040204 | US-735 | MB-551 | Mitsubishi | |||
| WCGT040204 | TiAlN | US-906 | USST | ||||
| WCMT/WCGT -06T3 | 3/8 .375 | 5/32 | .015 (1/64) | WCMT06T304 | US-735 | MB-561 | Mitsubishi |
| WCGT06T304 | TiAlN | US-907 | USST | ||||
| .032 (1/32) | WCMT06T308 | US-735 | MB-571 | Mitsubishi | |||
| WCGT06T308 | TiAlN | US-908 | USST |
