Partial Profile 55° Inserts

PARTIAL PROFILE 55° INSERTS
How To Order:

Pick the required insert from table below eg: T-C11ERA55
Pick a Carbide Grade from the Carmex Grade Information table
- eg. B4 for superalloys and stainless steels
Order Part Number T-C11ERA55B4

CARMEX GRADE INFORMATION

Carmex Grade	Exact Tooling Grade	Carbide ANSI	Coating	Materials
P25C	P5	C5	TIN	Hard Steels
MXC	M2	C2-C3	TIN	Soft Steels, Stainless Steels, Cast Iron
BMA	B4	C3-C4	TIALN	Superalloys, Stainless Steels
K20	K2	C2	UNCOATED	Aluminum, Non Ferrous

Prices are pulled from our database in real time. Press Add button to see product price.
P25C (Carmex Grade) / P5 (Exact Tooling Grade) Inserts for Hard Steels

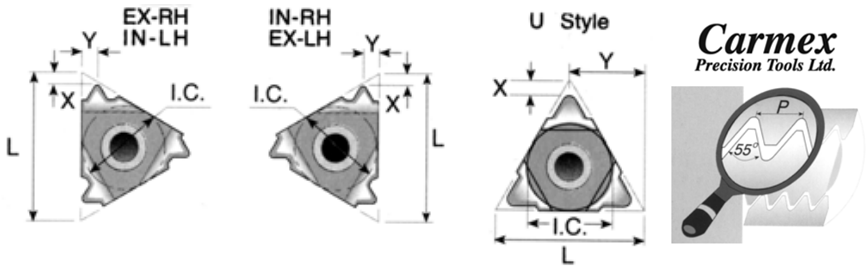

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA55P5	T-C06ILA55P5
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA55P5	T-C08ILA55P5
8U	3/16U	14-11	1.75-2.0	.04	.16	-	-	T-C08IRLU55P5	T-C08IRLU55P5
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA55P5	T-C11ELA55P5	T-C11IRA55P5	T-C11ILA55P5
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA55P5	T-C16ELA55P5	T-C16IRA55P5	T-C16ILA55P5
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG55P5	T-C16ELG55P5	T-C16IRG55P5	T-C16ILG55P5
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG55P5	T-C16ELAG55P5	T-C16IRAG55P5	T-C16ILAG55P5
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN55P5	T-C22ELN55P5	T-C22IRN55P5	T-C22ILN55P5
22U	1/2U	4.5- 3.25	5.5 -8.0	.04	.43	T-C22UEIRLU55P5	T-C22UEIRLU55P5	T-C22UEIRLU55P5	T-C22UEIRLU55P5
27	5/8	4.5- 4	5.5 -6.0	.08	.11	T-C27ERQ55P5	T-C27ELQ55P5	T-C27IRQ55P5	T-C27ILQ55P5
27U	5/8U	4- 2.75	6.5 -9.0	.05	.54	T-C27UEIRLU55P5	T-C27UEIRLU55P5	T-C27UEIRLU55P5	T-C27UEIRLU55P5

Partial Profile 55° W/ Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG55P5	T-C16ELBG55P5	T-C16IRBG55P5	T-C16ILBG55P5
16	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG55P5	T-C16ELBAG55P5	T-C16IRBAG55P5	T-C16ILBAG55P5

MXC (Carmex Grade) / M2 (Exact Tooling Grade) Inserts for Soft Steels, Stainless Steels, Cast Iron

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA55M2	T-C06ILA55M2
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA55M2	T-C08ILA55M2
8U	3/16U	14-11	1.75-2.0	.04	.16	-	-	T-C08IRLU55M2	T-C08IRLU55M2
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA55M2	T-C11ELA55M2	T-C11IRA55M2	T-C11ILA55M2
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA55M2	T-C16ELA55M2	T-C16IRA55M2	T-C16ILA55M2
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG55M2	T-C16ELG55M2	T-C16IRG55M2	T-C16ILG55M2
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG55M2	T-C16ELAG55M2	T-C16IRAG55M2	T-C16ILAG55M2
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN55M2	T-C22ELN55M2	T-C22IRN55M2	T-C22ILN55M2
22U	1/2U	4.5- 3.25	5.5 -8.0	.04	.43	T-C22UEIRLU55M2	T-C22UEIRLU55M2	T-C22UEIRLU55M2	T-C22UEIRLU55M2
27	5/8	4.5- 4	5.5 -6.0	.08	.11	T-C27ERQ55M2	T-C27ELQ55M2	T-C27IRQ55M2	T-C27ILQ55M2
27U	5/8U	4- 2.75	6.5 -9.0	.05	.54	T-C27UEIRLU55M2	T-C27UEIRLU55M2	T-C27UEIRLU55M2	T-C27UEIRLU55M2

Partial Profile 55° W/ Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG55M2	T-C16ELBG55M2	T-C16IRBG55M2	T-C16ILBG55M2
16	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG55M2	T-C16ELBAG55M2	T-C16IRBAG55M2	T-C16ILBAG55M2

BMA (Carmex Grade) / B4 (Exact Tooling Grade) Inserts for Superalloys, Stainless Steels

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA55B4	T-C06ILA55B4
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA55B4	T-C08ILA55B4
8U	3/16U	14-11	1.75-2.0	.04	.16	-	-	T-C08IRLU55B4	T-C08IRLU55B4
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA55B4	T-C11ELA55B4	T-C11IRA55B4	T-C11ILA55B4
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA55B4	T-C16ELA55B4	T-C16IRA55B4	T-C16ILA55B4
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG55B4	T-C16ELG55B4	T-C16IRG55B4	T-C16ILG55B4
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG55B4	T-C16ELAG55B4	T-C16IRAG55B4	T-C16ILAG55B4
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN55B4	T-C22ELN55B4	T-C22IRN55B4	T-C22ILN55B4
22U	1/2U	4.5- 3.25	5.5 -8.0	.04	.43	T-C22UEIRLU55B4	T-C22UEIRLU55B4	T-C22UEIRLU55B4	T-C22UEIRLU55B4
27	5/8	4.5- 4	5.5 -6.0	.08	.11	T-C27ERQ55B4	T-C27ELQ55B4	T-C27IRQ55B4	T-C27ILQ55B4
27U	5/8U	4- 2.75	6.5 -9.0	.05	.54	T-C27UEIRLU55B4	T-C27UEIRLU55B4	T-C27UEIRLU55B4	T-C27UEIRLU55B4

Partial Profile 55° W/ Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG55B4	T-C16ELBG55B4	T-C16IRBG55B4	T-C16ILBG55B4
16	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG55B4	T-C16ELBAG55B4	T-C16IRBAG55B4	T-C16ILBAG55B4

K20 (Carmex Grade) / K2 (Exact Tooling Grade) Inserts for Aluminum, Non Ferrous

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA55K2	T-C06ILA55K2
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA55K2	T-C08ILA55K2
8U	3/16U	14-11	1.75-2.0	.04	.16	-	-	T-C08IRLU55K2	T-C08IRLU55K2
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA55K2	T-C11ELA55K2	T-C11IRA55K2	T-C11ILA55K2
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA55K2	T-C16ELA55K2	T-C16IRA55K2	T-C16ILA55K2
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG55K2	T-C16ELG55K2	T-C16IRG55K2	T-C16ILG55K2
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG55K2	T-C16ELAG55K2	T-C16IRAG55K2	T-C16ILAG55K2
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN55K2	T-C22ELN55K2	T-C22IRN55K2	T-C22ILN55K2
22U	1/2U	4.5- 3.25	5.5 -8.0	.04	.43	T-C22UEIRLU55K2	T-C22UEIRLU55K2	T-C22UEIRLU55K2	T-C22UEIRLU55K2
27	5/8	4.5- 4	5.5 -6.0	.08	.11	T-C27ERQ55K2	T-C27ELQ55K2	T-C27IRQ55K2	T-C27ILQ55K2
27U	5/8U	4- 2.75	6.5 -9.0	.05	.54	T-C27UEIRLU55K2	T-C27UEIRLU55K2	T-C27UEIRLU55K2	T-C27UEIRLU55K2

Partial Profile 55° W/ Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG55K2	T-C16ELBG55K2	T-C16IRBG55K2	T-C16ILBG55K2
16	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG55K2	T-C16ELBAG55K2	T-C16IRBAG55K2	T-C16ILBAG55K2
