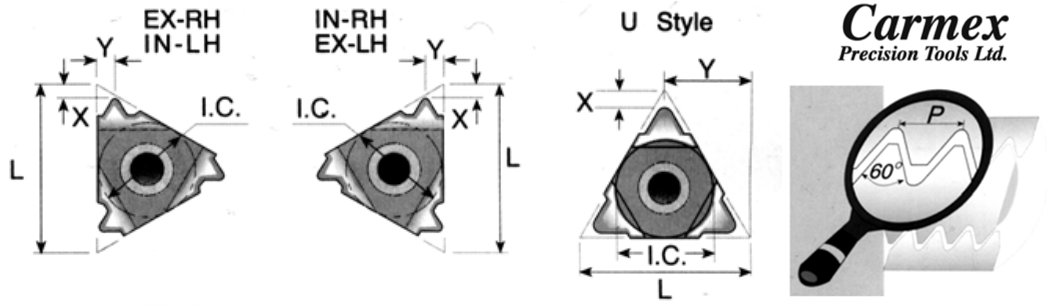

Partial Profile 60° Inserts

PARTIAL PROFILE 60° INSERTS
For Unified (UN-American) and
Metric (ISO) Thread Forms
How To Order:

Pick the required insert from table below eg: T-C11ERA60
Pick a Carbide Grade from the Carmex Grade Information table
- eg. B4 for superalloys and stainless steels
Order Part Number T-C11ERA60B4

CARMEX GRADE INFORMATION

Carmex Grade	Exact Tooling Grade	Carbide ANSI	Coating	Materials
P25C	P5	C5	TIN	Hard Steels
MXC	M2	C2-C3	TIN	Soft Steels, Stainless Steels, Cast Iron
BMA	B4	C3-C4	TIALN	Superalloys, Stainless Steels
K20	K2	C2	UNCOATED	Aluminum, Non Ferrous

Prices are pulled from our database in real time. Press Add button to see product price.
P25C (Carmex Grade) / P5 (Exact Tooling Grade) Inserts for Hard Steels

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA60P5	T-C06ILA60P5
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA60P5	T-C08ILA60P5
8U	3/16U	14-11	1.75-2.0	.03	.16	-	-	T-C08IRLU60P5	T-C08IRLU60P5
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA60P5	T-C11ELA60P5	T-C11IRA60P5	T-C11ILA60P5
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA60P5	T-C16ELA60P5	T-C16IRA60P5	T-C16ILA60P5
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG60P5	T-C16ELG60P5	T-C16IRG60P5	T-C16ILG60P5
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG60P5	T-C16ELAG60P5	T-C16IRAG60P5	T-C16ILAG60P5
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN60P5	T-C22ELN60P5	T-C22IRN60P5	T-C22ILN60P5
22U	1/2U	4.5- 3.25	5.5 -8.0	.02	.43	T-C22UEIRLU60P5	T-C22UEIRLU60P5	T-C22UEIRLU60P5	T-C22UEIRLU60P5
27	5/8	4.5- 4	5.5 -6.0	.08	.12	T-C27ERQ60P5	T-C27ELQ60P5	T-C27IRQ60P5	T-C27ILQ60P5
27U	5/8U	4- 2.75	6.5 -9.0	.04	.54	T-C27UEIRLU60P5	T-C27UEIRLU60P5	T-C27UEIRLU60P5	T-C27UEIRLU60P5

Partial Profile 60° - W/ Sintered Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERBA60P5	T-C16ELBA60P5	T-C16IRBA60P5	T-C16ILBA60P5
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG60P5	T-C16ELBG60P5	T-C16IRBG60P5	T-C16ILBG60P5
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG60P5	T-C16ELBAG60P5	T-C16IRBAG60P5	T-C16ILBAG60P5

MXC (Carmex Grade) / M2 (Exact Tooling Grade) Inserts for Soft Steels, Stainless Steels, Cast Iron

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA60M2	T-C06ILA60M2
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA60M2	T-C08ILA60M2
8U	3/16U	14-11	1.75-2.0	.03	.16	-	-	T-C08IRLU60M2	T-C08IRLU60M2
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA60M2	T-C11ELA60M2	T-C11IRA60M2	T-C11ILA60M2
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA60M2	T-C16ELA60M2	T-C16IRA60M2	T-C16ILA60M2
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG60M2	T-C16ELG60M2	T-C16IRG60M2	T-C16ILG60M2
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG60M2	T-C16ELAG60M2	T-C16IRAG60M2	T-C16ILAG60M2
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN60M2	T-C22ELN60M2	T-C22IRN60M2	T-C22ILN60M2
22U	1/2U	4.5- 3.25	5.5 -8.0	.02	.43	T-C22UEIRLU60M2	T-C22UEIRLU60M2	T-C22UEIRLU60M2	T-C22UEIRLU60M2
27	5/8	4.5- 4	5.5 -6.0	.08	.12	T-C27ERQ60M2	T-C27ELQ60M2	T-C27IRQ60M2	T-C27ILQ60M2
27U	5/8U	4- 2.75	6.5 -9.0	.04	.54	T-C27UEIRLU60M2	T-C27UEIRLU60M2	T-C27UEIRLU60M2	T-C27UEIRLU60M2

Partial Profile 60° - W/ Sintered Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERBA60M2	T-C16ELBA60M2	T-C16IRBA60M2	T-C16ILBA60M2
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG60M2	T-C16ELBG60M2	T-C16IRBG60M2	T-C16ILBG60M2
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG60M2	T-C16ELBAG60M2	T-C16IRBAG60M2	T-C16ILBAG60M2

BMA (Carmex Grade) / B4 (Exact Tooling Grade) Inserts for Superalloys, Stainless Steels

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA60B4	T-C06ILA60B4
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA60B4	T-C08ILA60B4
8U	3/16U	14-11	1.75-2.0	.03	.16	-	-	T-C08IRLU60B4	T-C08IRLU60B4
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA60B4	T-C11ELA60B4	T-C11IRA60B4	T-C11ILA60B4
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA60B4	T-C16ELA60B4	T-C16IRA60B4	T-C16ILA60B4
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG60B4	T-C16ELG60B4	T-C16IRG60B4	T-C16ILG60B4
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG60B4	T-C16ELAG60B4	T-C16IRAG60B4	T-C16ILAG60B4
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN60B4	T-C22ELN60B4	T-C22IRN60B4	T-C22ILN60B4
22U	1/2U	4.5- 3.25	5.5 -8.0	.02	.43	T-C22UEIRLU60B4	T-C22UEIRLU60B4	T-C22UEIRLU60B4	T-C22UEIRLU60B4
27	5/8	4.5- 4	5.5 -6.0	.08	.12	T-C27ERQ60B4	T-C27ELQ60B4	T-C27IRQ60B4	T-C27ILQ60B4
27U	5/8U	4- 2.75	6.5 -9.0	.04	.54	T-C27UEIRLU60B4	T-C27UEIRLU60B4	T-C27UEIRLU60B4	T-C27UEIRLU60B4

Partial Profile 60° - W/ Sintered Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERBA60B4	T-C16ELBA60B4	T-C16IRBA60B4	T-C16ILBA60B4
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG60B4	T-C16ELBG60B4	T-C16IRBG60B4	T-C16ILBG60B4
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG60B4	T-C16ELBAG60B4	T-C16IRBAG60B4	T-C16ILBAG60B4

K20 (Carmex Grade) / K2 (Exact Tooling Grade) Inserts for Aluminum, Non Ferrous

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	48-20	0.5 -1.25	.02	.02	-	-	T-C06IRA60K2	T-C06ILA60K2
8	3/16	48-16	0.5 -1.5	.02	.03	-	-	T-C08IRA60K2	T-C08ILA60K2
8U	3/16U	14-11	1.75-2.0	.03	.16	-	-	T-C08IRLU60K2	T-C08IRLU60K2
11	1/4	48-16	0.5 -1.5	.03	.04	T-C11ERA60K2	T-C11ELA60K2	T-C11IRA60K2	T-C11ILA60K2
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERA60K2	T-C16ELA60K2	T-C16IRA60K2	T-C16ILA60K2
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERG60K2	T-C16ELG60K2	T-C16IRG60K2	T-C16ILG60K2
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERAG60K2	T-C16ELAG60K2	T-C16IRAG60K2	T-C16ILAG60K2
22	1/2	7- 5	3.5 -5.0	.07	.10	T-C22ERN60K2	T-C22ELN60K2	T-C22IRN60K2	T-C22ILN60K2
22U	1/2U	4.5- 3.25	5.5 -8.0	.02	.43	T-C22UEIRLU60K2	T-C22UEIRLU60K2	T-C22UEIRLU60K2	T-C22UEIRLU60K2
27	5/8	4.5- 4	5.5 -6.0	.08	.12	T-C27ERQ60K2	T-C27ELQ60K2	T-C27IRQ60K2	T-C27ILQ60K2
27U	5/8U	4- 2.75	6.5 -9.0	.04	.54	T-C27UEIRLU60K2	T-C27UEIRLU60K2	T-C27UEIRLU60K2	T-C27UEIRLU60K2

Partial Profile 60° - W/ Sintered Chipbreaker

		Pitch Range				EXTERNAL		INTERNAL
Insert Series	I.C.	TPI	MM	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	48-16	0.5 -1.5	.03	.04	T-C16ERBA60K2	T-C16ELBA60K2	T-C16IRBA60K2	T-C16ILBA60K2
	3/8	14- 8	1.75-3.0	.05	.07	T-C16ERBG60K2	T-C16ELBG60K2	T-C16IRBG60K2	T-C16ILBG60K2
	3/8	48- 8	0.5 -3.0	.05	.07	T-C16ERBAG60K2	T-C16ELBAG60K2	T-C16IRBAG60K2	T-C16ILBAG60K2
