BORING BARS FOR LAYDOWN INTERNAL THREADING

BORING BARS FOR LAYDOWN INTERNAL THREADING

Prices are pulled from our database in real time. Press Add button to see product price.

										INTERNAL

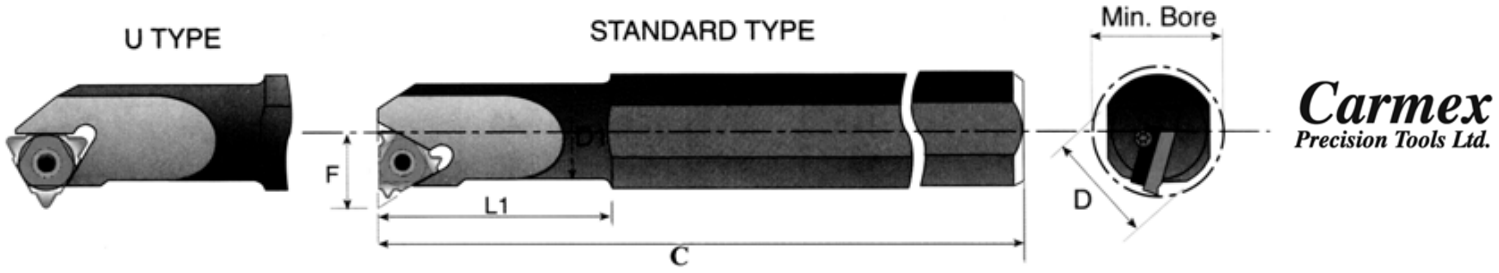

HOLDER SERIES	Min Bore in.	SHANK	Shank D in.	D1 in.	C (OAL) in.	L1 in.	F in.	ANVIL USED	COOLANT THROUGH	Right Handed Part Number	Left Handed Part Number
6	0.240	Steel	0.500	0.200	4.000	0.470	0.170	NO	NO	T-CMSIR0205H06	T-CMSIL0205H06
8	0.310	Steel	0.620	0.260	5.000	0.700	0.210	NO	NO	T-CMSIR0265K08	T-CMSIL0265K08
8U	0.350	Steel	0.620	0.290	5.000	0.830	0.260	NO	NO	T-CMSIR0310K08U	T-CMSIL0310K08U
11	0.470	Steel	0.380	0.380	4.000	-	0.280	NO	NO	T-CMSIR0375H11	T-CMSIL0375H11
	0.470	Steel	0.620	0.380	5.000	1.000	0.280	NO	NO	T-CMSIR0375K11	T-CMSIL0375K11
	0.470	Steel	0.620	0.380	5.000	0.980	0.280	YES	YES	T-CMSIR0375K11B	T-CMSIL0375K11B
	0.580	Steel	0.620	0.500	5.500	1.250	0.340	NO	NO	T-CMSIR0500L11	T-CMSIL0500L11
	0.580	Carbide	0.500	0.500	7.000	-	0.340	NO	YES	T-CMSIR0500P11C	T-CMSIL0500P11C
16	0.640	Steel	0.620	0.500	6.000	1.250	0.390	NO	NO	T-CMSIR0500M16	T-CMSIL0500M16
	0.640	Steel	0.620	0.500	6.000	1.260	0.390	YES	YES	T-CMSIR0500M16B	T-CMSIL0500M16B
	0.750	Steel	0.750	0.620	7.000	1.570	0.450	NO	NO	T-CMSIR0625P16	T-CMSIL0625P16
	0.750	Steel	0.750	0.630	7.000	1.570	0.450	YES	YES	T-CMSIR0625P16B	T-CMSIL0625P16B
	0.900	Steel	0.750	0.750	7.000	-	0.510	YES	NO	T-CMSIR0750P16	T-CMSIL0750P16
	0.900	Steel	0.750	0.750	7.000	-	0.900	YES	YES	T-CMSIR0750P16B	T-CMSIL0750P16B
	1.160	Steel	1.000	1.000	8.000	-	0.650	YES	NO	T-CMSIR1000R16	T-CMSIL1000R16
	1.160	Steel	1.000	0.980	8.000	-	0.650	YES	YES	T-CMSIR1000R16B	T-CMSIL1000R16B
	1.400	Steel	1.250	1.250	10.000	-	0.770	YES	NO	T-CMSIR1250S16	T-CMSIL1250S16
	1.650	Steel	1.500	1.500	12.000	-	0.900	YES	NO	T-CMSIR1500T16	T-CMSIL1500T16
22	0.900	Steel	0.750	0.750	7.000	-	0.590	NO	NO	T-CMSIR0750P22	T-CMSIL0750P22
	1.160	Steel	1.000	1.000	8.000	-	0.710	YES	NO	T-CMSIR1000R22	T-CMSIL1000R22
	1.500	Steel	1.250	1.250	10.000	-	0.850	YES	NO	T-CMSIR1250S22	T-CMSIL1250S22
	1.750	Steel	1.500	1.500	12.000	-	0.980	YES	NO	T-CMSIR1500T22	T-CMSIL1500T22
22u	1.500	Steel	1.250	1.250	10.000	-	0.950	YES	NO	T-CMSIR1250S22U	T-CMSIL1250S22U
22u	1.750	Steel	1.500	1.500	12.000	-	1.080	YES	NO	T-CMSIR1500T22U	T-CMSIL1500T22U
27	1.560	Steel	1.250	1.250	10.000	-	0.880	YES	NO	T-CMSIR1250S27	T-CMSIL1250S27
27u	1.800	Steel	1.500	1.500	12.000	-	1.000	YES	NO	T-CMSIR1500T27	T-CMSIL1500T27
	2.300	Steel	2.000	2.000	14.000	-	1.250	YES	NO	T-CMSIR2000U27	T-CMSIL2000U27
	1.560	Steel	1.250	1.250	10.000	-	1.000	YES	NO	T-CMSIR1250S27U	T-CMSIL1250S27U
	1.800	Steel	1.500	1.500	12.000	-	1.130	YES	NO	T-CMSIR1500T27U	T-CMSIL1500T27U
	2.300	Steel	2.000	2.000	14.000	-	1.370	YES	NO	T-CMSIR2000U27U	T-CMSIL2000U27U
	2.800	Steel	2.500	2.500	16.000	-	1.610	YES	NO	T-CMSIR2500V27U	T-CMSIL2500V27U
33u	2.500	Steel	2.000	2.000	14.000	-	1.500	YES	NO	T-CMSIR2000U33U	T-CMSIL2000U33U
Important Notes: Use Internal Right Handed Holders With Internal Right Handed Laydown Inserts Of The Same Insert Series Only. Similarly For Left Handed Holders And Inserts. Do Not Interchange Insert Series Or Insert Hands.
