Carmex Grade K20 Uncoated for Aluminums, Non Ferrous

UN FULL PROFILE INSERTS
For American Unified 60° Threads
ANSI B1.1:74

Prices are pulled from our database in real time. Press Add button to see product price.

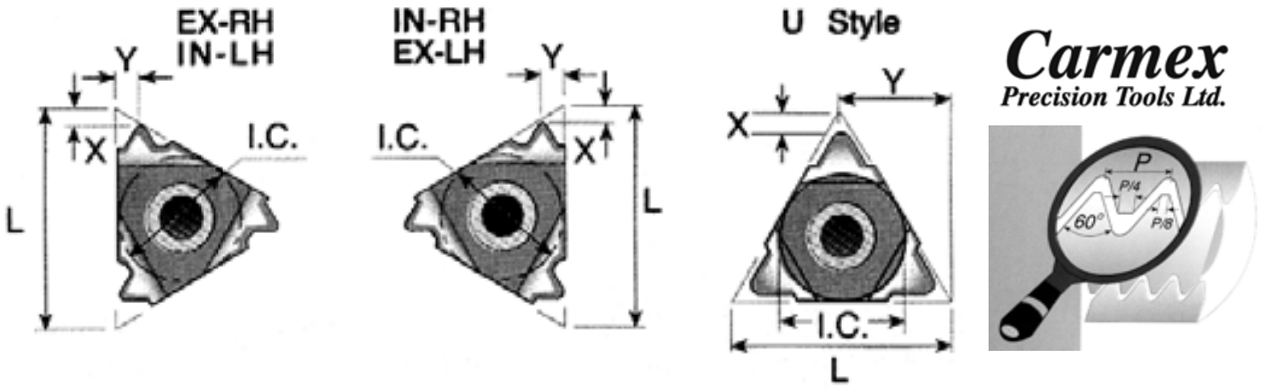

			EXTERNAL				INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	X	Y	Right Hand Part Number	Left Hand Part Number
6	5/32	32	-	-	-	-	.03	.02	T-C06IR32UNK2	T-C06IL32UNK2
	5/32	28	-	-	-	-	.03	.02	T-C06IR28UNK2	T-C06IL28UNK2
	5/32	24	-	-	-	-	.03	.02	T-C06IR24UNK2	T-C06IL24UNK2
	5/32	20	-	-	-	-	.02	.02	T-C06IR20UNK2	T-C06IL20UNK2
	5/32	18	-	-	-	-	.02	.03	T-C06IR18UNK2	T-C06IL18UNK2
8	3/16	32	-	-	-	-	.02	.02	T-C08IR32UNK2	T-C08IL32UNK2
	3/16	28	-	-	-	-	.02	.02	T-C08IR28UNK2	T-C08IL28UNK2
	3/16	24	-	-	-	-	.02	.02	T-C08IR24UNK2	T-C08IL24UNK2
	3/16	20	-	-	-	-	.02	.03	T-C08IR20UNK2	T-C08IL20UNK2
	3/16	18	-	-	-	-	.02	.03	T-C08IR18UNK2	T-C08IL18UNK2
	3/16	16	-	-	-	-	.02	.03	T-C08IR16UNK2	T-C08IL16UNK2
	3/16	14	-	-	-	-	.02	.03	T-C08IR14UNK2	T-C08IL14UNK2
8U	3/16U	13	-	-	-	-	.04	.16	T-C08UIRL13UNK2	T-C08UIRL13UNK2
	3/16U	12	-	-	-	-	.04	.16	T-C08UIRL12UNK2	T-C08UIRL12UNK2
	3/16U	11	-	-	-	-	.04	.16	T-C08UIRL11UNK2	T-C08UIRL11UNK2
11	1/4	72	.03	.02	T-C11ER72UNK2	T-C11EL72UNK2	.03	.01	T-C11IR72UNK2	T-C11IL72UNK2
	1/4	64	.03	.02	T-C11ER64UNK2	T-C11EL64UNK2	.03	.02	T-C11IR64UNK2	T-C11IL64UNK2
	1/4	56	.03	.02	T-C11ER56UNK2	T-C11EL56UNK2	.03	.02	T-C11IR56UNK2	T-C11IL56UNK2
	1/4	48	.02	.02	T-C11ER48UNK2	T-C11EL48UNK2	.02	.02	T-C11IR48UNK2	T-C11IL48UNK2
	1/4	44	.02	.02	T-C11ER44UNK2	T-C11EL44UNK2	.02	.02	T-C11IR44UNK2	T-C11IL44UNK2
	1/4	40	.02	.02	T-C11ER40UNK2	T-C11EL40UNK2	.02	.02	T-C11IR40UNK2	T-C11IL40UNK2
	1/4	36	.02	.02	T-C11ER36UNK2	T-C11EL36UNK2	.02	.02	T-C11IR36UNK2	T-C11IL36UNK2
	1/4	32	.02	.02	T-C11ER32UNK2	T-C11EL32UNK2	.02	.02	T-C11IR32UNK2	T-C11IL32UNK2
	1/4	28	.02	.03	T-C11ER28UNK2	T-C11EL28UNK2	.02	.03	T-C11IR28UNK2	T-C11IL28UNK2
	1/4	27	.03	.03	T-C11ER27UNK2	T-C11EL27UNK2	.03	.03	T-C11IR27UNK2	T-C11IL27UNK2
	1/4	24	.03	.03	T-C11ER24UNK2	T-C11EL24UNK2	.03	.03	T-C11IR24UNK2	T-C11IL24UNK2
	1/4	20	.03	.04	T-C11ER20UNK2	T-C11EL20UNK2	.03	.04	T-C11IR20UNK2	T-C11IL20UNK2
	1/4	18	.03	.04	T-C11ER18UNK2	T-C11EL18UNK2	.03	.04	T-C11IR18UNK2	T-C11IL18UNK2
	1/4	16	.04	.04	T-C11ER16UNK2	T-C11EL16UNK2	.04	.04	T-C11IR16UNK2	T-C11IL16UNK2
	1/4	14	.04	.04	T-C11ER14UNK2	T-C11EL14UNK2	.04	.04	T-C11IR14UNK2	T-C11IL14UNK2
	1/4	13	-	-	-	-	.03	.04	T-C11IR13UNK2	T-C11IL13UNK2
	1/4	12	-	-	-	-	.04	.04	T-C11IR12UNK2	T-C11IL12UNK2
	1/4	11	-	-	-	-	.03	.04	T-C11IR11UNK2	T-C11IL11UNK2
16	3/8	72	.03	.02	T-C16ER72UNK2	T-C16EL72UNK2	.03	.01	T-C16IR72UNK2	T-C16IL72UNK2
	3/8	64	.03	.02	T-C16ER64UNK2	T-C16EL64UNK2	.03	.02	T-C16IR64UNK2	T-C16IL64UNK2
	3/8	56	.03	.02	T-C16ER56UNK2	T-C16EL56UNK2	.03	.02	T-C16IR56UNK2	T-C16IL56UNK2
	3/8	48	.02	.02	T-C16ER48UNK2	T-C16EL48UNK2	.02	.02	T-C16IR48UNK2	T-C16IL48UNK2
	3/8	44	.02	.02	T-C16ER44UNK2	T-C16EL44UNK2	.02	.02	T-C16IR44UNK2	T-C16IL44UNK2
	3/8	40	.02	.02	T-C16ER40UNK2	T-C16EL40UNK2	.02	.02	T-C16IR40UNK2	T-C16IL40UNK2
	3/8	36	.02	.02	T-C16ER36UNK2	T-C16EL36UNK2	.02	.02	T-C16IR36UNK2	T-C16IL36UNK2
	3/8	32	.02	.02	T-C16ER32UNK2	T-C16EL32UNK2	.02	.02	T-C16IR32UNK2	T-C16IL32UNK2
	3/8	28	.02	.03	T-C16ER28UNK2	T-C16EL28UNK2	.02	.03	T-C16IR28UNK2	T-C16IL28UNK2
	3/8	27	.03	.03	T-C16ER27UNK2	T-C16EL27UNK2	.03	.03	T-C16IR27UNK2	T-C16IL27UNK2
	3/8	24	.03	.03	T-C16ER24UNK2	T-C16EL24UNK2	.03	.03	T-C16IR24UNK2	T-C16IL24UNK2
	3/8	20	.03	.04	T-C16ER20UNK2	T-C16EL20UNK2	.03	.04	T-C16IR20UNK2	T-C16IL20UNK2
	3/8	18	.03	.04	T-C16ER18UNK2	T-C16EL18UNK2	.03	.04	T-C16IR18UNK2	T-C16IL18UNK2
	3/8	16	.04	.04	T-C16ER16UNK2	T-C16EL16UNK2	.04	.04	T-C16IR16UNK2	T-C16IL16UNK2
	3/8	14	.04	.05	T-C16ER14UNK2	T-C16EL14UNK2	.04	.05	T-C16IR14UNK2	T-C16IL14UNK2
	3/8	13	.04	.05	T-C16ER13UNK2	T-C16EL13UNK2	.04	.05	T-C16IR13UNK2	T-C16IL13UNK2
	3/8	12	.04	.06	T-C16ER12UNK2	T-C16EL12UNK2	.04	.06	T-C16IR12UNK2	T-C16IL12UNK2
	3/8	11.5	.04	.06	T-C16ER115UNK2	T-C16EL115UNK2	.04	.06	T-C16IR115UNK2	T-C16IL115UNK2
	3/8	11	.04	.06	T-C16ER11UNK2	T-C16EL11UNK2	.04	.06	T-C16IR11UNK2	T-C16IL11UNK2
	3/8	10	.04	.06	T-C16ER10UNK2	T-C16EL10UNK2	.04	.06	T-C16IR10UNK2	T-C16IL10UNK2
	3/8	9	.05	.07	T-C16ER9UNK2	T-C16EL9UNK2	.05	.07	T-C16IR9UNK2	T-C16IL9UNK2
	3/8	8	.05	.06	T-C16ER8UNK2	T-C16EL8UNK2	.04	.06	T-C16IR8UNK2	T-C16IL8UNK2
22	1/2	7	.06	.09	T-C22ER7UNK2	T-C22EL7UNK2	.06	.09	T-C22IR7UNK2	T-C22IL7UNK2
	1/2	6	.06	.09	T-C22ER6UNK2	T-C22EL6UNK2	.06	.09	T-C22IR6UNK2	T-C22IL6UNK2
	1/2	5	.07	.10	T-C22ER5UNK2	T-C22EL5UNK2	.06	.09	T-C22IR5UNK2	T-C22IL5UNK2
22U	1/2U	4.5	.08	.43	T-C22UERL45UNK2	T-C22UERL45UNK2	.09	.43	T-C22UIRL45UNK2	T-C22UIRL45UNK2
22U	1/2U	4	.08	.43	T-C22UERL4UNK2	T-C22UERL4UNK2	.09	.43	T-C22UIRL4UNK2	T-C22UIRL4UNK2
27	5/8	4.5	.07	.11	T-C27ER45UNK2	T-C27EL45UNK2	.07	.09	T-C27IR45UNK2	T-C27IL45UNK2
27	5/8	4	.08	.12	T-C27ER4UNK2	T-C27EL4UNK2	.07	.11	T-C27IR4UNK2	T-C27IL4UNK2
27U	5/8U	3	.10	.54	T-C27UERL3UNK2	T-C27UERL3UNK2	.11	.54	T-C27UIRL3UNK2	T-C27UIRL3UNK2
