NPT-USAS B2.1:1968 INSERTS

NPT-USAS B2.1:1968 INSERTS
How To Order:

Pick the required insert from table below eg: T-C11ER27NPT
Pick a Carbide Grade from the Carmex Grade Information table
- eg. B4 for superalloys and stainless steels
Order Part Number T-C11ER27NPTB4

CARMEX GRADE INFORMATION

Carmex Grade	Exact Tooling Grade	Carbide ANSI	Coating	Materials
P25C	P5	C5	TIN	Hard Steels
MXC	M2	C2-C3	TIN	Soft Steels, Stainless Steels, Cast Iron
BMA	B4	C3-C4	TIALN	Superalloys, Stainless Steels
K20	K2	C2	UNCOATED	Aluminum, Non Ferrous

Prices are pulled from our database in real time. Press Add button to see product price.
P25C (Carmex Grade) / P5 (Exact Tooling Grade) Inserts for Hard Steels

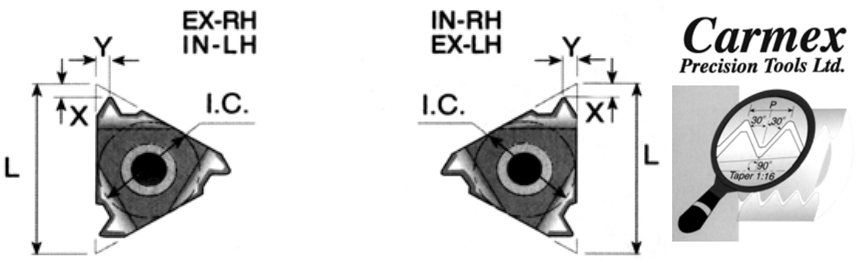

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.02	.02	-	-	T-C06IR27NPTP5	T-C06IL27NPTP5
8	3/16	27	.02	.02	-	-	T-C08IR27NPTP5	T-C08IL27NPTP5
8	3/16	18	.02	.02	-	-	T-C08IR18NPTP5	T-C08IL18NPTP5
11	1/4	27	.03	.03	T-C11ER27NPTP5	T-C11EL27NPTP5	T-C11IR27NPTP5	T-C11IL27NPTP5
	1/4	18	.03	.04	T-C11ER18NPTP5	T-C11EL18NPTP5	T-C11IR18NPTP5	T-C11IL18NPTP5
	1/4	14	.03	.04	T-C11ER14NPTP5	T-C11EL14NPTP5	T-C11IR14NPTP5	T-C11IL14NPTP5
16	3/8	27	.03	.03	T-C16ER27NPTP5	T-C16EL27NPTP5	T-C16IR27NPTP5	T-C16IL27NPTP5
	3/8	18	.03	.04	T-C16ER18NPTP5	T-C16EL18NPTP5	T-C16IR18NPTP5	T-C16IL18NPTP5
	3/8	14	.04	.05	T-C16ER14NPTP5	T-C16EL14NPTP5	T-C16IR14NPTP5	T-C16IL14NPTP5
	3/8	11.5	.04	.06	T-C16ER115NPTP5	T-C16EL115NPTP5	T-C16IR115NPTP5	T-C16IL115NPTP5
	3/8	8	.05	.07	T-C16ER8NPTP5	T-C16EL8NPTP5	T-C16IR8NPTP5	T-C16IL8NPTP5

NPT / W CHIPBREAKER

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	18	.03	.04	T-C16ERB18NPTP5	T-C16ELB18NPTP5	-	-
	3/8	14	.04	.05	T-C16ERB14NPTP5	T-C16ELB14NPTP5	T-C16IRB14NPTP5	T-C16ILB14NPTP5
	3/8	11.5	.04	.06	T-C16ERB115NPTP5	T-C16ELB115NPTP5	T-C16IRB115NPTP5	T-C16ILB115NPTP5
	3/8	8	.05	.07	T-C16ERB8NPTP5	T-C16ELB8NPTP5	T-C16IRB8NPTP5	T-C16ILB8NPTP5

MXC (Carmex Grade) / M2 (Exact Tooling Grade) Inserts for Soft Steels, Stainless Steels, Cast Iron

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.02	.02	-	-	T-C06IR27NPTM2	T-C06IL27NPTM2
8	3/16	27	.02	.02	-	-	T-C08IR27NPTM2	T-C08IL27NPTM2
8	3/16	18	.02	.02	-	-	T-C08IR18NPTM2	T-C08IL18NPTM2
11	1/4	27	.03	.03	T-C11ER27NPTM2	T-C11EL27NPTM2	T-C11IR27NPTM2	T-C11IL27NPTM2
	1/4	18	.03	.04	T-C11ER18NPTM2	T-C11EL18NPTM2	T-C11IR18NPTM2	T-C11IL18NPTM2
	1/4	14	.03	.04	T-C11ER14NPTM2	T-C11EL14NPTM2	T-C11IR14NPTM2	T-C11IL14NPTM2
16	3/8	27	.03	.03	T-C16ER27NPTM2	T-C16EL27NPTM2	T-C16IR27NPTM2	T-C16IL27NPTM2
	3/8	18	.03	.04	T-C16ER18NPTM2	T-C16EL18NPTM2	T-C16IR18NPTM2	T-C16IL18NPTM2
	3/8	14	.04	.05	T-C16ER14NPTM2	T-C16EL14NPTM2	T-C16IR14NPTM2	T-C16IL14NPTM2
	3/8	11.5	.04	.06	T-C16ER115NPTM2	T-C16EL115NPTM2	T-C16IR115NPTM2	T-C16IL115NPTM2
	3/8	8	.05	.07	T-C16ER8NPTM2	T-C16EL8NPTM2	T-C16IR8NPTM2	T-C16IL8NPTM2

NPT / W CHIPBREAKER

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	18	.03	.04	T-C16ERB18NPTM2	T-C16ELB18NPTM2	-	-
	3/8	14	.04	.05	T-C16ERB14NPTM2	T-C16ELB14NPTM2	T-C16IRB14NPTM2	T-C16ILB14NPTM2
	3/8	11.5	.04	.06	T-C16ERB115NPTM2	T-C16ELB115NPTM2	T-C16IRB115NPTM2	T-C16ILB115NPTM2
	3/8	8	.05	.07	T-C16ERB8NPTM2	T-C16ELB8NPTM2	T-C16IRB8NPTM2	T-C16ILB8NPTM2

BMA (Carmex Grade) / B4 (Exact Tooling Grade) Inserts for Superalloys, Stainless Steels

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.02	.02	-	-	T-C06IR27NPTB4	T-C06IL27NPTB4
8	3/16	27	.02	.02	-	-	T-C08IR27NPTB4	T-C08IL27NPTB4
8	3/16	18	.02	.02	-	-	T-C08IR18NPTB4	T-C08IL18NPTB4
11	1/4	27	.03	.03	T-C11ER27NPTB4	T-C11EL27NPTB4	T-C11IR27NPTB4	T-C11IL27NPTB4
	1/4	18	.03	.04	T-C11ER18NPTB4	T-C11EL18NPTB4	T-C11IR18NPTB4	T-C11IL18NPTB4
	1/4	14	.03	.04	T-C11ER14NPTB4	T-C11EL14NPTB4	T-C11IR14NPTB4	T-C11IL14NPTB4
16	3/8	27	.03	.03	T-C16ER27NPTB4	T-C16EL27NPTB4	T-C16IR27NPTB4	T-C16IL27NPTB4
	3/8	18	.03	.04	T-C16ER18NPTB4	T-C16EL18NPTB4	T-C16IR18NPTB4	T-C16IL18NPTB4
	3/8	14	.04	.05	T-C16ER14NPTB4	T-C16EL14NPTB4	T-C16IR14NPTB4	T-C16IL14NPTB4
	3/8	11.5	.04	.06	T-C16ER115NPTB4	T-C16EL115NPTB4	T-C16IR115NPTB4	T-C16IL115NPTB4
	3/8	8	.05	.07	T-C16ER8NPTB4	T-C16EL8NPTB4	T-C16IR8NPTB4	T-C16IL8NPTB4

NPT / W CHIPBREAKER

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	18	.03	.04	T-C16ERB18NPTB4	T-C16ELB18NPTB4	-	-
	3/8	14	.04	.05	T-C16ERB14NPTB4	T-C16ELB14NPTB4	T-C16IRB14NPTB4	T-C16ILB14NPTB4
	3/8	11.5	.04	.06	T-C16ERB115NPTB4	T-C16ELB115NPTB4	T-C16IRB115NPTB4	T-C16ILB115NPTB4
	3/8	8	.05	.07	T-C16ERB8NPTB4	T-C16ELB8NPTB4	T-C16IRB8NPTB4	T-C16ILB8NPTB4

K20 (Carmex Grade) / K2 (Exact Tooling Grade) Inserts for Aluminum, Non Ferrous

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.02	.02	-	-	T-C06IR27NPTK2	T-C06IL27NPTK2
8	3/16	27	.02	.02	-	-	T-C08IR27NPTK2	T-C08IL27NPTK2
8	3/16	18	.02	.02	-	-	T-C08IR18NPTK2	T-C08IL18NPTK2
11	1/4	27	.03	.03	T-C11ER27NPTK2	T-C11EL27NPTK2	T-C11IR27NPTK2	T-C11IL27NPTK2
	1/4	18	.03	.04	T-C11ER18NPTK2	T-C11EL18NPTK2	T-C11IR18NPTK2	T-C11IL18NPTK2
	1/4	14	.03	.04	T-C11ER14NPTK2	T-C11EL14NPTK2	T-C11IR14NPTK2	T-C11IL14NPTK2
16	3/8	27	.03	.03	T-C16ER27NPTK2	T-C16EL27NPTK2	T-C16IR27NPTK2	T-C16IL27NPTK2
	3/8	18	.03	.04	T-C16ER18NPTK2	T-C16EL18NPTK2	T-C16IR18NPTK2	T-C16IL18NPTK2
	3/8	14	.04	.05	T-C16ER14NPTK2	T-C16EL14NPTK2	T-C16IR14NPTK2	T-C16IL14NPTK2
	3/8	11.5	.04	.06	T-C16ER115NPTK2	T-C16EL115NPTK2	T-C16IR115NPTK2	T-C16IL115NPTK2
	3/8	8	.05	.07	T-C16ER8NPTK2	T-C16EL8NPTK2	T-C16IR8NPTK2	T-C16IL8NPTK2

NPT / W CHIPBREAKER

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
16	3/8	18	.03	.04	T-C16ERB18NPTK2	T-C16ELB18NPTK2	-	-
	3/8	14	.04	.05	T-C16ERB14NPTK2	T-C16ELB14NPTK2	T-C16IRB14NPTK2	T-C16ILB14NPTK2
	3/8	11.5	.04	.06	T-C16ERB115NPTK2	T-C16ELB115NPTK2	T-C16IRB115NPTK2	T-C16ILB115NPTK2
	3/8	8	.05	.07	T-C16ERB8NPTK2	T-C16ELB8NPTK2	T-C16IRB8NPTK2	T-C16ILB8NPTK2
