NPTF DRYSEAL INSERTS

NPTF DRYSEAL INSERTS
ANSI B1.20.3-1976
How To Order:

Pick the required insert from table below eg: T-C11ER27NPF
Pick a Carbide Grade from the Carmex Grade Information table
- eg. B4 for superalloys and stainless steels
Order Part Number T-C11ER27NPFB4

CARMEX GRADE INFORMATION

Carmex Grade	Exact Tooling Grade	Carbide ANSI	Coating	Materials
P25C	P5	C5	TIN	Hard Steels
MXC	M2	C2-C3	TIN	Soft Steels, Stainless Steels, Cast Iron
BMA	B4	C3-C4	TIALN	Superalloys, Stainless Steels
K20	K2	C2	UNCOATED	Aluminum, Non Ferrous

Prices are pulled from our database in real time. Press Add button to see product price.
P25C (Carmex Grade) / P5 (Exact Tooling Grade) Inserts for Hard Steels

					EXTERNAL		INTERNAL

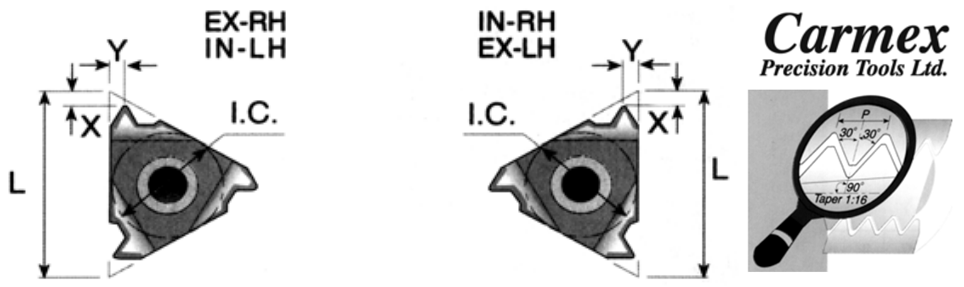

Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.03	.02	-	-	T-C06IR27NPFP5	T-C06IL27NPFP5
8	3/16	27	.02	.02	-	-	T-C08IR27NPFP5	T-C08IL27NPFP5
8	3/16	18	.02	.02	-	-	T-C08IR18NPFP5	T-C08IL18NPFP5
11	1/4	27	.03	.03	T-C11ER27NPFP5	T-C11EL27NPFP5	T-C11IR27NPFP5	T-C11IL27NPFP5
	1/4	18	.03	.04	T-C11ER18NPFP5	T-C11EL18NPFP5	T-C11IR18NPFP5	T-C11IL18NPFP5
	1/4	14	.03	.04	T-C11ER14NPFP5	T-C11EL14NPFP5	T-C11IR14NPFP5	T-C11IL14NPFP5
16	3/8	27	.03	.03	T-C16ER27NPFP5	T-C16EL27NPFP5	T-C16IR27NPFP5	T-C16IL27NPFP5
	3/8	18	.03	.04	T-C16ER18NPFP5	T-C16EL18NPFP5	T-C16IR18NPFP5	T-C16IL18NPFP5
	3/8	14	.04	.05	T-C16ER14NPFP5	T-C16EL14NPFP5	T-C16IR14NPFP5	T-C16IL14NPFP5
	3/8	11.5	.04	.06	T-C16ER11.5NPFP5	T-C16EL11.5NPFP5	T-C16IR11.5NPFP5	T-C16IL11.5NPFP5
	3/8	8	.05	.07	T-C16ER8NPFP5	T-C16EL8NPFP5	T-C16IR8NPFP5	T-C16IL8NPFP5

MXC (Carmex Grade) / M2 (Exact Tooling Grade) Inserts for Soft Steels, Stainless Steels, Cast Iron

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.03	.02	-	-	T-C06IR27NPFM2	T-C06IL27NPFM2
8	3/16	27	.02	.02	-	-	T-C08IR27NPFM2	T-C08IL27NPFM2
8	3/16	18	.02	.02	-	-	T-C08IR18NPFM2	T-C08IL18NPFM2
11	1/4	27	.03	.03	T-C11ER27NPFM2	T-C11EL27NPFM2	T-C11IR27NPFM2	T-C11IL27NPFM2
	1/4	18	.03	.04	T-C11ER18NPFM2	T-C11EL18NPFM2	T-C11IR18NPFM2	T-C11IL18NPFM2
	1/4	14	.03	.04	T-C11ER14NPFM2	T-C11EL14NPFM2	T-C11IR14NPFM2	T-C11IL14NPFM2
16	3/8	27	.03	.03	T-C16ER27NPFM2	T-C16EL27NPFM2	T-C16IR27NPFM2	T-C16IL27NPFM2
	3/8	18	.03	.04	T-C16ER18NPFM2	T-C16EL18NPFM2	T-C16IR18NPFM2	T-C16IL18NPFM2
	3/8	14	.04	.05	T-C16ER14NPFM2	T-C16EL14NPFM2	T-C16IR14NPFM2	T-C16IL14NPFM2
	3/8	11.5	.04	.06	T-C16ER11.5NPFM2	T-C16EL11.5NPFM2	T-C16IR11.5NPFM2	T-C16IL11.5NPFM2
	3/8	8	.05	.07	T-C16ER8NPFM2	T-C16EL8NPFM2	T-C16IR8NPFM2	T-C16IL8NPFM2

BMA (Carmex Grade) / B4 (Exact Tooling Grade) Inserts for Superalloys, Stainless Steels

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.03	.02	-	-	T-C06IR27NPFB4	T-C06IL27NPFB4
8	3/16	27	.02	.02	-	-	T-C08IR27NPFB4	T-C08IL27NPFB4
8	3/16	18	.02	.02	-	-	T-C08IR18NPFB4	T-C08IL18NPFB4
11	1/4	27	.03	.03	T-C11ER27NPFB4	T-C11EL27NPFB4	T-C11IR27NPFB4	T-C11IL27NPFB4
	1/4	18	.03	.04	T-C11ER18NPFB4	T-C11EL18NPFB4	T-C11IR18NPFB4	T-C11IL18NPFB4
	1/4	14	.03	.04	T-C11ER14NPFB4	T-C11EL14NPFB4	T-C11IR14NPFB4	T-C11IL14NPFB4
16	3/8	27	.03	.03	T-C16ER27NPFB4	T-C16EL27NPFB4	T-C16IR27NPFB4	T-C16IL27NPFB4
	3/8	18	.03	.04	T-C16ER18NPFB4	T-C16EL18NPFB4	T-C16IR18NPFB4	T-C16IL18NPFB4
	3/8	14	.04	.05	T-C16ER14NPFB4	T-C16EL14NPFB4	T-C16IR14NPFB4	T-C16IL14NPFB4
	3/8	11.5	.04	.06	T-C16ER11.5NPFB4	T-C16EL11.5NPFB4	T-C16IR11.5NPFB4	T-C16IL11.5NPFB4
	3/8	8	.05	.07	T-C16ER8NPFB4	T-C16EL8NPFB4	T-C16IR8NPFB4	T-C16IL8NPFB4

K20 (Carmex Grade) / K2 (Exact Tooling Grade) Inserts for Aluminum, Non Ferrous

					EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
6	5/32	27	.03	.02	-	-	T-C06IR27NPFK2	T-C06IL27NPFK2
8	3/16	27	.02	.02	-	-	T-C08IR27NPFK2	T-C08IL27NPFK2
8	3/16	18	.02	.02	-	-	T-C08IR18NPFK2	T-C08IL18NPFK2
11	1/4	27	.03	.03	T-C11ER27NPFK2	T-C11EL27NPFK2	T-C11IR27NPFK2	T-C11IL27NPFK2
	1/4	18	.03	.04	T-C11ER18NPFK2	T-C11EL18NPFK2	T-C11IR18NPFK2	T-C11IL18NPFK2
	1/4	14	.03	.04	T-C11ER14NPFK2	T-C11EL14NPFK2	T-C11IR14NPFK2	T-C11IL14NPFK2
16	3/8	27	.03	.03	T-C16ER27NPFK2	T-C16EL27NPFK2	T-C16IR27NPFK2	T-C16IL27NPFK2
	3/8	18	.03	.04	T-C16ER18NPFK2	T-C16EL18NPFK2	T-C16IR18NPFK2	T-C16IL18NPFK2
	3/8	14	.04	.05	T-C16ER14NPFK2	T-C16EL14NPFK2	T-C16IR14NPFK2	T-C16IL14NPFK2
	3/8	11.5	.04	.06	T-C16ER11.5NPFK2	T-C16EL11.5NPFK2	T-C16IR11.5NPFK2	T-C16IL11.5NPFK2
	3/8	8	.05	.07	T-C16ER8NPFK2	T-C16EL8NPFK2	T-C16IR8NPFK2	T-C16IL8NPFK2
