OIL THREAD INSERTS

OIL THREAD INSERTS
How To Order:

Pick the required insert from table below eg: T-C16ER10APR
Pick a Carbide Grade from the Carmex Grade Information table
- eg. B4 for superalloys and stainless steels
Order Part Number T-C16ER10APRB4

CARMEX GRADE INFORMATION

Carmex Grade	Exact Tooling Grade	Carbide ANSI	Coating	Materials
P25C	P5	C5	TIN	Hard Steels
MXC	M2	C2-C3	TIN	Soft Steels, Stainless Steels, Cast Iron
BMA	B4	C3-C4	TIALN	Superalloys, Stainless Steels
K20	K2	C2	UNCOATED	Aluminum, Non Ferrous

Prices are pulled from our database in real time. Press Add button to see product price.
P25C (Carmex Grade) / P5 (Exact Tooling Grade) Inserts for Hard Steels

							EXTERNAL		INTERNAL

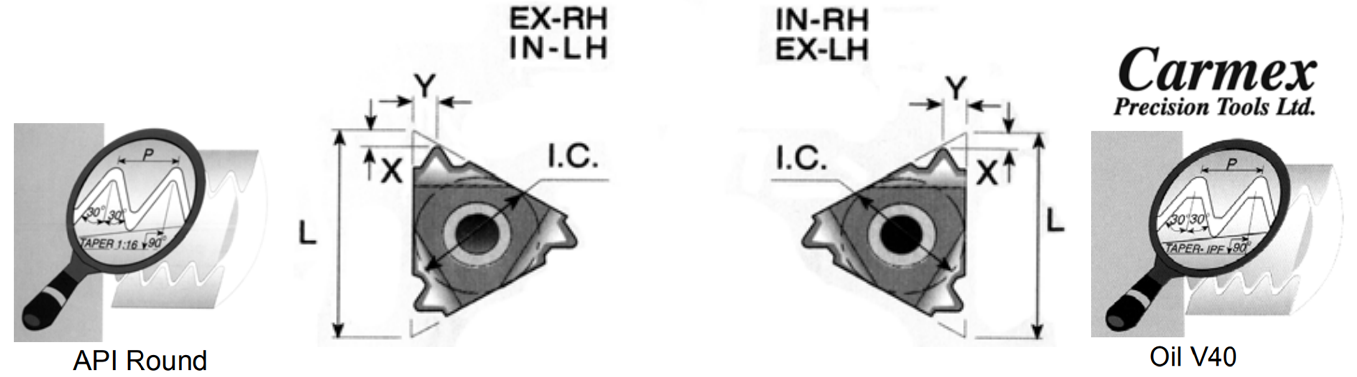

Insert Series	I.C.	Pitch TPI	X	Y	CONNECTION No.or Size	TAPER IPF	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
API ROUND
16	3/8	10	.06	.06	-	0.75	T-C16ER10APRP5	T-C16EL10APRP5	T-C16IR10APRP5	T-C16IL10APRP5
16	3/8	8	.05	.06	-	0.75	T-C16ER8APRP5	T-C16EL8APRP5	T-C16IR8APRP5	T-C16IL8APRP5
APIV-0.040
22	1/2	5	.07	.10	23/8 - 41/2 REG	3	T-C22ER5AP403P5	T-C22EL5AP403P5	T-C22IR5AP403P5	T-C22IL5AP403P5
APIV-0.038
27	5/8	4	.08	.08	NC23-NC50	2	T-C27ER4AP382P5	T-C27EL4AP382P5	T-C27IR4AP382P5	T-C27IL4AP382P5
27	5/8	4	.08	.11	NC56-NC77	3	T-C27ER4AP383P5	T-C27EL4AP383P5	T-C27IR4AP383P5	T-C27IL4AP383P5
APIV-0.050
27	5/8	4	.08	.12	65/8 REG	2	T-C27ER4AP502P5	T-C27EL4AP502P5	T-C27IR4AP502P5	T-C27IL4AP502P5
27	5/8	4	.08	.12	51/2, 75/8, 85/8 REG	3	T-C27ER4AP503P5	T-C27EL4AP503P5	T-C27IR4AP503P5	T-C27IL4AP503P5

MXC (Carmex Grade) / M2 (Exact Tooling Grade) Inserts for Soft Steels, Stainless Steels, Cast Iron

							EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	CONNECTION No.or Size	TAPER IPF	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
API ROUND
16	3/8	10	.06	.06	-	0.75	T-C16ER10APRM2	T-C16EL10APRM2	T-C16IR10APRM2	T-C16IL10APRM2
16	3/8	8	.05	.06	-	0.75	T-C16ER8APRM2	T-C16EL8APRM2	T-C16IR8APRM2	T-C16IL8APRM2
APIV-0.040
22	1/2	5	.07	.10	23/8 - 41/2 REG	3	T-C22ER5AP403M2	T-C22EL5AP403M2	T-C22IR5AP403M2	T-C22IL5AP403M2
APIV-0.038
27	5/8	4	.08	.08	NC23-NC50	2	T-C27ER4AP382M2	T-C27EL4AP382M2	T-C27IR4AP382M2	T-C27IL4AP382M2
27	5/8	4	.08	.11	NC56-NC77	3	T-C27ER4AP383M2	T-C27EL4AP383M2	T-C27IR4AP383M2	T-C27IL4AP383M2
APIV-0.050
27	5/8	4	.08	.12	65/8 REG	2	T-C27ER4AP502M2	T-C27EL4AP502M2	T-C27IR4AP502M2	T-C27IL4AP502M2
27	5/8	4	.08	.12	51/2, 75/8, 85/8 REG	3	T-C27ER4AP503M2	T-C27EL4AP503M2	T-C27IR4AP503M2	T-C27IL4AP503M2

BMA (Carmex Grade) / B4 (Exact Tooling Grade) Inserts for Superalloys, Stainless Steels

							EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	CONNECTION No.or Size	TAPER IPF	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
API ROUND
16	3/8	10	.06	.06	-	0.75	T-C16ER10APRB4	T-C16EL10APRB4	T-C16IR10APRB4	T-C16IL10APRB4
16	3/8	8	.05	.06	-	0.75	T-C16ER8APRB4	T-C16EL8APRB4	T-C16IR8APRB4	T-C16IL8APRB4
APIV-0.040
22	1/2	5	.07	.10	23/8 - 41/2 REG	3	T-C22ER5AP403B4	T-C22EL5AP403B4	T-C22IR5AP403B4	T-C22IL5AP403B4
APIV-0.038
27	5/8	4	.08	.08	NC23-NC50	2	T-C27ER4AP382B4	T-C27EL4AP382B4	T-C27IR4AP382B4	T-C27IL4AP382B4
27	5/8	4	.08	.11	NC56-NC77	3	T-C27ER4AP383B4	T-C27EL4AP383B4	T-C27IR4AP383B4	T-C27IL4AP383B4
APIV-0.050
27	5/8	4	.08	.12	65/8 REG	2	T-C27ER4AP502B4	T-C27EL4AP502B4	T-C27IR4AP502B4	T-C27IL4AP502B4
27	5/8	4	.08	.12	51/2, 75/8, 85/8 REG	3	T-C27ER4AP503B4	T-C27EL4AP503B4	T-C27IR4AP503B4	T-C27IL4AP503B4

K20 (Carmex Grade) / K2 (Exact Tooling Grade) Inserts for Aluminum, Non Ferrous

							EXTERNAL		INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	CONNECTION No.or Size	TAPER IPF	Right Hand Part Number	Left Hand Part Number	Right Hand Part Number	Left Hand Part Number
API ROUND
16	3/8	10	.06	.06	-	0.75	T-C16ER10APRK2	T-C16EL10APRK2	T-C16IR10APRK2	T-C16IL10APRK2
16	3/8	8	.05	.06	-	0.75	T-C16ER8APRK2	T-C16EL8APRK2	T-C16IR8APRK2	T-C16IL8APRK2
APIV-0.040
22	1/2	5	.07	.10	23/8 - 41/2 REG	3	T-C22ER5AP403K2	T-C22EL5AP403K2	T-C22IR5AP403K2	T-C22IL5AP403K2
APIV-0.038
27	5/8	4	.08	.08	NC23-NC50	2	T-C27ER4AP382K2	T-C27EL4AP382K2	T-C27IR4AP382K2	T-C27IL4AP382K2
27	5/8	4	.08	.11	NC56-NC77	3	T-C27ER4AP383K2	T-C27EL4AP383K2	T-C27IR4AP383K2	T-C27IL4AP383K2
APIV-0.050
27	5/8	4	.08	.12	65/8 REG	2	T-C27ER4AP502K2	T-C27EL4AP502K2	T-C27IR4AP502K2	T-C27IL4AP502K2
27	5/8	4	.08	.12	51/2, 75/8, 85/8 REG	3	T-C27ER4AP503K2	T-C27EL4AP503K2	T-C27IR4AP503K2	T-C27IL4AP503K2
