Thread Mill Insert Holders for Threading on CNC Milling Machines

THREAD MILL INSERTS HOLDERS
FOR THREADING ON CNC MILLING MACHINES
Using Helical Interpolation Programs

Prices are pulled from our database in real time. Press Add button to see product price.

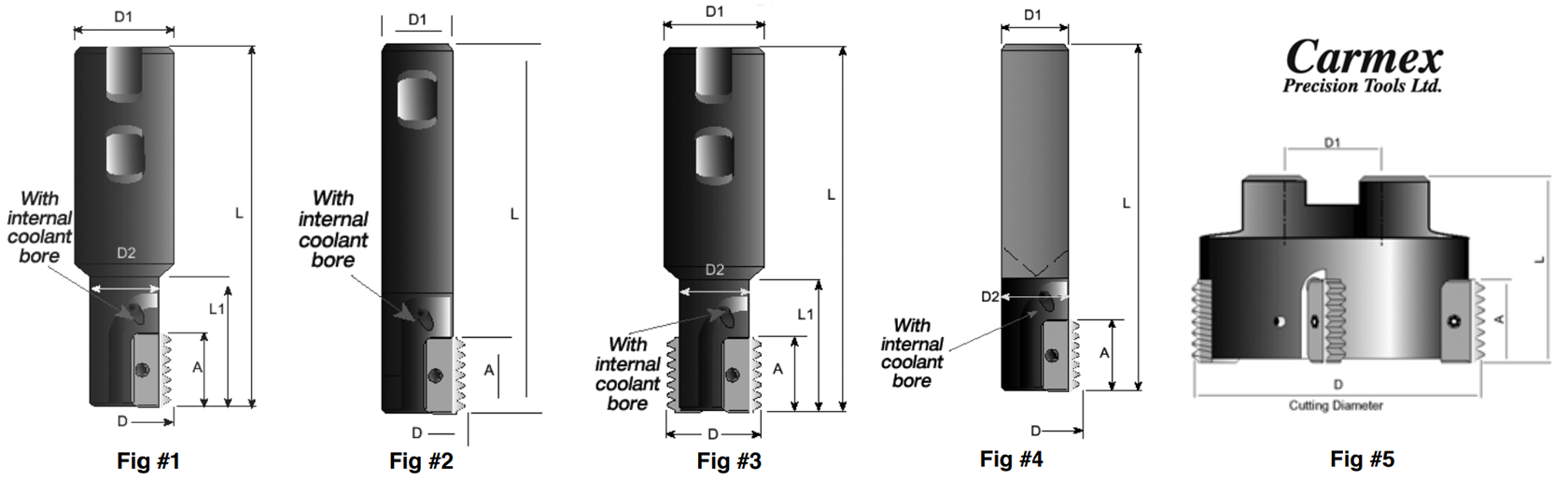

Style	Figure No.	For Insert Size "A"	D	D1	D2	L	L1	No Of Inserts	Coolant Thru	Shank Material	Part Number	Insert	Torx
Std Lngth	1	12	0.37	0.75	0.3	3.35	0.51	1	Yes	Steel	T-CTSR0375H12	S12	K12
		12	0.39	0.75	0.3	3.35	0.51	1	Yes	Steel	T-CTSR0390H12	S12	K12
		14	0.5	0.75	0.37	2.95	0.70	1	Yes	Steel	T-CTSR0500F14	S14	K14
		14	0.54	0.75	0.38	2.98	0.77	1	Yes	Steel	T-CTSR0540F14	S14	K14
		14	0.57	0.75	0.41	3.20	1.00	1	Yes	Steel	T-CTSR0570H14	S14	K14
		14	0.67	0.75	0.53	3.35	1.18	1	Yes	Steel	T-CTSR0670H14	S14	K14
		21	0.79	0.75	0.61	3.70	1.57	1	Yes	Steel	T-CTSR0790H21	S21	K21
		30	1.14	1.00	0.91	4.27	1.85	1	Yes	Steel	T-CTSR1140J30	S30	K30
		40	1.73	1.50	1.38	6.02	3.19	1	Yes	Steel	T-CTSR1730M40	S40	K40
Long Shnk	2	21	0.94	0.75	5.00	-	-	1	Yes	Steel	T-CTSR0940K21	S21	K21
		30	1.24	1.00	6.00	-	-	1	Yes	Steel	T-CTSR1240M30	S30	K30
		30	1.50	1.25	6.00	-	-	1	Yes	Steel	T-CTSR1500M30	S30	K30
Std Lngth	3	14	0.79	0.75	0.63	3.66	1.57	2	Yes	Steel	T-CTSR0790H14-2	S14	K14
		21	1.18	1.00	0.95	4.25	1.97	2	Yes	Steel	T-CTSR1180J21-2	S21	K21
		30	1.57	1.25	1.18	5.12	2.80	2	Yes	Steel	T-CTSR1580L30-2	S30	K30
		40	1.97	1.50	1.49	6.02	3.35	2	Yes	Steel	T-CTSR1970M40-2	S40	K40
Long Shnk	4	12	0.39	0.312	0.312	5.00	-	1	Yes	Carbide	T-CTSR0390K12C	S12	K12
		14	0.50	0.375	0.375	6.00	-	1	Yes	Carbide	T-CTSR0500J14C	S14	K14
		14	0.62	0.500	0.500	7.00	-	1	Yes	Carbide	T-CTSR0620K14C	S14	K14
		21	0.82	0.625	0.625	8.00	-	1	Yes	Carbide	T-CTSR0820M21C	S21	K21
Shell Mill	5	21	2.48	0.750	1.970	n/a	n/a	5	No	n/a	T-CTSR2480C21-5	S21	K21
		30	2.48	0.750	1.970			4	No	n/a	T-CTSR2480C30-4	S30	K30
		30	3.15	1.000	2.160			4	No	n/a	T-CTSR3150D30-4	S30	K30
		30	3.94	1.250	2.360			4	No	n/a	T-CTSR3940D30-4	S30	K30
		40	3.15	1.000	2.560			4	No	n/a	T-CTSR3150D40-4	S40	K40
		40	3.94	1.250	2.760			4	No	n/a	T-CTSR3940E40-4	S40	K40
