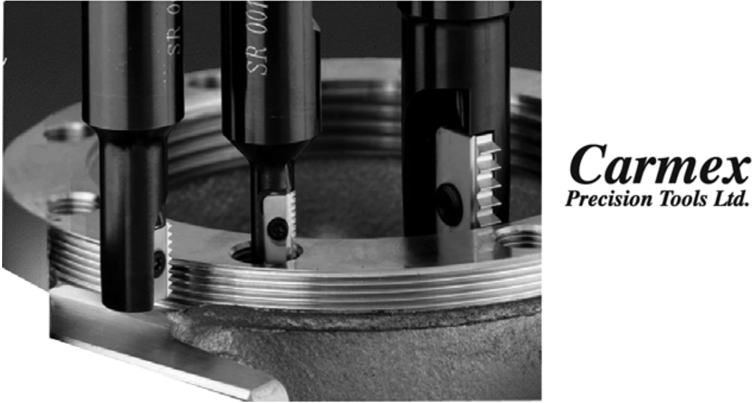

Thread Mill Inserts for Threading on CNC Milling Machines

THREAD MILL INSERTS
FOR THREADING ON CNC MILLING MACHINES
USING HELICAL INTERPOLATION PROGRAMS
ADVANTAGES OF MILL THREAD TOOLS

Same toolholder and insert can produce right and left-hand threads
A single insert & toolholder can produce a given thread on many diameters (external & internal)
Most inserts are double sided, having two cutting edges.
Thread is produced in one tool pass.
Mill Thread tools are capable of producing taper threads.
Improved productivity thanks to increased cutting speeds and multitooth type carbide inserts
Threading to one pitch of a shoulder in a blind hole.
Longer tool life thanks to special multilayer coating process
Lower tooling costs, considerably less expensive than using taps and dies
Since lower machine power required, smaller machine can produce larger threads in single operation with less idle time and tool changes.

Inserts are compatible with Kennametal, Stellram, Xactform & Iscar Holders!
GRADE MT7 - Sub micron TiAlN multi layer coated grade general purpose for all materials

Prices are pulled from our database in real time. Press Add button to see product price.
FOR ISO METRIC THREADS

		INTERNAL	EXTERNAL
INSERT SIZE "A"	Pitch mm	Part Number	Part Number
12	0.50	T-CT12 I 0.5M	-
	0.75	T-CT12 I 0.75M	-
	1.00	T-CT12 I 1.0M	-
	1.25	T-CT12 I 1.25M	-
	1.50	T-CT12 I 1.5M	-
14	0.50	T-CT14 I 0.5M	-
	0.75	T-CT14 I 0.75M	T-CT14 E 0.75M
	1.00	T-CT14 I 1.0M	T-CT14 E 1.0M
	1.25	T-CT14 I 1.25M	T-CT14 E 1.25M
	1.50	T-CT14 I 1.5M	T-CT14 E 1.5M
	1.75	T-CT14 I 1.75M	T-CT14 E 1.75M
	2.00	T-CT14 I 2.0M	T-CT14 E 2.0M
	2.50	T-CT14 I 2.5M	T-CT14 E 2.5M
21	1.00	T-CT21 I 1.0M	T-CT21 E 1.0M
	1.50	T-CT21 I 1.5M	T-CT21 E 1.5M
	1.75	T-CT21 I 1.75M	-
	2.00	T-CT21 I 2.0M	T-CT21 E 2.0M
	2.50	T-CT21 I 2.5M	T-CT21 E 2.5M
	3.00	T-CT21 I 3.0M	T-CT21 E 3.0M
	3.50	T-CT21 I 3.5M	-
30	1.50	T-CT30 I 1.5M	T-CT30 E 1.5M
	2.00	T-CT30 I 2.0M	T-CT30 E 2.0M
	3.00	T-CT30 I 3.0M	T-CT30 E 3.0M
	3.50	T-CT30 I 3.5M	T-CT30 E 3.5M
	4.00	T-CT30 I 4.0M	T-CT30 E 4.0M
	4.50	T-CT30 I 4.5M	T-CT30 E 4.5M
40	1.50	T-CT40 I 1.5M	T-CT40 E 1.5M
	2.00	T-CT40 I 2.0M	T-CT40 E 2.0M
	3.00	T-CT40 I 3.0M	T-CT40 E 3.0M
	3.50	T-CT40 I 3.5M	-
	4.00	T-CT40 I 4.0M	T-CT40 E 4.0M
	4.50	T-CT40 I 4.5M	-
	5.00	T-CT40 I 5.0M	T-CT40 E 5.0M
	5.50	T-CT40 I 5.5M	-
	6.00	T-CT40 I 6.0M	T-CT40 E 6.0M

FOR UN AMERICAN UNIFIED THREADS

		INTERNAL	EXTERNAL
INSERT SIZE "A"	TPI	Part Number	Part Number
12	32	T-CT12 I 32UN	-
	28	T-CT12 I 28UN	-
	24	T-CT12 I 24UN	-
	20	T-CT12 I 20UN	-
	18	T-CT12 I 18UN	-
	16	T-CT12 I 16UN	-
14	32	T-CT14 I 32UN	T-CT14 E 32UN
	28	T-CT14 I 28UN	T-CT14 E 28UN
	27	T-CT14 I 27UN	-
	24	T-CT14 I 24UN	T-CT14 E 24UN
	20	T-CT14 I 20UN	T-CT14 E 20UN
	18	T-CT14 I 18UN	T-CT14 E 18UN
	16	T-CT14 I 16UN	T-CT14 E 16UN
	14	T-CT14 I 14UN	T-CT14 E 14UN
	12	T-CT14 I 12UN	T-CT14 E 12UN
21	24	T-CT21 I 24UN	T-CT21 E 24UN
	20	T-CT21 I 20UN	T-CT21 E 20UN
	18	T-CT21 I 18UN	T-CT21 E 18UN
	16	T-CT21 I 16UN	T-CT21 E 16UN
	14	T-CT21 I 14UN	T-CT21 E 14UN
	12	T-CT21 I 12UN	T-CT21 E 12UN
	10	T-CT21 I 10UN	T-CT21 E 10UN
	8	T-CT21 I 8UN	-
30	20	T-CT30 I 20UN	T-CT30 E 20UN
	18	T-CT30 I 18UN	T-CT30 E 18UN
	16	T-CT30 I 16UN	T-CT30 E 16UN
	14	T-CT30 I 14UN	T-CT30 E 14UN
	12	T-CT30 I 12UN	T-CT30 E 12UN
	10	T-CT30 I 10UN	T-CT30 E 10UN
	8	T-CT30 I 8UN	T-CT30 E 8UN
	6	T-CT30 I 6UN	T-CT30 E 6UN
40	16	T-CT40 I 16UN	T-CT40 E 20UN
	14	T-CT40 I 14UN	T-CT40 E 18UN
	12	T-CT40 I 12UN	T-CT40 E 16UN
	10	T-CT40 I 10UN	T-CT40 E 14UN
	8	T-CT40 I 8UN	T-CT40 E 12UN
	6	T-CT40 I 6UN	T-CT40 E 10UN
	4.5	T-CT40 I 4.5UN	T-CT40 E 8UN
	4	T-CT40 I 4UN	T-CT40 E 6UN

For NPT Threads

		INTERNAL/EXTERNAL
INSERT SIZE "A"	TPI	Part Number
12	18	T-CT12 IE 18NPT
14	18	T-CT14 IE 18NPT
14	14	T-CT14 IE 14NPT
21	14	T-CT21 IE 14NPT
21	11.5	T-CT21 IE 11.5NPT
30	11.5	T-CT30 IE 11.5NPT
30	8	T-CT30 IE 8NPT
40	11.5	T-CT40 IE 11.5NPT
40	8	T-CT40 IE 8NPT

For NPTF DRYSEAL Threads

		INTERNAL/EXTERNAL
INSERT SIZE "A"	TPI	Part Number
12	18	T-CT12 IE 18NPTF
14	18	T-CT14 IE 18NPTF
14	14	T-CT14 IE 14NPTF
21	14	T-CT21 IE 14NPTF
21	11.5	T-CT21 IE 11.5NPTF
30	8	T-CT30 IE 8NPTF
40	8	T-CT40 IE 8NPTF
