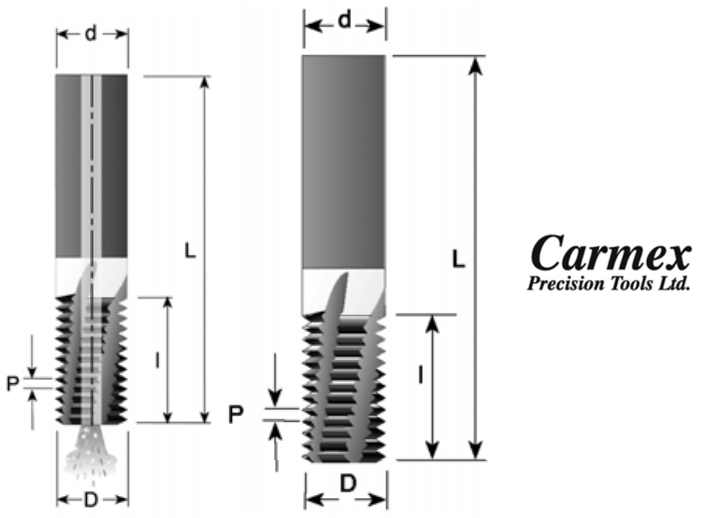

ISO METRIC 360°

SOLID CARBIDE THREADMILLS
ISO METRIC 360°
Prices are pulled from our database in real time. Press Add button to see product price.
Pitch
mm		 Metric
Coarse		 Metric
Fine		 d D No. of
flutes		 l L Part Number
NO COOLANT PASSAGE
0.5 M3 ø>=.16 1/4 .087 3 .21 2.5 T-CT0.5M-500
0.5 - ø>=.20 1/4 .150 3 .41 2.5 T-CT0.5M-505
0.7 M4 ø>=.20 1/4 .122 3 .29 2.5 T-CT0.7M-510
0.75 - ø>=.24 1/4 .177 3 .40 2.5 T-CT0.75M-515
0.8 M5 ø>=.24 1/4 .142 3 .36 2.5 T-CT0.8M-520
1.0 M6 ø>=.28 1/4 .157 3 .41 2.5 T-CT1.0M-525
1.0 M6 ø>=.28 1/4 .157 3 .57 2.5 T-CT1.0M-530
1.0 - ø>=.35 1/4 .236 3 .49 2.5 T-CT1.0M-535
1.0 - ø>=.39 5/16 .313 4 .65 2.5 T-CT1.0M-540
1.25 M8 ø>=.39 1/4 .197 3 .57 2.5 T-CT1.25M-545
1.25 M8 ø>=.39 1/4 .197 3 .76 2.5 T-CT1.25M-550
1.5 M10 ø>=.47 5/16 .276 3 .68 2.5 T-CT1.5M-555
1.5 M10 ø>=.47 5/16 .276 3 .98 2.5 T-CT1.5M-560
1.5 - ø>=.55 3/8 .375 4 .86 3.0 T-CT1.5M-565
1.5 - ø>=.79 5/8 .625 6 1.33 4.0 T-CT1.5M-570
1.75 M12 ø>=.55 5/16 .313 3 .79 2.5 T-CT1.75M-575
1.75 M12 ø>=.55 5/16 .313 3 1.14 2.5 T-CT1.75M-580
2.0 M16 ø>=.67 3/8 .375 3 1.06 3.0 T-CT2.0M-585
2.0 M16 ø>=.67 3/8 .375 3 1.54 3.0 T-CT2.0M-590
2.0 - ø>=.71 1/2 .472 4 1.06 3.0 T-CT2.0M-595
2.0 - ø>=1.02 3/4 .750 6 1.61 4.0 T-CT2.0M-600
2.5 M20 ø>=.87 5/8 .551 4 1.33 4.0 T-CT2.5M-605
2.5 M20 ø>=.87 5/8 .551 4 1.92 4.0 T-CT2.5M-610
3.0 M24 ø>=.98 5/8 .625 3 1.59 4.0 T-CT3.0M-615
3.0 M24 ø>=.98 5/8 .625 3 2.31 4.0 T-CT3.0M-620
3.0 M28 ø>=1.10 3/4 .750 4 1.71 4.0 T-CT3.0M-625
WITH THRU COOLANT HOLE
0.5 - ø>=.20 1/4 .150 3 .41 2.5 T-CT0.5M-630C
0.7 M4 ø>=.20 1/4 .122 3 .29 2.5 T-CT0.7M-635C
0.75 - ø>=.24 1/4 .177 3 .40 2.5 T-CT0.75M-640C
0.8 M5 ø>=.24 1/4 .150 3 .36 2.5 T-CT0.8M-645C
1.0 M6 ø>=.28 1/4 .181 3 .41 2.5 T-CT1.0M-650C
1.0 M6 ø>=.28 1/4 .181 3 .60 2.5 T-CT1.0M-655C
1.0 - ø>=.35 1/4 .250 3 .50 2.5 T-CT1.0M-660C
1.0 - ø>=.39 5/16 .312 4 .65 2.5 T-CT1.0M-665C
1.25 M8 ø>=.39 1/4 .250 3 .57 2.5 T-CT1.25M-670C
1.25 M8 ø>=.39 1/4 .250 3 .76 2.5 T-CT1.25M-675C
1.5 M10 ø>=.47 5/16 .307 3 .67 2.5 T-CT1.5M-680C
1.5 M10 ø>=.47 5/16 .307 3 .98 2.5 T-CT1.5M-685C
1.5 - ø>=.55 3/8 .375 4 .86 3.0 T-CT1.5M-690C
1.5 - ø>=.79 5/8 .625 6 1.33 4.0 T-CT1.5M-695C
1.75 M12 ø>=.47 3/8 .354 3 .79 3.0 T-CT1.75M-700C
1.75 M12 ø>=.47 3/8 .354 3 1.14 3.0 T-CT1.75M-705C
2.0 M14 ø>=.59 3/8 .375 3 1.06 3.0 T-CT2.0M-710C
2.0 M16 ø>=.67 1/2 .465 4 1.06 4.0 T-CT2.0M-715C
2.0 M16 ø>=.67 1/2 .465 4 1.54 4.0 T-CT2.0M-720C
2.0 - ø>=.94 3/4 .750 6 1.61 4.0 T-CT2.0M-725C
