SOLID CARBIDE MINI THREADMILLS UN-UNIFIED AMERICAN 60°
UN-UNIFIED AMERICAN 60°
General Purpose For All Materials Prices are pulled from our database in real time. Press Add button to see product price.

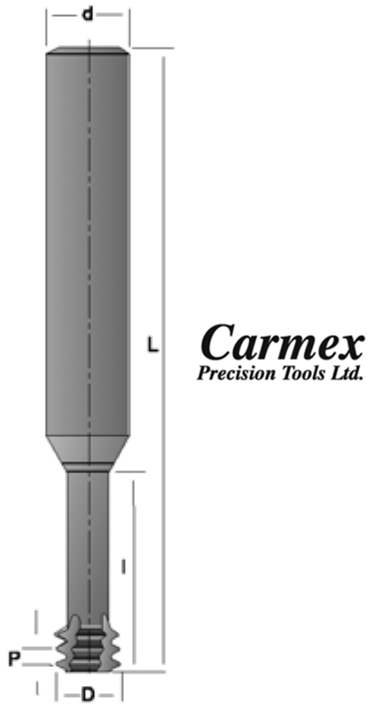

| TPI | UNC | UNF | d | D | No. of Flutes |
l | L | Part Number |
| For Thread Depth Up To 2xD | ||||||||
| 72 | - | 1 | 1/4 | .057 | 3 | .15 | 2.5 | T-CMTS72UN-800 |
| 64 | 1 | 2 | 1/4 | .055 | 3 | .15 | 2.5 | T-CMTS64UN-805 |
| 56 | 2 | 3 | 1/4 | .065 | 3 | .17 | 2.5 | T-CMTS56UN-810 |
| 48 | 3 | 4 | 1/4 | .075 | 3 | .20 | 2.5 | T-CMTS48UN-815 |
| 40 | 4 | - | 1/4 | .083 | 3 | .25 | 2.5 | T-CMTS40UN-820 |
| 40 | 5 | 6 | 1/4 | .096 | 3 | .28 | 2.5 | T-CMTS40UN-825 |
| 36 | - | 8 | 1/4 | .130 | 3 | .35 | 2.5 | T-CMTS36UN-830 |
| 32 | 6 | - | 1/4 | .100 | 3 | .28 | 2.5 | T-CMTS32UN-835 |
| 32 | 8 | 10 | 1/4 | .126 | 3 | .37 | 2.5 | T-CMTS32UN-840 |
| 28 | - | 1/4 | 1/4 | .197 | 3 | .57 | 2.5 | T-CMTS28UN-845 |
| 24 | 10, 12 | - | 1/4 | .138 | 3 | .42 | 2.5 | T-CMTS24UN-850 |
| 24 | - | 5/16 | 5/16 | .260 | 3 | .67 | 2.5 | T-CMTS24UN-855 |
| 20 | 1/4 | - | 1/4 | .187 | 3 | .55 | 2.5 | T-CMTS20UN-860 |
| For Thread Depth Up To 3xD | ||||||||
| 40 | 5 | 6 | 1/4 | .096 | 3 | .38 | 2.5 | T-CMTS40UN-865 |
| 32 | 8 | 10 | 1/4 | .126 | 3 | .49 | 2.5 | T-CMTS32UN-870 |
| 28 | - | 1/4 | 1/4 | .197 | 3 | .75 | 2.5 | T-CMTS28UN-875 |
| 24 | - | 5/16 | 5/16 | .260 | 3 | .94 | 2.5 | T-CMTS24UN-880 |
| 20 | 1/4 | - | 1/4 | .187 | 3 | .75 | 2.5 | T-CMTS20UN-885 |
