NPT
SOLID CARBIDE THREADMILLS
NPT Prices are pulled from our database in real time. Press Add button to see product price.
NPT Prices are pulled from our database in real time. Press Add button to see product price.

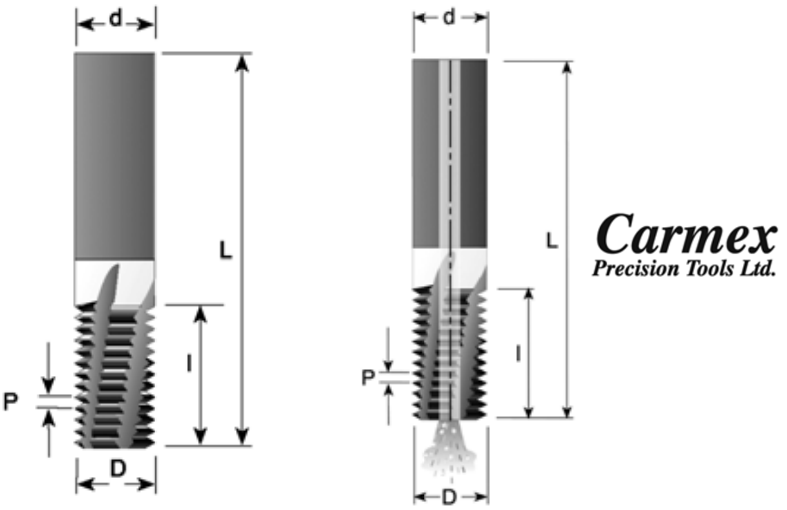

TPI | Standard | d | D | No. Of Flutes |
l | L | Part Number |
NO COOLANT PASSAGE | |||||||
27 | 1/8 | 1/4 | .250 | 3 | .39 | 2.5 | T-CT27NPT-100 |
18 | 1/4-3/8 | 5/16 | .312 | 3 | .58 | 2.5 | T-CT18NPT-105 |
14 | 1/2-3/4 | 1/2 | .500 | 4 | .82 | 3.0 | T-CT14NPT-110 |
11.5 | 1-2 | 5/8 | .625 | 4 | 1.09 | 4.0 | T-CT115NPT-115 |
8 | >21/2 | 3/4 | .750 | 4 | 1.56 | 4.0 | T-CT8NPT-120 |
WITH THRU COOLANT HOLE | |||||||
27 | 1/8 | 5/16 | .299 | 3 | .43 | 2.5 | T-CT27NPT-125C |
18 | 1/4-3/8 | 3/8 | .375 | 4 | .64 | 3.0 | T-CT18NPT-130C |
14 | 1/2-3/4 | 5/8 | .610 | 4 | .89 | 4.0 | T-CT14NPT-135C |
11.5 | 1-2 | 3/4 | .750 | 4 | 1.17 | 4.0 | T-CT115NPT-140C |
