UN Full Profile Inserts with Sintered Chipbreaker

UN FULL PROFILE INSERTS
With Sintered Chipbreaker
For American Unified 60° Threads
ANSI B1.1:74
How To Order:

Pick the required insert from table below eg: T-C16ERB20UN
Pick a Carbide Grade from the Carmex Grade Information table
- eg. B4 for superalloys and stainless steels
Order Part Number T-C16ERB20UNB4

CARMEX GRADE INFORMATION

Carmex Grade	Exact Tooling Grade	Carbide ANSI	Coating	Materials
P25C	P5	C5	TIN	Hard Steels
MXC	M2	C2-C3	TIN	Soft Steels, Stainless Steels, Cast Iron
BMA	B4	C3-C4	TIALN	Superalloys, Stainless Steels
K20	K2	C2	UNCOATED	Aluminum, Non Ferrous

Prices are pulled from our database in real time. Press Add button to see product price.
P25C (Carmex Grade) / P5 (Exact Tooling Grade) Inserts for Hard Steels

			EXTERNAL				INTERNAL

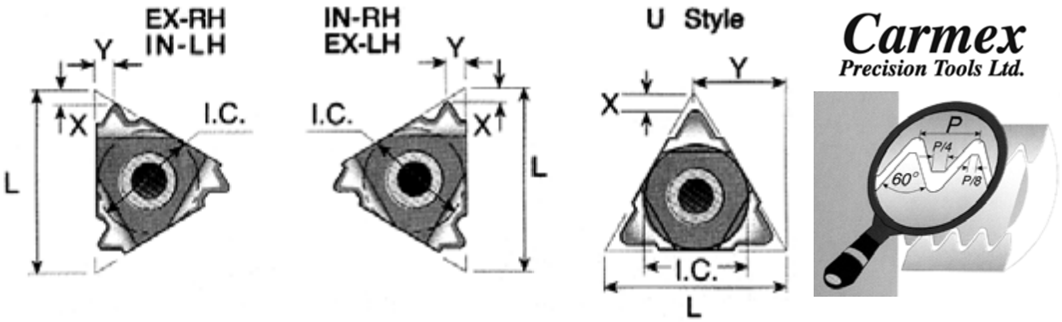

Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	X	Y	Right Hand Part Number	Left Hand Part Number
16	3/8	24	.03	.03	T-C16ERB24UNP5	T-C16ELB24UNP5	.03	.03	T-C16IRB24UNP5	T-C16ILB24UNP5
	3/8	20	.03	.04	T-C16ERB20UNP5	T-C16ELB20UNP5	.03	.04	T-C16IRB20UNP5	T-C16ILB20UNP5
	3/8	18	.03	.04	T-C16ERB18UNP5	T-C16ELB18UNP5	.03	.04	T-C16IRB18UNP5	T-C16ILB18UNP5
	3/8	16	.04	.04	T-C16ERB16UNP5	T-C16ELB16UNP5	.04	.04	T-C16IRB16UNP5	T-C16ILB16UNP5
	3/8	14	.04	.05	T-C16ERB14UNP5	T-C16ELB14UNP5	.04	.05	T-C16IRB14UNP5	T-C16ILB14UNP5
	3/8	13	.04	.05	T-C16ERB13UNP5	T-C16ELB13UNP5	-	-	-	-
	3/8	12	.04	.06	T-C16ERB12UNP5	T-C16ELB12UNP5	.04	.06	T-C16IRB12UNP5	T-C16ILB12UNP5
	3/8	11	.04	.06	T-C16ERB11UNP5	T-C16ELB11UNP5	-	-	-	-
	3/8	10	.04	.06	T-C16ERB10UNP5	T-C16ELB10UNP5	.04	.06	T-C16IRB10UNP5	T-C16ILB10UNP5
	3/8	9	.05	.07	T-C16ERB9UNP5	T-C16ELB9UNP5	-	-	-	-
	3/8	8	.05	.06	T-C16ERB8UNP5	T-C16ELB8UNP5	.04	.06	T-C16IRB8UNP5	T-C16ILB8UNP5

MXC (Carmex Grade) / M2 (Exact Tooling Grade) Inserts for Soft Steels, Stainless Steels, Cast Iron

			EXTERNAL				INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	X	Y	Right Hand Part Number	Left Hand Part Number
16	3/8	24	.03	.03	T-C16ERB24UNM2	T-C16ELB24UNM2	.03	.03	T-C16IRB24UNM2	T-C16ILB24UNM2
	3/8	20	.03	.04	T-C16ERB20UNM2	T-C16ELB20UNM2	.03	.04	T-C16IRB20UNM2	T-C16ILB20UNM2
	3/8	18	.03	.04	T-C16ERB18UNM2	T-C16ELB18UNM2	.03	.04	T-C16IRB18UNM2	T-C16ILB18UNM2
	3/8	16	.04	.04	T-C16ERB16UNM2	T-C16ELB16UNM2	.04	.04	T-C16IRB16UNM2	T-C16ILB16UNM2
	3/8	14	.04	.05	T-C16ERB14UNM2	T-C16ELB14UNM2	.04	.05	T-C16IRB14UNM2	T-C16ILB14UNM2
	3/8	13	.04	.05	T-C16ERB13UNM2	T-C16ELB13UNM2	-	-	-	-
	3/8	12	.04	.06	T-C16ERB12UNM2	T-C16ELB12UNM2	.04	.06	T-C16IRB12UNM2	T-C16ILB12UNM2
	3/8	11	.04	.06	T-C16ERB11UNM2	T-C16ELB11UNM2	-	-	-	-
	3/8	10	.04	.06	T-C16ERB10UNM2	T-C16ELB10UNM2	.04	.06	T-C16IRB10UNM2	T-C16ILB10UNM2
	3/8	9	.05	.07	T-C16ERB9UNM2	T-C16ELB9UNM2	-	-	-	-
	3/8	8	.05	.06	T-C16ERB8UNM2	T-C16ELB8UNM2	.04	.06	T-C16IRB8UNM2	T-C16ILB8UNM2

BMA (Carmex Grade) / B4 (Exact Tooling Grade) Inserts for Superalloys, Stainless Steels

			EXTERNAL				INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	X	Y	Right Hand Part Number	Left Hand Part Number
16	3/8	24	.03	.03	T-C16ERB24UNB4	T-C16ELB24UNB4	.03	.03	T-C16IRB24UNB4	T-C16ILB24UNB4
	3/8	20	.03	.04	T-C16ERB20UNB4	T-C16ELB20UNB4	.03	.04	T-C16IRB20UNB4	T-C16ILB20UNB4
	3/8	18	.03	.04	T-C16ERB18UNB4	T-C16ELB18UNB4	.03	.04	T-C16IRB18UNB4	T-C16ILB18UNB4
	3/8	16	.04	.04	T-C16ERB16UNB4	T-C16ELB16UNB4	.04	.04	T-C16IRB16UNB4	T-C16ILB16UNB4
	3/8	14	.04	.05	T-C16ERB14UNB4	T-C16ELB14UNB4	.04	.05	T-C16IRB14UNB4	T-C16ILB14UNB4
	3/8	13	.04	.05	T-C16ERB13UNB4	T-C16ELB13UNB4	-	-	-	-
	3/8	12	.04	.06	T-C16ERB12UNB4	T-C16ELB12UNB4	.04	.06	T-C16IRB12UNB4	T-C16ILB12UNB4
	3/8	11	.04	.06	T-C16ERB11UNB4	T-C16ELB11UNB4	-	-	-	-
	3/8	10	.04	.06	T-C16ERB10UNB4	T-C16ELB10UNB4	.04	.06	T-C16IRB10UNB4	T-C16ILB10UNB4
	3/8	9	.05	.07	T-C16ERB9UNB4	T-C16ELB9UNB4	-	-	-	-
	3/8	8	.05	.06	T-C16ERB8UNB4	T-C16ELB8UNB4	.04	.06	T-C16IRB8UNB4	T-C16ILB8UNB4

K20 (Carmex Grade) / K2 (Exact Tooling Grade) Inserts for Aluminum, Non Ferrous

			EXTERNAL				INTERNAL
Insert Series	I.C.	Pitch TPI	X	Y	Right Hand Part Number	Left Hand Part Number	X	Y	Right Hand Part Number	Left Hand Part Number
16	3/8	24	.03	.03	T-C16ERB24UNK2	T-C16ELB24UNK2	.03	.03	T-C16IRB24UNK2	T-C16ILB24UNK2
	3/8	20	.03	.04	T-C16ERB20UNK2	T-C16ELB20UNK2	.03	.04	T-C16IRB20UNK2	T-C16ILB20UNK2
	3/8	18	.03	.04	T-C16ERB18UNK2	T-C16ELB18UNK2	.03	.04	T-C16IRB18UNK2	T-C16ILB18UNK2
	3/8	16	.04	.04	T-C16ERB16UNK2	T-C16ELB16UNK2	.04	.04	T-C16IRB16UNK2	T-C16ILB16UNK2
	3/8	14	.04	.05	T-C16ERB14UNK2	T-C16ELB14UNK2	.04	.05	T-C16IRB14UNK2	T-C16ILB14UNK2
	3/8	13	.04	.05	T-C16ERB13UNK2	T-C16ELB13UNK2	-	-	-	-
	3/8	12	.04	.06	T-C16ERB12UNK2	T-C16ELB12UNK2	.04	.06	T-C16IRB12UNK2	T-C16ILB12UNK2
	3/8	11	.04	.06	T-C16ERB11UNK2	T-C16ELB11UNK2	-	-	-	-
	3/8	10	.04	.06	T-C16ERB10UNK2	T-C16ELB10UNK2	.04	.06	T-C16IRB10UNK2	T-C16ILB10UNK2
	3/8	9	.05	.07	T-C16ERB9UNK2	T-C16ELB9UNK2	-	-	-	-
	3/8	8	.05	.06	T-C16ERB8UNK2	T-C16ELB8UNK2	.04	.06	T-C16IRB8UNK2	T-C16ILB8UNK2
