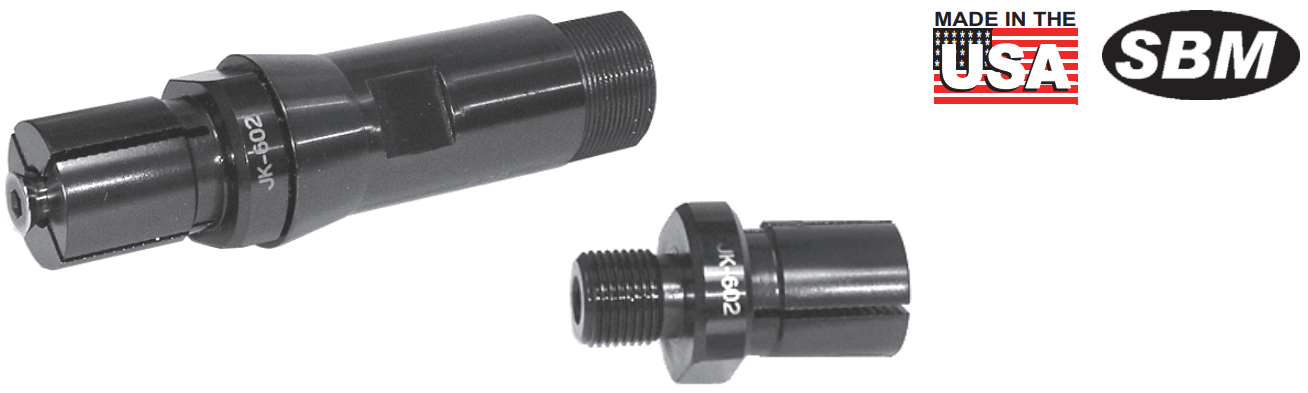

Expanding Collet System

EXPANDING COLLET SYSTEM
For 5C, 16C, 2J & 3J Collets
  • Suited for ID Holding
  • Complete system consists of:
    -Expanding Collet
    -Adapter
    -Expanding Screw
  • Machinable collet
  • Made in USA
Ordering is as easy as 1-2-3!
  1. Select Collet based on workpiece diameter and machinable length
  2. Select Adapter based on your spindle type
  3. Select Expanding Screw based on Collet Part Number in Step 1
Collet Range (diameter) 5/8” Length 1” Length 1-3/4” Length
Part No. Price Part No. Price Part No. Price
5/16” to 9/16” JK-601
$29.20 - - - -
1/2” to 1” - - JK-602
$29.63 JK-612
$31.74
1/2” to 1-1/2” - - JK-603
$31.74 JK-614
$36.83
1/2” to 2” - - JK-604
$35.56 JK-616
$41.90
1/2” to 2-1/2” - - JK-605
$41.90 JK-618
$48.26
1/2” to 3” - - JK-606
$49.52 - -
1/2” to 4” - - JK-607
$57.14 - -
1/2” to 5” - - JK-608
$64.75 - -
Above Collets Come With Expanding Screw
ADAPTER
Type Part No. Price
5C JK-698
$62.20
16C JK-699
$115.11
2J JK-695
$96.50
3J JK-696
$115.11
EXPANDING SCREWS
Using Collet Part Number Part Number Screw Price
JK-602 to JK-608 JK-1005
$5.12
JK-612 to JK-618 JK-1006
$5.12
JK-601* JK-1009
$6.49
Bolt for JK-1009 JK-1007
$3.44
Stud for JK-1008 JK-1008
$3.07
*JK-1009 consists of Bolt (JK-1007) & Stud (JK-1008)
