NIT-200 Series Chucks - 4 Jaw

NIT-200 SERIES CHUCKS-4 JAW
1.5mm x 60° Serrations Power Chucks
Chuck Size Chuck Model Chuck Dia. Thru-hole Dia. Mount Part Number Price Each
6” NIT206 6.653” 1.772” A2-5 K-F206A5-NIT-B
$2,240.00
8” NIT208 8.268” 2.047” A2-5 K-F208A05-NIT-B
$2,978.63
A2-6 K-F208A06-NIT-B
10” NIT210 10.000” 2.953” A2-6 K-F210A06-NIT-B
$3,387.25
A2-8 K-F210A08-NIT-B
12” NIT212 11.969” 3.585” A2-6 K-F212A06-NIT-B
$4,136.28
A2-8 K-F212A08-NIT-B
Model Thru-hole (mm) Plunger Stroke (mm) Jaw Stroke (mm) Max. Draw Bar Pull (kgf) Max Gripping Force (kgf) Max. Operating Pressure (kgf/cm) Max Speed (RPM) Matching Cylinder
NIT-206
NIT-208
NIT-210
NIT-212
45
52
75
91
12
16
19
23
5.5
7.4
8.8
10.6
2243
3558
4385
5812
5812
9075
11319
14990
28.5
26.5
27.5
27.5
4500
3600
3200
2700
M1246
M1552
M1875
M2091

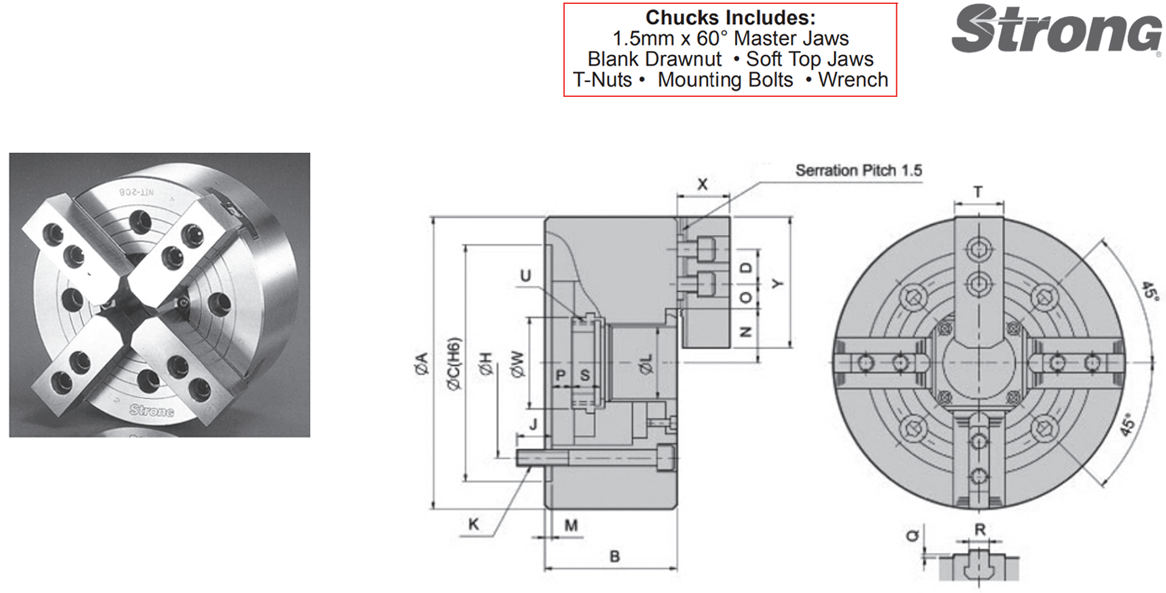

Model A B C (H6) D H J K L M N max. O max. O min. P max. P min. Q R S T U max. W X Y
NIT-206 169 81 140 20 104.78 16 4-M10x80 45 5 32 22.75 9.25 11 -1 2 12 19 31 M55X2 60 37 73
NIT-208 210 91 170 25 133.35 20 4-M12x90 52 5 38.7 29.75 14.75 14.5 -1 2 14 20.5 35 M60X2 66 38 95
NIT-210 254 100 220 30 171.45 22 4-M16x100 75 6 51 33.75 14.25 8.5 -10.5 2 16 25 40 M85X2 94 43 110
NIT-212 304 110 220 30 171.45 23 4-M16x110 91 6 61.3 45.75 15.75 8 -15 2 21 28 50 M100X2 108 51 130
NIT-215 381 133 300 43 235 35 4-M20x135 117.5 6 82 45.25 16.75 7 -16 5 22 43 62 M130X2 139 66 165
