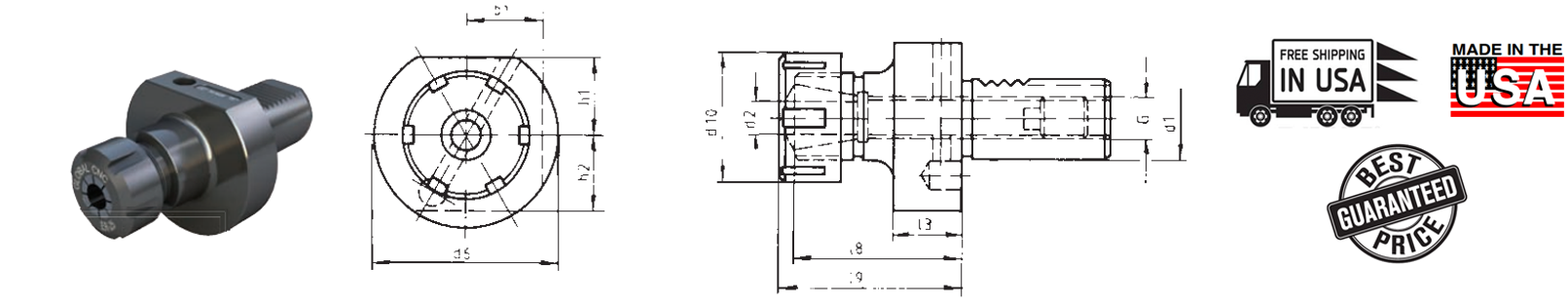

Collet Chuck – Form E3 (ER & RDO Style)

Collet Chuck – Form E3
ER & RDO Style
Inch sizes can be ordered online. For mm size please call to order.
d1 d2 in d2 mm d6 d10 b1 L3 L8 L9 h1 h2 G Collet Type Part Number Price
16 1/32 - 3/8 1/2 - 10 40 28 13 30 40 18 18 5/16 - 24 ER16       CNC86 53.1616
CALL
16 1/32 - 9/16 1 - 12 40 34 13 33 45 18 18 5/16 - 24 ER20       CNC86 53.1620
CALL
20 1/32 - 3/8 1/2 - 10 50 28 18 30 40 23 23 3/8 - 24 ER16       CNC86 53.2016
CALL
20 1/32 - 5/8 1 - 16 50 42 18 38 50 23 23 3/8 - 24 ER25       CNC86 53.2025
CALL
20 1/16 - 3/4 2 - 20 50 50 18 48 60 23 23 3/8 - 24 ER32       CNC86 53.2032
CALL
20 3/32 - 1-1/32 3 - 25 50 63 18 52 66 23 23 3/8 - 24 ER40       CNC86 53.2040
CALL
25 1/32 - 5/8 1 - 16 58 42 18 38 50 25 25 3/8 - 24 ER25       CNC86 53.2525
CALL
25 1/16 - 3/4 2 - 20 58 50 18 48 60 25 25 3/8 - 24 ER32       CNC86 53.2532
CALL
30 1/32 - 5/8 1 - 16 68 42 30 22 63 75 28 30 5/8 - 18 ER25       CNC86 53.3025
CALL
30 1/16 - 3/4 2 - 20 68 50 30 22 63 75 28 30 5/8 - 18 ER32       CNC86 53.3032
CALL
30 3/32 - 1-1/32 3 - 25 68 63 30 22 61 75 28 30 5/8 - 18 ER40       CNC86 53.3040
CALL
40 1/32 - 5/8 1 - 16 83 42 22 63 75 32.5 5/8 - 18 ER25       CNC86 53.4025
CALL
40 1/16 - 3/4 2 - 20 83 50 22 63 75 32.5 5/8 - 18 ER32       CNC86 53.4032
CALL
40 3/32 - 1-1/32 3 - 25 83 63 22 61 75 32.5 5/8 - 18 ER40       CNC86 53.4040
CALL
50 3/32 - 1-1/32 3 - 25 98 63 30 61 75 35 5/8 - 18 ER40       CNC86 53.5040
CALL
60 3/32 - 1-1/32 3 - 25 123 63 30 61 75 42.5 5/8 - 18 ER40       CNC86 53.6040
CALL
20 1/16 - 5/8 1-1/2 - 16 50 43 18 43 57 23 23 5/8 - 18 EX25       CNC86 53.20415
CALL
25 1/16 - 5/8 1-1/2 - 16 58 43 18 48 62 25 25 5/8 - 18 EX25       CNC86 53.25415
CALL
30 1/16 - 5/8 1-1/2 - 16 68 43 30 22 47 57 28 30 5/8 - 18 EX25       CNC86 53.30415
CALL
30 1/16 - 1 1-1/2 - 25 68 60 22 59 75 28 30 5/8 - 18 EX32       CNC86 53.30462
CALL
40 1/16 - 5/8 1-1/2 - 16 83 43 30 22 43 57 32.5 5/8 - 18 EX25       CNC86 53.40415
CALL
40 1/16 - 1 1-1/2 - 25 83 60 30 22 59 75 32.5 5/8 - 18 EX32       CNC86 53.40462
CALL
40 1/8 - 1-1/4 3-1/2 - 32 83 72 30 78 90 32.5 5/8 - 18 EX40       CNC86 53.40467
CALL
50 1/16 - 1 1-1/2 - 25 98 60 30 59 75 35 5/8 - 18 EX32       CNC86 53.50462
CALL
50 1/8 - 1-1/4 3-1/2 - 32 98 72 30 78 90 35 5/8 - 18 EX40       CNC86 53.50467
CALL
60 1/8 - 1-1/4 3-1/2 - 32 123 72 30 78 90 42.5 5/8 - 18 EX40       CNC86 53.60467
CALL
