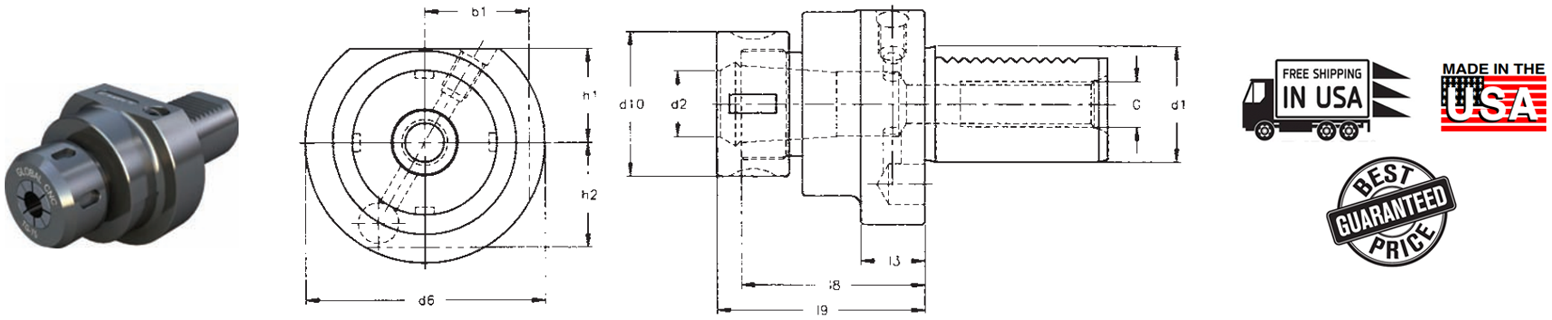

Collet Chuck – Form E3 (TG75 and TG100 Style)

Collet Chuck – Form E3
TG75 and TG100 Style
Inch sizes can be ordered online. For mm size please call to order.
d1 d2 inch d6 d10 b1 L3 L8 L9 h1 h2 G Collet Type Part Number Price
30 3/64 - 3/4 68 50 30 22 63 77.4 28 30 5/8 - 18 75TG       CNC86 53.3075TG
CALL
30 3/32 - 1 68 60 30 22 63 82.1 28 30 5/8 - 18 100TG       CNC86 53.30100TG
CALL
40 3/64 - 3/4 83 50 22 63 77.4 32.5 5/8 - 18 75TG       CNC86 53.4075TG
CALL
40 3/32 - 1 83 60 22 63 82.1 32.5 5/8 - 18 100TG       CNC86 53.40100TG
CALL
50 3/64 - 3/4 98 50 30 71 77.4 35 5/8 - 18 75TG       CNC86 53.5075TG
CALL
50 3/32 - 1 98 60 30 71 82.1 35 5/8 - 18 100TG       CNC86 53.50100TG
CALL
60 3/64 - 3/4 123 50 30 71 77.4 42.5 5/8 - 18 75TG       CNC86 53.6075TG
CALL
60 3/32 - 1 123 60 30 71 82.1 42.5 5/8 - 18 100TG       CNC86 53.60100TG
CALL
80 3/64 - 3/4 158 50 40 63 77.4 55 5/8 - 18 75TG       CNC86 53.8075TG
CALL
80 3/32 - 1 158 60 40 63 82.1 55 5/8 - 18 100TG       CNC86 53.80100TG
CALL
