ARBOR PRESSES

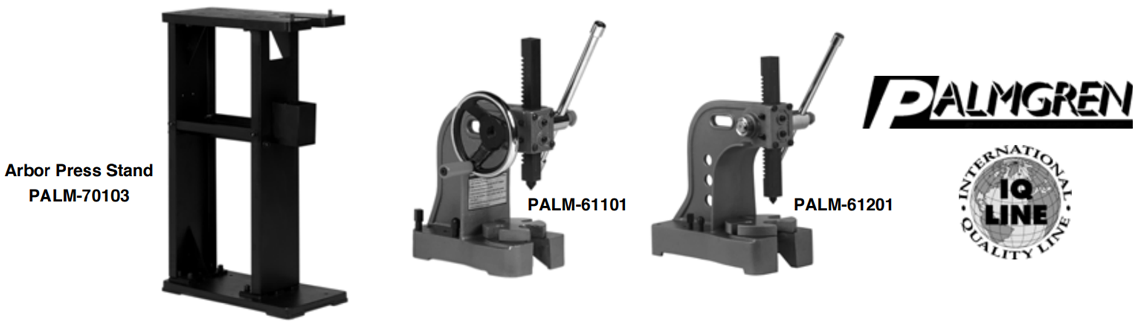

The Palmgren arbor press delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications. Sturdy, cast-iron construction. Removable machined steel anvil provides accurate work support in four slot positions. Rugged steel ram is driven by a machined pinion. Punches or tools may
be added to the end of the ram with the aid of a magnetic insert. Base drilled for mounting on a bench or pedestal. PALM-61101 is equipped with a handwheel to perform light and quick press work.
The Arbor Press Stand provides a sturdy base and optimal height for easy operation. It has a slot on the top for pieces which need to extend below the base of the press table. Stand comes with built-in cup for catching expressed pieces. Base and top are
cast iron; body of welded steel. Fits all 2-4 ton presses. Prices are pulled from our database in real time. Press Add button to see product price.
Arbor Press Stand
The Palmgren arbor press delivers the heavy force needed for riveting, squeezing, punching, bending, and other pressing applications. Sturdy, cast-iron construction. Removable machined steel anvil provides accurate work support in four slot positions. Rugged steel ram is driven by a machined pinion. Punches or tools may
be added to the end of the ram with the aid of a magnetic insert. Base drilled for mounting on a bench or pedestal. PALM-61101 is equipped with a handwheel to perform light and quick press work.
The Arbor Press Stand provides a sturdy base and optimal height for easy operation. It has a slot on the top for pieces which need to extend below the base of the press table. Stand comes with built-in cup for catching expressed pieces. Base and top are
cast iron; body of welded steel. Fits all 2-4 ton presses. Prices are pulled from our database in real time. Press Add button to see product price.
Force Ton |
Swing | Anvil Dia. |
Max Work Hgt. |
Ram Dim. |
Height | Base Dimension |
Wgt | Part Number |
0.5 | 7-1/2” | 3-3/8” | 4-1/2” | 3/4” x 3/4” | 9-3/8” | 5-1/8” x 9-3/8” | 22 lbs | PALM-61051 |
1 | 8” | 4-7/16” | 6-1/8” | 1” x 1” | 11-1/8” | 6-5/16 x 10-3/4” | 27 lbs | PALM-61101 |
2 | 11-7/8” | 6-5/8” | 8” | 1-1/4” x 1-1/4” | 15-1/8” | 11-1/8 x 16” | 64 lbs | PALM-61201 |
3 | 12-1/2” | 6-5/8” | 12-5/8” | 1-1/2” x 1-1/2” | 21” | 7-7/8 x 17-7/8” | 102 lbs | PALM-61301 |
Top Dimension | Base Dimension | Height | Wgt | Part Number |
11-13/16” x 22-1/16” | 11-13/16” x 22-1/4” | 33-13/16” | 100 lbs | PALM-70103 |
