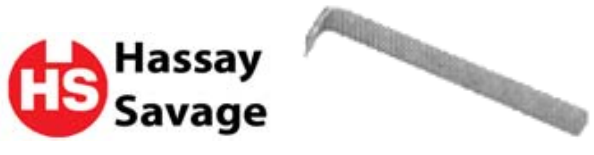

Extra Shims
FOR STANDARD KEYWAY BROACHES
HIGH SPEED STEEL-AMERICAN STANDARD
Shims are designed to be placed between the bushing and the broach
to allow the broach to cut deeper slots in the hole in succeeding passes. Prices are pulled from our database in real time. Press Add button to see product price.
| Broach Size/Type | Thick. | Length x Width | Part Number |
| 1/8 I | .031 | 1 3/8 X 1/8 | HS-30108 |
| 1/8 II | .031 | 1 7/8 X 3/16 | HS-30208 |
| 5/32 II | .042 | 1 7/8 X 3/16 | HS-30210 |
| 3/16 II | .050 | 1 7/8 X 3/16 | HS-30212 |
| 3/16 III | .050 | 2 7/8 X 3/8 | HS-30312 |
| 1/4 III | .062 | 2 7/8 X 3/8 | HS-30316 |
| 5/16 III | .078 | 2 7/8 X 3/8 | HS-30320 |
| 3/8 III | .062 | 2 7/8 X 3/8 | HS-30324 |
| 5/16 IV | .078 | 6/1/4 X 9/16 | HS-30420 |
| 3/8 IV | .062 | 6/1/4 X 9/16 | HS-30424 |
| 7/16 IV | .075 | 6/1/4 X 9/16 | HS-30428 |
| 1/2 IV | .062 | 6/1/4 X 9/16 | HS-30432 |
| 5/8 V | .062 | 6 3/4 X 3/4 | HS-30540 |
| 3/4 V | .062 | 6 3/4 X 3/4 | HS-30548 |
| 7/8 VI | .062 | 6 3/4 X 1 | HS-30656 |
| 1" VI | .062 | 6 3/4 X 1 | HS-30664 |
| 1.125 | .062 | 7 X 1 1/8 | HS-30740 |
| 1.25 | .062 | 7 X 1 1/4 | HS-30750 |
| 1.375 | .062 | 7 X 1 1/4 | HS-30760 |
| 1.5 | .062 | 7 X 1 1/4 | HS-30770 |
