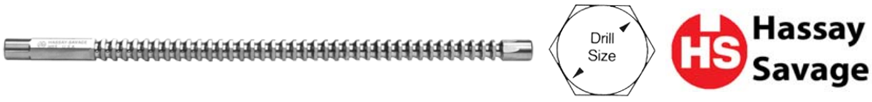

Standard Hexagon Push Broaches
HIGH SPEED STEEL
Used to cut hexagonal shaped holes in machined round holes. Designed to allow broach to
start in a plain round hole and cut a precisely shaped hexagonal hole in a single pass. Designed
to be used with an arbor press or manually, it is suited for use in a variety of non-ferrous and
ferrous materials.
FEATURES:
- Each tooth is progressively larger and cuts slightly deeper than the previous tooth
- Manufactured from high speed steel
- Ground and hardened bar with cutting teeth on the edges
- Also available in metric sizes
| Hex Size | Tolerance | Pilot Dia | Drill Size | Broach Length | Min LOC | Max LOC | Part Number |
| 1/8 | .1255-.1260 | .1245 | 1/8 | 4 5/8 | 3/16 | 3/8 | HS-12008 |
| 5/32 | .1565-.1570 | .1557 | 5/32 | 5 1/2 | 1/4 | 1/2 | HS-12010 |
| 3/16 | .1880-.1890 | .1870 | 3/16 | 5 9/16 | 1/4 | 5/8 | HS-12012 |
| 7/32 | .2190-.2200 | .2182 | 7/32 | 6 | 1/4 | 3/4 | HS-12014 |
| 1/4 | .2505-.2515 | .2495 | 1/4 | 6 1/2 | 1/4 | 3/4 | HS-12016 |
| 9/32 | .2815-.2825 | .2807 | 9/32 | 7 3/4 | 3/8 | 1 | HS-12018 |
| 5/16 | .3130-.3140 | .3120 | 5/16 | 8 1/4 | 3/8 | 1 | HS-12020 |
| 11/32 | .3440-.3450 | .3432 | 11/32 | 8 1/4 | 3/8 | 1 1/4 | HS-12022 |
| 3/8 | .3755-.3765 | .3745 | 3/8 | 9 | 3/8 | 1 1/4 | HS-12024 |
| 13/32 | .4065-.4075 | .4057 | 13/32 | 10 | 1/2 | 1 3/8 | HS-12026 |
| 7/16 | .4385-.4395 | .4370 | 7/16 | 10 3/4 | 1/2 | 1 3/8 | HS-12028 |
| 15/32 | .4690-.4700 | .4682 | 15/32 | 12 3/8 | 1/2 | 1 3/8 | HS-12030 |
| 1/2 | .5005-.5015 | .4995 | 1/2 | 12 1/2 | 1/2 | 1 3/8 | HS-12032 |
| 9/16 | .5630-.5640 | .5620 | 9/16 | 14 1/4 | 1/2 | 1 1/2 | HS-12036 |
| 5/8 | .6260-.6270 | .6245 | 5/8 | 16 7/8 | 1/2 | 1 5/8 | HS-12040 |
| 11/16 | .6880-.6890 | .6870 | 11/16 | 17 | 5/8 | 1 5/8 | HS-12044 |
| 3/4 | .7510-.7520 | .7495 | 3/4 | 17 7/8 | 5/8 | 1 5/8 | HS-12048 |
| 7/8 | .8755-.8765 | .8745 | 7/8 | 18 7/8 | 5/8 | 1 5/8 | HS-12056 |
| 1" | 1.0020-1.0030 | .9995 | 1 | 19 7/8 | 5/8 | 1 5/8 | HS-12064 |
