Keyway Bushings

KEYWAY BUSHINGS

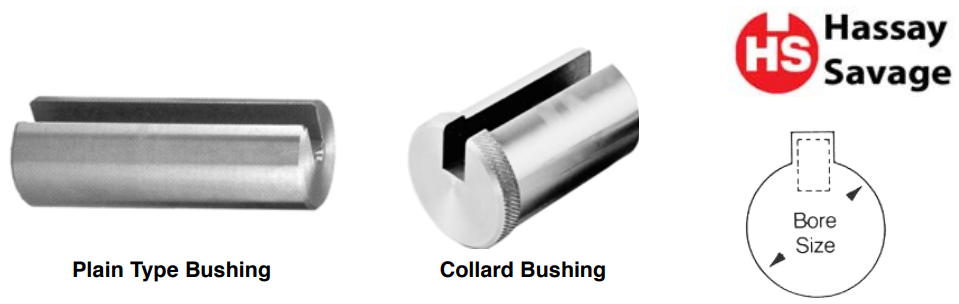

KNURLED COLLAR & PLAIN TYPE
Designed for use with standard keyway broaches for cutting keyways in machined holes.
Keyway bushings act as a guide to guide the keyway broach through the hole.
Plain Type: Used with Type IV & V broaches
Knurled Collar Type: Designed for use with Type I, II & III broaches Prices are pulled from our database in real time. Press Add button to see product price.
I Collared Bushings for I Broaches

Dia/Type	Length	Part Number
1/4 I	1 1/8	HS-20116 Add
5/16 I	1 1/8	HS-20120 Add
3/8 I	1 1/8	HS-20124 Add
7/16 I	1 1/8	HS-20128 Add
1/2 I	1 1/8	HS-20132 Add

II Collared Bushings for II Broaches

Dia/Type	Length	Part Number
1/2 II	1 11/16	HS-20232 Add
9/16 II	1 11/16	HS-20236 Add
5/8 II	1 11/16	HS-20240 Add
11/16 II	1 11/16	HS-20244 Add
3/4 II	1 11/16	HS-20248 Add
13/16 II	1 11/16	HS-20252 Add
7/8 II	1 11/16	HS-20256 Add

III Collared Bushings for III Broaches

Dia/Type	Length	Part Number
3/4 III	2 1/2	HS-20348 Add
13/16 III	2 1/2	HS-20352 Add
7/8 III	2 1/2	HS-20356 Add
15/16 III	2 1/2	HS-20360 Add
1" III	2 1/2	HS-20364 Add
1 1/16 III	2 1/2	HS-20368 Add
1 1/8 III	2 1/2	HS-20372 Add
1 3/16 III	2 1/2	HS-20376 Add
1 1/4 III	2 1/2	HS-20380 Add
1 5/16 III	2 1/2	HS-20384 Add
1 3/8 III	2 1/2	HS-20388 Add
1 7/16 III	2 1/2	HS-20392 Add
1 1/2 III	2 1/2	HS-20396 Add
1 9/16 III	2 1/2	HS-20400 Add

IV Plain Bushings for IV Broaches

Dia/Type	Length	Part Number
1 7/16	4	HS-21492 Add
1 1/2	4	HS-21496 Add
1 9/16	4	HS-21500 Add
1 5/8	4	HS-21504 Add
1 11/16	4	HS-21508 Add
1 3/4	4	HS-21512 Add
1 13/16	5	HS-21516 Add
1 7/8	5	HS-21520 Add
1 15/16	5	HS-21524 Add
2”	5	HS-21528 Add
2 1/16	5	HS-21532 Add
2 1/8	5	HS-21536 Add
2 3/16	5	HS-21540 Add
2 1/4	5	HS-21544 Add
2 5/16	5	HS-21548 Add
2 3/8	6	HS-21552 Add
2 7/16	6	HS-21556 Add
2 1/2	6	HS-21560 Add
2 9/16	6	HS-21564 Add
2 5/8	6	HS-21568 Add
2 11/16	6	HS-21572 Add
2 3/4	6	HS-21576 Add
2 13/16	6	HS-21580 Add
2 7/8	6	HS-21584 Add
2 15/16	6	HS-21588 Add
3	6	HS-21592 Add
