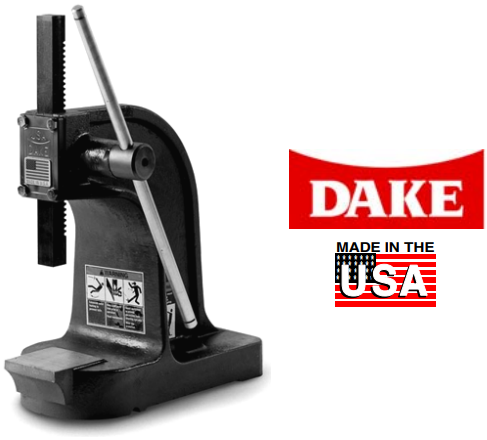

Single Leverage Arbor Presses
- Shimmed ram cap permits take-up for potential wear
- Adjustable handle allows convenient handle positioning
- Smooth action gears permits finite ram control
- Base opening and slotted table plate for arbor work on models noted
- Pedestals also available
| Force Ton |
Leverage Ratio |
Table Type |
RAM Size | Max Work Dia |
Throat | Base Dimension |
Wgt | Part Number |
| 1 | 25:1 | Solid | 1” x 1” x 7-1/2” | 7” | 3-1/2” | 4-1/4” x 9-1/2” | 25 lbs | DAKE-01001 |
| 1-1/2 | 32:1 | Solid | 1” x 1” x 12” | 9” | 4-1/2” | 6” x 15” | 60 lbs | DAKE-01002 |
| 1 | 25:1 | Slotted | 1” x 1” x 7-1/2” | 7” | 3-1/2” | 4-1/4” x 9” | 25 lbs | DAKE-01004 |
| 1-1/2 | 32:1 | Slotted | 1” x 1” x 12” | 9” | 4-1/2” | 6” x 14” | 65 lbs | DAKE-01005 |
| 3 | 36:1 | Slotted | 1-1/4” x 1-1/4” x 16-1/2” | 14” | 7” | 7-1/4” x 18” | 130 lbs | DAKE-01006 |
| Description | Dimension w x d x h |
Wgt | Part Number |
| Pedestal for Models 01002 & 01005 | 10” X 18” X 36” | 50 | DAKE-01003 |
| Pedestal for Model 01006 | 12” x 21” x 36” | 70 | DAKE-01007 |
