Standard Brazed Tools

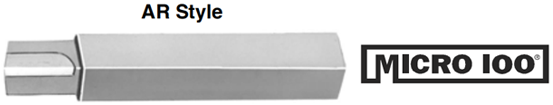

STYLE AR & AL
Prices are pulled from our database in real time. Press Add button to see product price.
STYLE BR & BL Prices are pulled from our database in real time. Press Add button to see product price.
STYLE IDLT Prices are pulled from our database in real time. Press Add button to see product price.
STYLE CT Prices are pulled from our database in real time. Press Add button to see product price.
STYLE C Prices are pulled from our database in real time. Press Add button to see product price.
STYLE D Prices are pulled from our database in real time. Press Add button to see product price.
STYLE E Prices are pulled from our database in real time. Press Add button to see product price.
Prices are pulled from our database in real time. Press Add button to see product price.
Tool Style |
Square | OAL | Right Hand Part Number |
Left Hand Part Number |
AR4 | 1/4 | 2 | MI-AR4 | MI-AL4 |
AR5 | 5/16 | 2-1/4 | MI-AR5 | MI-AL5 |
AR6 | 3/8 | 2-1/2 | MI-AR6 | MI-AL6 |
AR7 | 7/16 | 3 | MI-AR7 | MI-AL7 |
AR8 | 1/2 | 3-1/2 | MI-AR8 | MI-AL8 |
AR10 | 5/8 | 4 | MI-AR10 | MI-AL10 |
AR12 | 3/4 | 4-1/2 | MI-AR12 | MI-AL12 |

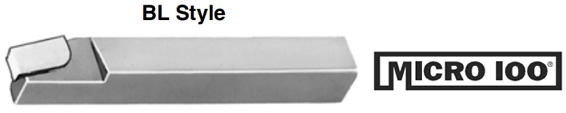

STYLE BR & BL Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | TIP | Right Hand Part Number |
Left Hand Part Number |
|||||
A | B | C | T | W | L | R | ||
3/8 | 3/8 | 2-1/2 | 1/8 | 1/4 | 1/2 | 1/64 | MI-BR6 | MI-BL6 |
7/16 | 7/16 | 3 | 1/8 | 1/4 | 1/2 | 1/32 | MI-BR7 | MI-BL7 |
1/2 | 1/2 | 3-1/2 | 1/8 | 1/4 | 5/8 | 1/32 | MI-BR8 | MI-BL8 |
5/8 | 5/8 | 4 | 5/32 | 3/8 | 3/4 | 1/32 | MI-BR10 | MI-BL10 |
3/4 | 3/4 | 4-1/2 | 3/16 | 7/16 | 13/16 | 1/32 | MI-BR12 | MI-BL12 |
STYLE IDLT Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | Thread Dia. |
Neck Length |
Right Hand Part Number |
Left Hand Part Number |
||
A | B | C | ||||
3/8 | 3/8 | 2-1/2 | .450 | 0.500 | MI-IDRT60 | MI-IDLT60 |
3/8 | 3/8 | 2-1/2 | .450 | 1.000 | MI-IDRT61 | MI-IDLT61 |
1/2 | 1/2 | 3-1/2 | .575 | 0.750 | MI-IDRT80 | MI-IDLT80 |
1/2 | 1/2 | 3-1/2 | .575 | 1.250 | MI-IDRT81 | MI-IDLT81 |

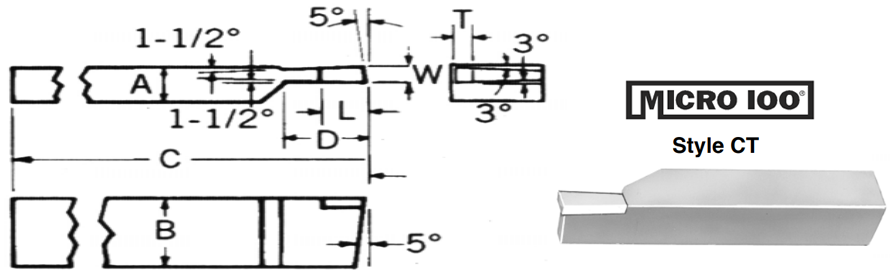

STYLE CT Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | TIP | Part Number | |||||
A | B | C | D | T | W | L | |
1/2 | 1 | 5 | 13/16 | 1/8 | 3/16 | 3/4 | MI-CT122 |
1/2 | 1 | 5 | 1 | 3/16 | 5/16 | 7/16 | MI-CT120 |
1/2 | 1 | 5 | 1 | 1/8 | 1/4 | 3/4 | MI-CT121 |
5/8 | 1-1/4 | 5 | 1-1/4 | 3/16 | 3/8 | 1/2 | MI-CT130 |
3/4 | 1-1/2 | 6 | 1-1/4 | 3/16 | 3/8 | 5/8 | MI-CT140 |

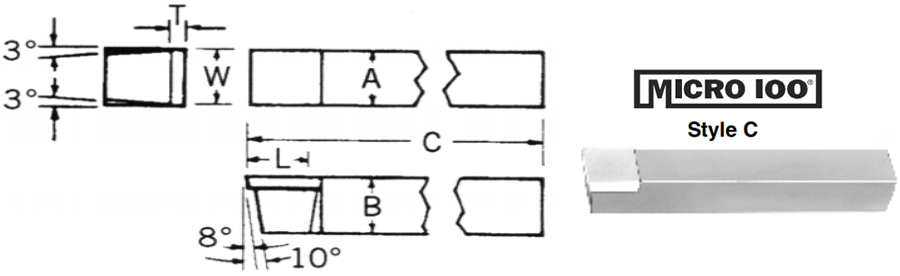

STYLE C Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | TIP | Part Number | ||||
A | B | C | T | W | L | |
1/4 | 1/4 | 2 | 1/16 | 1/4 | 1/4 | MI-C4 |
5/16 | 5/16 | 2-1/4 | 3/32 | 5/16 | 3/8 | MI-C5 |
3/8 | 3/8 | 2-1/2 | 3/32 | 3/8 | 3/8 | MI-C6 |
7/16 | 7/16 | 3 | 3/32 | 7/16 | 1/2 | MI-C7 |
1/2 | 1/2 | 3-1/2 | 1/8 | 1/2 | 1/2 | MI-C8 |
5/8 | 5/8 | 4 | 5/32 | 5/8 | 5/8 | MI-C10 |
3/4 | 3/4 | 4-1/2 | 3/16 | 3/4 | 3/4 | MI-C12 |

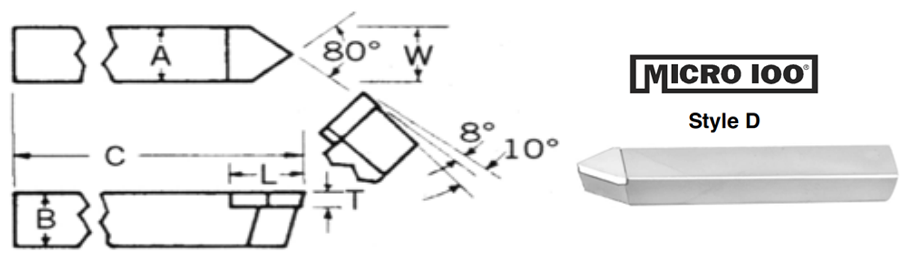

STYLE D Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | TIP | Part Number | ||||
A | B | C | T | W | L | |
1/4 | 1/4 | 2 | 1/16 | 1/4 | 5/16 | MI-D4 |
5/16 | 5/16 | 2-1/4 | 3/32 | 5/16 | 3/8 | MI-D5 |
3/8 | 3/8 | 2-1/2 | 3/32 | 3/8 | 1/2 | MI-D6 |
7/16 | 7/16 | 3 | 3/32 | 7/16 | 1/2 | MI-D7 |
1/2 | 1/2 | 3-1/2 | 1/8 | 1/2 | 1/2 | MI-D8 |
5/8 | 5/8 | 4 | 5/32 | 5/8 | 5/8 | MI-D10 |
3/4 | 3/4 | 4-1/2 | 3/16 | 3/4 | 3/4 | MI-D12 |
STYLE E Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | TIP | Right Hand Part Number |
Left Hand Part Number |
|||||
A | B | C | F | T | W | L | ||
5/16 | 5/16 | 2-1/4 | 1/16 | 3/32 | 1/4 | 3/8 | MI-ER5 | MI-EL5 |
3/8 | 3/8 | 2-1/2 | 1/16 | 3/32 | 1/4 | 3/8 | MI-ER6 | MI-EL6 |
1/2 | 1/2 | 3-1/2 | 3/32 | 1/8 | 5/16 | 5/8 | MI-ER8 | MI-EL8 |
5/8 | 5/8 | 4 | 3/32 | 1/8 | 5/16 | 5/8 | MI-ER10 | MI-EL10 |
3/4 | 3/4 | 4-1/2 | 1/8 | 5/32 | 3/8 | 3/4 | MI-ER12 | MI-EL12 |
Prices are pulled from our database in real time. Press Add button to see product price.
SHANK | TIP | Part Number | ||||
A | B | C | T | W | L | |
5/16 | 5/16 | 2-1/4 | 3/32 | 5/16 | 3/8 | MI-E5 |
3/8 | 3/8 | 2-1/2 | 3/32 | 3/8 | 1/2 | MI-E6 |
1/2 | 1/2 | 3-1/2 | 1/8 | 1/2 | 1/2 | MI-E8 |
5/8 | 5/8 | 4 | 5/32 | 5/8 | 5/8 | MI-E10 |
3/4 | 3/4 | 4-1/2 | 3/16 | 3/4 | 3/4 | MI-E12 |
