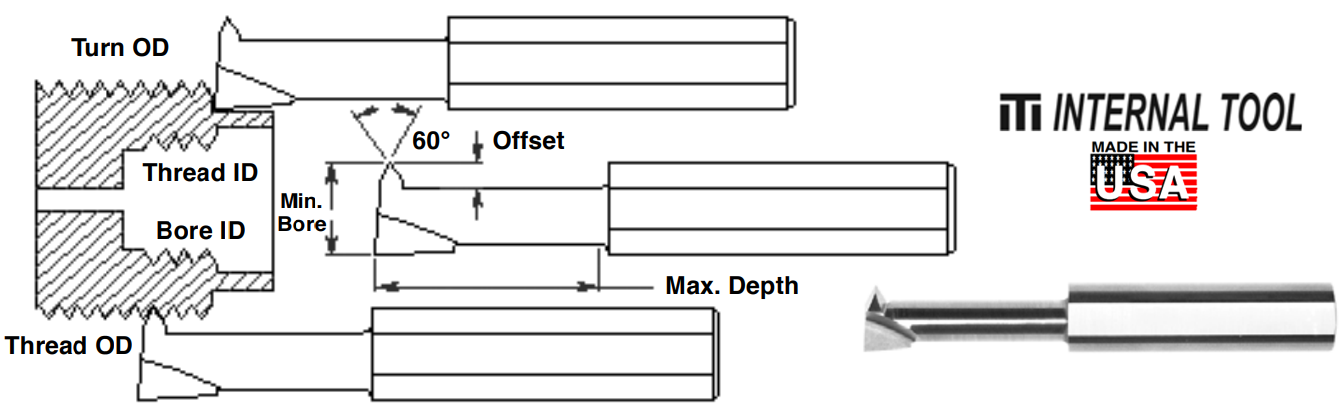

Combination Bore & Thread Tool

COMBINATION BORE & THREAD TOOL
Bore and thread with the same tool!
  • Micrograin carbide
  • Right hand cutting
Save a Tool Position!
Prices are pulled from our database in real time. Press Add button to see product price.
Tool
ID No.
Max
Depth
Thread
Width
Min
Bore
Offset Shank OAL Part Number
CM-240-500 .500 .055 1/4 .050 1/4 2 1/2 IT-50-1100
CM-240-750 .750 IT-50-1105
CM-240-1000 1.000 IT-50-1110
CM-310-500 .500 .065 5/16 .060 5/16 2 1/2 IT-50-1115
CM-310-750 .750 IT-50-1120
CM-310-1000 1.000 IT-50-1125
CM-360-500 .500 .090 3/8 .080 3/8 2 1/2 IT-50-1130
CM-360-750 .750 IT-50-1135
CM-360-1000 1.000 IT-50-1140
