Solid Carbide Groove Tools
- For retaining ring grooves
- Lockdown flat automatically locates tool on center
- Micrograin carbide
- Made in USA
Shank Diameter -.0001 to -.0003”
Minimum Hole Dia. +.000 - .005”
Maximum Hole Depth +.050 - .000”
Overall Length +1/64” Prices are pulled from our database in real time. Press Add button to see product price.

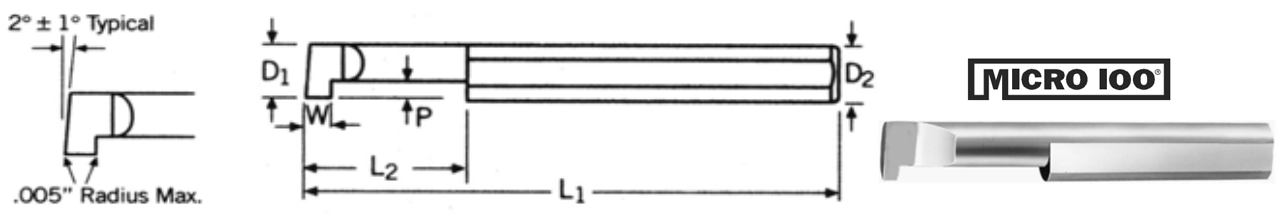

| Min. Bore D1 |
Shank Dia. D2 |
OAL L1 |
Proj. P |
Tool Width W |
Max. Depth L2 |
Part Number |
| .250 | 1/4 | 2-1/2 | .050 | .017/.018 | 1/4 | MI-RR0174 |
| 3/8 | MI-RR0176 | |||||
| 1/2 | MI-RR0178 | |||||
| 5/8 | MI-RR01710 | |||||
| .250 | 1/4 | 2-1/2 | .050 | .025/.026 | 1/4 | MI-RR0254 |
| 3/8 | MI-RR0256 | |||||
| 1/2 | MI-RR0258 | |||||
| 5/8 | MI-RR02510 | |||||
| .250 | 1/4 | 2-1/2 | .050 | .030/.031 | 1/4 | MI-RR0304 |
| 3/8 | MI-RR0306 | |||||
| 1/2 | MI-RR0308 | |||||
| 5/8 | MI-RR03010 | |||||
| .312 | 5/16 | 2-1/2 | .100 | .033/.034 | 1/4 | MI-RR0334 |
| 3/8 | MI-RR0336 | |||||
| 1/2 | MI-RR0338 | |||||
| 3/4 | MI-RR03312 | |||||
| .312 | 5/16 | 2-1/2 | .100 | .038/.039 | 1/4 | MI-RR0384 |
| 3/8 | MI-RR0386 | |||||
| 1/2 | MI-RR0388 | |||||
| 3/4 | MI-RR03812 | |||||
| .375 | 3/8 | 2-1/2 | .100 | .039/.041 | 1/4 | MI-RR0394 |
| 3/8 | MI-RR0396 | |||||
| 1/2 | MI-RR0398 | |||||
| 3/4 | MI-RR03912 | |||||
| 1 | MI-RR03916 | |||||
| 1-1/4 | MI-RR03920 | |||||
| .375 | 3/8 | 2-1/2 | .100 | .046/.048 | 1/4 | MI-RR0464 |
| 3/8 | MI-RR0466 | |||||
| 1/2 | MI-RR0468 | |||||
| 3/4 | MI-RR04612 | |||||
| 1 | MI-RR04616 | |||||
| 1-1/4 | MI-RR04620 | |||||
| .375 | 3/8 | 2-1/2 | .100 | .055/.057 | 1/4 | MI-RR0554 |
| 3/8 | MI-RR0556 | |||||
| 1/2 | MI-RR0558 | |||||
| 3/4 | MI-RR05512 | |||||
| 1 | MI-RR05516 | |||||
| 1-1/4 | MI-RR05520 | |||||
| .375 | 3/8 | 2-1/2 | .100 | .062/.064 | 1/4 | MI-RR0624 |
| 3/8 | MI-RR0626 | |||||
| 1/2 | MI-RR0628 | |||||
| 3/4 | MI-RR06212 | |||||
| 1 | MI-RR06216 | |||||
| 1-1/4 | MI-RR06220 | |||||
| .375 | 3/8 | 2-1/2 | .100 | .069/.071 | 1/4 | MI-RR0694 |
| 3/8 | MI-RR0696 | |||||
| 1/2 | MI-RR0698 | |||||
| 3/4 | MI-RR06912 | |||||
| 1 | MI-RR06916 | |||||
| 1-1/4 | MI-RR06920 | |||||
| .375 | 3/8 | 2-1/2 | .100 | .087/.089 | 1/4 | MI-RR0874 |
| 3/8 | MI-RR0876 | |||||
| 1/2 | MI-RR0878 | |||||
| 3/4 | MI-RR08712 | |||||
| 1 | MI-RR08716 | |||||
| 1-1/4 | MI-RR08720 | |||||
| .500 | 1/2 | 3 | .150 | .093/.095 | 1/2 | MI-RR0938 |
| 3/4 | MI-RR09312 | |||||
| 1 | MI-RR09316 | |||||
| 1-1/4 | MI-RR09320 | |||||
| 1-1/2 | MI-RR09324 | |||||
| .500 | 1/2 | 3 | .150 | .125/.127 | 1/2 | MI-RR1258 |
| 3/4 | MI-RR12512 | |||||
| 1 | MI-RR12516 | |||||
| 1-1/4 | MI-RR12520 | |||||
| 1-1/2 | MI-RR12524 | |||||
| .500 | 1/2 | 3 | .150 | .156/.158 | 1/2 | MI-RR1568 |
| 3/4 | MI-RR15612 | |||||
| 1 | MI-RR15616 | |||||
| .500 | 1/2 | 3 | .150 | .156/.158 | 1-1/4 | MI-RR15620 |
| 1-1/2 | MI-RR15624 | |||||
| .500 | 1/2 | 3 | .150 | .187/.189 | 1/2 | MI-RR1878 |
| 3/4 | MI-RR18712 | |||||
| 1 | MI-RR18716 | |||||
| 1-1/4 | MI-RR18720 | |||||
| .500 | 1/2 | 3 | .150 | .187/.189 | 1-1/2 | MI-RR18724 |
| .250/.252 | 1/2 | MI-RR2508 | ||||
| 3/4 | MI-RR25012 | |||||
| 1 | MI-RR25016 | |||||
| 1-1/4 | MI-RR25020 | |||||
| 1-1/2 | MI-RR25024 |
