Groove Tools for "O" Ring Grooves
N/C GENERATION
Shank Diameter -.0001 to - .0003”
Minimum Hole Dia. +.000 - .005”
Depth +.050 - .000”
Overall Length ±1/64” Prices are pulled from our database in real time. Press Add button to see product price.

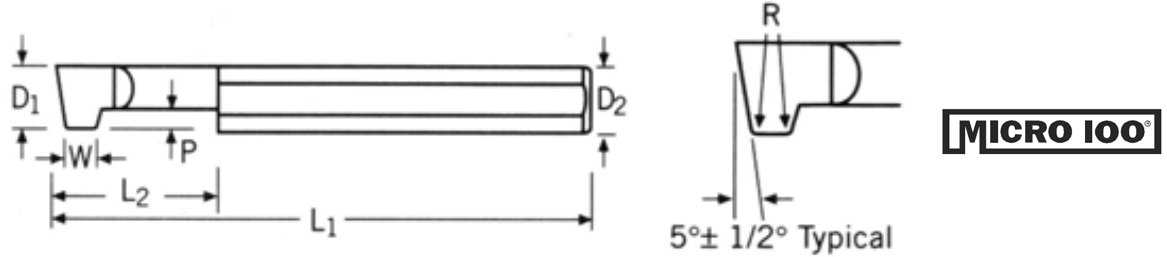

| Bore D1 |
Shank D2 |
OAL L1 |
Depth L2 |
Proj. P |
Radius R |
Width W |
Part Number |
| .250 | 1/4 | 2-1/2 | 1/2 | .100 | .010/.020 | .096/.098 | MI-OR0968 |
| 9/16 | .035/.045 | .141/.143 | MI-OR1419 | ||||
| 5/8 | .035/.045 | .144/.146 | MI-OR14410 | ||||
| .375 | 3/8 | 2-1/2 | 3/4 | .115 | .010/.020 | .174/.176 | MI-OR17412 |
| 13/16 | .035/.045 | .208/.210 | MI-OR20813 | ||||
| 15/16 | .035/.045 | .241/.243 | MI-OR24115 |
