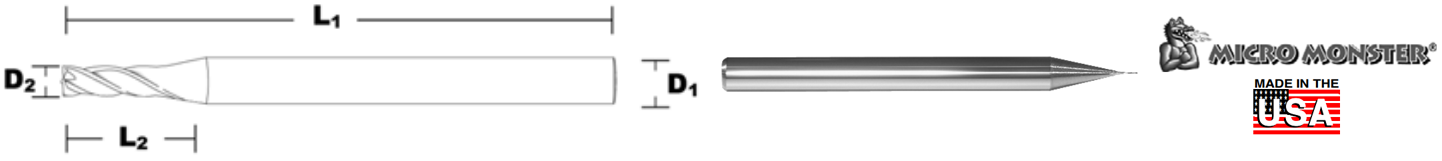

Miniature Endmills - Square End

SQUARE END-2 & 4 FLUTE
CENTER CUTTING, 30° HELIX
1/8” Shank, 1-1/2” OAL

Manufactured from the highest quality carbide material with 10% cobalt
Sinter Hipped- C2 grade, micrograin carbide
Miniature and subminiature

Prices are pulled from our database in real time. Press Add button to see product price.

		2 Flute	4 Flute
Cutting Dia	LOC	Part Number	Part Number
.005	0.0150	MO-100010	MO-100410
.006	0.0180	MO-200110	MO-205110
.007	0.0210	MO-200120	MO-205120
.008	0.0240	MO-200130	MO-205130
.009	0.0270	MO-200140	MO-205140
.010	0.0300	MO-100030	MO-100430
.011	0.0330	MO-200160	MO-205160
.012	0.0360	MO-200170	MO-205170
.013	0.0390	MO-200180	MO-205180
.014	0.0420	MO-200190	MO-205190
.015	0.0450	MO-100050	MO-100450
.016	0.0480	MO-200210	MO-205210
.017	0.0510	MO-200220	MO-205220
.018	0.0540	MO-200230	MO-205230
.019	0.0570	MO-200240	MO-205240
.020	0.0600	MO-100070	MO-100470
.021	0.0630	MO-200260	MO-205260
.022	0.0660	MO-200270	MO-205270
.023	0.0690	MO-200280	MO-205280
.024	0.0720	MO-200290	MO-205290
.025	0.0750	MO-100090	MO-100490
.026	0.0780	MO-200310	MO-205310
.027	0.0810	MO-200320	MO-205320
.028	0.0840	MO-200330	MO-205330
.029	0.0870	MO-200340	MO-205340
.030	0.0900	MO-100110	MO-100510
.031	0.0930	MO-200360	MO-205360
.032	0.0960	MO-200370	MO-205370
.033	0.0990	MO-200380	MO-205380
.034	0.1020	MO-200390	MO-205390
.035	0.1050	MO-100130	MO-100530
.036	0.1080	MO-200410	MO-205410
.037	0.1110	MO-200420	MO-205420
.038	0.1140	MO-200430	MO-205430
.039	0.1170	MO-200440	MO-205440
.040	0.1200	MO-100150	MO-100550
.041	0.1230	MO-200460	MO-205460
.042	0.1260	MO-200470	MO-205470
.043	0.1290	MO-200480	MO-205480
.044	0.1320	MO-200490	MO-205490
.045	0.1350	MO-100170	MO-100570
.046	0.1380	MO-200510	MO-205510
.047	0.1410	MO-200520	MO-205520
.048	0.1440	MO-200530	MO-205530
.049	0.1470	MO-200540	MO-205540
.050	0.1500	MO-100190	MO-100590
.051	0.1530	MO-200560	MO-205560
.052	0.1560	MO-200570	MO-205570
.053	0.1590	MO-200580	MO-205580
.054	0.1620	MO-200590	MO-205590
.055	0.1650	MO-100210	MO-100610
.056	0.1680	MO-200610	MO-205610
.057	0.1710	MO-200620	MO-205620
.058	0.1740	MO-200630	MO-205630
.059	0.1770	MO-200640	MO-205640
.060	0.1800	MO-100230	MO-100630
.061	0.1830	MO-200660	MO-205660
.062	0.1860	MO-200670	MO-205670
.063	0.1890	MO-200680	MO-205680
.064	0.1920	MO-200690	MO-205690
.065	0.1950	MO-100250	MO-100650
.070	0.2100	MO-100270	MO-100670
.075	0.2250	MO-100290	MO-100690
.080	0.2400	MO-100310	MO-100710
.085	0.2550	MO-100330	MO-100730
.090	0.2700	MO-100350	MO-100750
.095	0.2850	MO-100370	MO-100770
.100	0.3000	MO-100390	MO-100790
.105	0.3150	MO-100401	MO-100801
.110	0.3300	MO-100403	MO-100803
.115	0.3450	MO-100406	MO-100805
.120	0.3600	MO-100408	MO-100807
