Roughing / Finishing Endmills with Chipbreaker
SQUARE AND BALL END
3 & 4 FLUTES, CARBIDE
- Manufactured from the highest quality carbide material with 10% cobalt
- Sinter hipped, C-2 grade, fine grain carbide
- Chipbreaker geometry permits extremely high feed rates in roughing operations
- Designed with tooth overlap to produce fairly smooth part finish
- Minimizes cutting force for longer tool life

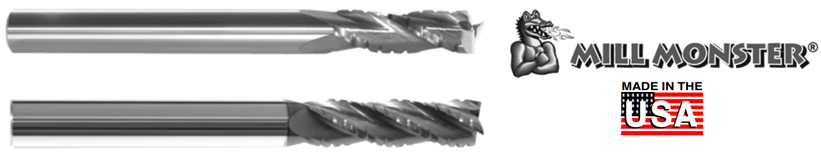

SQUARE END
| Mill Dia. |
LOC | Shank | OAL | Coating | 3 Flute Part Number |
4 Flute Part Number |
| 1/8 | 1/2 | 1/8 | 1-1/2 | Uncoated | MO-267-125500 | MO-257-125500 |
| 1/2 | 1/8 | 1-1/2 | TiAlN | MO-267-125503 | MO-257-125503 | |
| 3/16 | 5/8 | 3/16 | 2 | Uncoated | MO-267-187625 | MO-257-187625 |
| 5/8 | 3/16 | 2 | TiAlN | MO-267-187628 | MO-257-187628 | |
| 1/4 | 3/4 | 1/4 | 2-1/2 | Uncoated | MO-267-250750 | MO-257-250750 |
| 3/4 | 1/4 | 2-1/2 | TiAlN | MO-267-250753 | MO-257-250753 | |
| 5/16 | 13/16 | 5/16 | 2-1/2 | Uncoated | MO-267-312812 | MO-257-312812 |
| 13/16 | 5/16 | 2-1/2 | TiAlN | MO-267-312815 | MO-257-312815 | |
| 3/8 | 1 | 3/8 | 2-1/2 | Uncoated | MO-267-375875 | MO-257-375875 |
| 1 | 3/8 | 2-1/2 | TiAlN | MO-267-375878 | MO-257-375878 | |
| 7/16 | 1 | 7/16 | 2-3/4 | Uncoated | MO-267-437100 | MO-257-437100 |
| 1 | 7/16 | 2-3/4 | TiAlN | MO-267-437103 | MO-257-437103 | |
| 1/2 | 1 | 1/2 | 3 | Uncoated | MO-267-500100 | MO-257-500100 |
| 1 | 1/2 | 3 | TiAlN | MO-267-500103 | MO-257-500103 | |
| 5/8 | 1-1/4 | 5/8 | 3-1/2 | Uncoated | MO-267-625114 | MO-257-625114 |
| 1-1/4 | 5/8 | 3-1/2 | TiAlN | MO-267-625117 | MO-257-625117 | |
| 3/4 | 1-1/2 | 3/4 | 4 | Uncoated | MO-267-750112 | MO-257-750112 |
| 1-1/2 | 3/4 | 4 | TiAlN | MO-267-750115 | MO-257-750115 | |
| 1 | 1-1/2 | 1 | 4 | Uncoated | MO-267-100112 | MO-257-100112 |
| 1-1/2 | 1 | 4 | TiAlN | MO-267-100115 | MO-257-100115 |

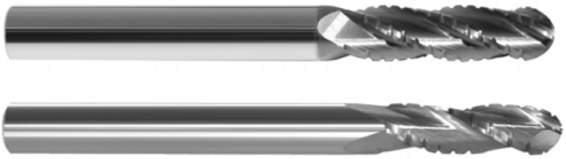

BALL NOSE
| Mill Dia. |
LOC | Shank | OAL | Coating | 3 Flute Part Number |
4 Flute Part Number |
| 1/8 | 1/2 | 1/8 | 1-1/2 | Uncoated | MO-268-125500 | MO-258-125500 |
| 1/2 | 1/8 | 1-1/2 | TiAlN | MO-268-125503 | MO-258-125503 | |
| 3/16 | 5/8 | 3/16 | 2 | Uncoated | MO-268-187625 | MO-258-187625 |
| 5/8 | 3/16 | 2 | TiAlN | MO-268-187628 | MO-258-187628 | |
| 1/4 | 3/4 | 1/4 | 2-1/2 | Uncoated | MO-268-250750 | MO-258-250750 |
| 3/4 | 1/4 | 2-1/2 | TiAlN | MO-268-250753 | MO-258-250753 | |
| 5/16 | 13/16 | 5/16 | 2-1/2 | Uncoated | MO-268-312812 | MO-258-312812 |
| 13/16 | 5/16 | 2-1/2 | TiAlN | MO-268-312815 | MO-258-312815 | |
| 3/8 | 1 | 3/8 | 2-1/2 | Uncoated | MO-268-375875 | MO-258-375875 |
| 1 | 3/8 | 2-1/2 | TiAlN | MO-268-375878 | MO-258-375878 | |
| 7/16 | 1 | 7/16 | 2-3/4 | Uncoated | MO-268-437100 | MO-258-437100 |
| 1 | 7/16 | 2-3/4 | TiAlN | MO-268-437103 | MO-258-437103 | |
| 1/2 | 1 | 1/2 | 3 | Uncoated | MO-268-500100 | MO-258-500100 |
| 1 | 1/2 | 3 | TiAlN | MO-268-500103 | MO-258-500103 | |
| 5/8 | 1-1/4 | 5/8 | 3-1/2 | Uncoated | MO-268-625114 | MO-258-625114 |
| 1-1/4 | 5/8 | 3-1/2 | TiAlN | MO-268-625117 | MO-258-625117 | |
| 3/4 | 1-1/2 | 3/4 | 4 | Uncoated | MO-268-750112 | MO-258-750112 |
| 1-1/2 | 3/4 | 4 | TiAlN | MO-268-750115 | MO-258-750115 | |
| 1 | 1-1/2 | 1 | 4 | Uncoated | MO-268-100112 | MO-258-100112 |
| 1-1/2 | 1 | 4 | TiAlN | MO-268-100115 | MO-258-100115 |
