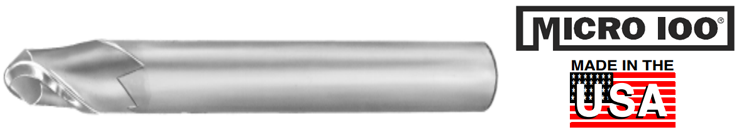

Long Reach Ball Endmills
2 & 4 Flute Center Cutting - 30 ° Helix
- Micro grain carbide
- Neck diameter is reduced .020” on all sizes for
required clearance in long reach applications - Center cutting
- 30° helix
- Maximum T.I.R. .0005”
| Dia | Shank Dia |
OAL | Flute Length |
Neck Length |
2-Flute Part Number |
4-Flute Part Number |
| 3/16 | 3/16 | 3 | 3/8 | 1-5/8 | MI-BLR1872 | MI-BLR1874 |
| 1/4 | 1/4 | 4 | 1/2 | 2 | MI-BLR2502 | MI-BLR2504 |
| 5/16 | 5/16 | 4 | 5/8 | 2 | MI-BLR3122 | MI-BLR3124 |
| 3/8 | 3/8 | 4 | 3/4 | 2 | MI-BLR3752 | MI-BLR3754 |
| 7/16 | 7/16 | 6 | 1 | 3-1/2 | MI-BLR4372 | MI-BLR4374 |
| 1/2 | 1/2 | 6 | 1 | 3-1/2 | MI-BLR5002 | MI-BLR5004 |
| 5/8 | 5/8 | 6 | 1-1/4 | 3-1/4 | MI-BLR6252 | MI-BLR6254 |
| 3/4 | 3/4 | 6 | 1-1/2 | 3 | MI-BLR7502 | MI-BLR7504 |
| 1 | 1 | 6 | 1-1/2 | 3 | MI-BLR0012 | MI-BLR0014 |
