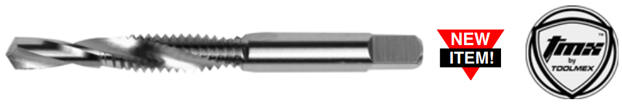

Combination Tap & Drill

COMINATION TAP & DRILL
High Speed Steel
  • High Speed Steel, 2 Flute
  • Combined drills and taps will do two operations at one time. Designed so that
    through-holes up to times the tap diameter can be drilled and tapped at high RPM
  • Will work well in any material where HSS tools will perform
  • Drill points will produce the proper size hole for tapping
Prices are pulled from our database in real time. Press Add button to see product price.
Thread
Size		 Thread
Length		 H
Limit		 Size Flute
Length		 OAL Part Number
4-40 NC 9/16 H2 .0890 1/4 1-7/8 TMX-5780-005
4-48 NF 9/16 H2 .0930 1/4 1-7/8 TMX-5780-010
5-40 NC 5/8 H2 .1015 9/32 1-5/16 TMX-5780-015
5-44 NF 5/8 H2 .1040 9/32 1-5/16 TMX-5780-020
6-32 NC 11/16 H3 .1095 5/16 2 TMX-5780-025
8-32 NC 3/4 H3 .1360 3/8 2-1/8 TMX-5780-035
8-36 NF 3/4 H3 .1385 3/8 2-1/8 TMX-5780-040
10-24 NC 7/8 H3 .1520 13/32 2-3/8 TMX-5780-045
10-32 NF 7/8 H3 .1610 13/32 2-3/8 TMX-5780-050
12-24 NC 7/8 H3 .1770 15/32 2-3/8 TMX-5780-055
1/4-20 NC 15/16 H3 .2010 17/32 2-1/2 TMX-5780-065
1/4-28 NF 15/16 H3 .2175 17/32 2-1/2 TMX-5780-070
5/16-18 NC 1-1/8 H3 .2570 11/16 3 TMX-5780-075
5/16-24 NF 1-1/8 H3 .2720 11/16 3 TMX-5780-080
3/8-16 NC 1-1/4 H3 .3125 13/16 3-1/2 TMX-5780-085
3/8-24 NF 1-1/4 H3 .3345 13/16 3-1/2 TMX-5780-090
7/16-14 NC 1-7/16 H3 .3680 1 3-7/8 TMX-5780-095
7/16-20 NF 1-7/16 H3 .3890 1 3-7/8 TMX-5780-100
1/2-13 NC 1-21/32 H3 .4250 1-1/8 4-1/4 TMX-5780-105
1/2-20 NF 1-21/32 H3 .4510 1-1/8 4-1/4 TMX-5780-110
