HSSE-V3 Metric Taps

HSSE-V3 METRIC TAPS

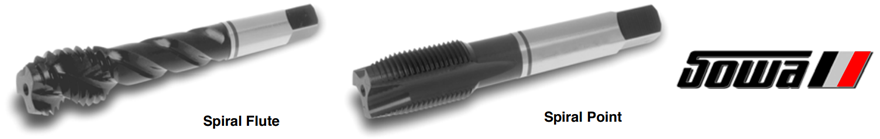

SPIRAL POINT & SPIRAL FLUTE
Blue Ring
Designed for high-speed tapping applications. Developed to withstand the high stress and high
heat associated with high-speed CNC production tapping. Features a unique freecutting design
with a special tempering and geometry which contributes to extra tool life.
Applications and Features:

Used in general machine tapping applications for mild carbon steels such as
1018, 1010, 1035,1045,1050 and 1065
Up to 25 HRC

Prices are pulled from our database in real time. Press Add button to see product price.

					SPIRAL POINT	SPIRAL FLUTE
Nominal Size & Pitch	No. of Flutes	Thread Limits	OAL	Thread Length	Part Number	Part Number
M2 X .4	2	D3	1-3/4	.433	SOWA-119-750	-
M2.5 X .45	2	D3	1-13/16	.512	SOWA-119-751	-
M3 X .5	3	D3	1-15/16	.433	SOWA-119-752	SOWA-119-840
M3.5 X .6	3	D4	2	.512	SOWA-119-753	SOWA-119-841
M4 X .7	3	D4	2-1/8	.512	SOWA-119-754	SOWA-119-842
M4.5 X .75	3	D4	2-3/8	.512	SOWA-119-755	-
M5 X .8	3	D4	2-3/8	.512	SOWA-119-756	SOWA-119-843
M6 X 1	3	D5	2-1/2	.630	SOWA-119-757	SOWA-119-844
M7 X 1	3	D5	2-23/32	.630	SOWA-119-758	SOWA-119-845
M8 X 1	3	D5	2-23/32	.748	SOWA-119-759	SOWA-119-846
M8 X 1.25	3	D5	2-23/32	.748	SOWA-119-760	SOWA-119-847
M10 X 1.25	3	D5	2-15/16	.748	SOWA-119-761	SOWA-119-848
M10 X 1.5	3	D6	2-15/16	.748	SOWA-119-762	SOWA-119-849
M12 X 1.25	3	D5	3-3/8	.945	SOWA-119-763	SOWA-119-850
M12 X 1.75	3	D6	3-3/8	.945	SOWA-119-764	-
M14 X 1.5	3	D6	3-19/32	.984	SOWA-119-765	SOWA-119-852
M14 X 2	3	D7	3-19/32	.984	SOWA-119-766	SOWA-119-853
M16 X 1.5	3	D6	3-13/16	1.102	SOWA-119-767	SOWA-119-854
M16 X 2	3	D7	3-13/16	1.102	SOWA-119-768	SOWA-119-855
M18 X 1.5	3	D6	4-1/32	1.102	SOWA-119-769	SOWA-119-856
M18 X 2.5	3	D7	4-1/32	1.102	SOWA-119-770	SOWA-119-857
M20 X 1.5	3	D5	4-15/32	1.220	SOWA-119-771	SOWA-119-858
M20 X 2.5	3	D6	4-15/32	1.220	SOWA-119-772	SOWA-119-859
