HSSE-V3 3% Vanadium Metric Taps
Metric Taps
Orange Ring
Designed for high-speed tapping applications. Developed to withstand the high stress and high
heat associated with high-speed CNC production tapping. Features a unique freecutting design
with a special tempering and geometry which contributes to extra tool life.
Applications and Features:
Orange Ring:
- For STAINLESS STEELS
- Up to 35 HRC

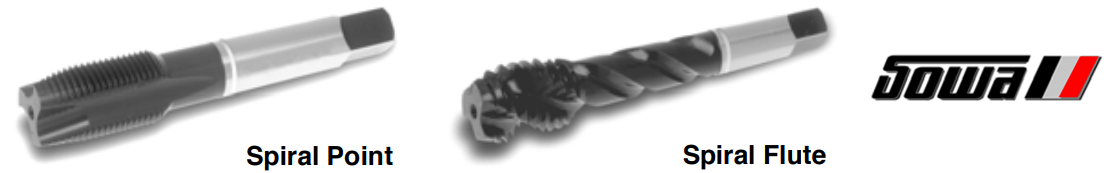

| SPIRAL POINT | SPIRAL FLUTE | |||||
| Nominal Size & Pitch |
No. of Flutes |
Thread Limits |
OAL | Thread Length |
Part Number | Part Number |
| M3 X .5 | 3 | D3 | 1-15/16 | .433 | SOWA-124-955 | SOWA-124-988 |
| M4 X .7 | 3 | D4 | 2-1/8 | .512 | SOWA-124-956 | SOWA-124-989 |
| M5 X .8 | 3 | D4 | 2-3/8 | .512 | SOWA-124-957 | SOWA-124-990 |
| M6 X 1 | 3 | D5 | 2-1/2 | .630 | SOWA-124-958 | SOWA-124-991 |
| M8 X 1.25 | 3 | D5 | 2-23/32 | .748 | SOWA-124-959 | SOWA-124-992 |
| M10 X 1.25 | 3 | D5 | 2-15/16 | .748 | SOWA-124-960 | SOWA-124-993 |
| M10 X 1.5 | 3 | D6 | 2-15/16 | .748 | SOWA-124-961 | SOWA-124-994 |
| M12 X 1.75 | 3 | D6 | 3-3/8 | .945 | SOWA-124-962 | SOWA-124-995 |
| M14 X 2 | 3 | D6 | 3-19/32 | .984 | SOWA-124-897 | SOWA-124-996 |
| M16 X 2 | 3 | D7 | 3-13/16 | 1.102 | SOWA-124-899 | SOWA-124-997 |
| M18 X 2.5 | 3 | D7 | 4-1/32 | 1.102 | SOWA-124-901 | SOWA-124-998 |
| M20 X 2.5 | 3 | D6 | 4-1/4 | 1.220 | SOWA-124-903 | SOWA-124-999 |
| M22 X 2.5 | 3 | D6 | 4-11/16 | 1.339 | SOWA-124-905 | SOWA-124-943 |
| M24 X 3 | 3 | D7 | 4-29/32 | 1.339 | SOWA-124-907 | SOWA-124-944 |
