HSSE-V3 Taps
SOWA HIGH PERFORMANCE TAPS
Sowa High Performance Taps help you take the guesswork out of tap selection. Taps are color-coded to ensure the proper selection for your application.
Blue Ring: For general ductile materials including aluminum, low and medium carbon steels, brass, copper and cast iron
Yellow Ring: For tough materials including stainless steel, medium grade and alloyed high carbon steel, aluminum and titanium
Orange Ring: Superior geometry and design for Stainless Steels
Red Ring: Powdered metal ideal for nickel alloys, tool steels, stainless steels and titanium
HSSE-V3 TAPS

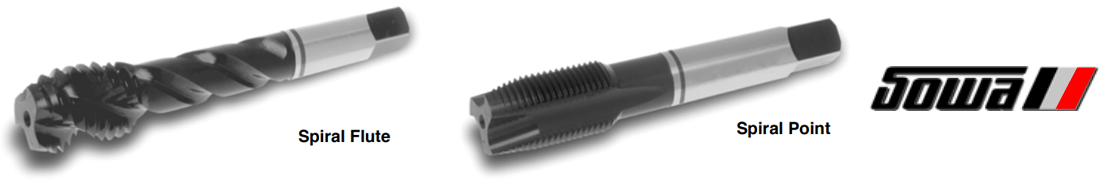

SPIRAL POINT & SPIRAL FLUTE
Machine Screw and Fractional Sizes
Blue Ring
Designed for high-speed tapping applications. Developed to withstand the
high stress and high heat associated with high-speed CNC production tapping.
Features a unique free-cutting design with a special tempering and geometry
for long tool life.
Applications and Features:
Sowa High Performance Taps help you take the guesswork out of tap selection. Taps are color-coded to ensure the proper selection for your application.
Blue Ring: For general ductile materials including aluminum, low and medium carbon steels, brass, copper and cast iron
Yellow Ring: For tough materials including stainless steel, medium grade and alloyed high carbon steel, aluminum and titanium
Orange Ring: Superior geometry and design for Stainless Steels
Red Ring: Powdered metal ideal for nickel alloys, tool steels, stainless steels and titanium
SPIRAL POINT & SPIRAL FLUTE
Machine Screw and Fractional Sizes
Blue Ring
Designed for high-speed tapping applications. Developed to withstand the
high stress and high heat associated with high-speed CNC production tapping.
Features a unique free-cutting design with a special tempering and geometry
for long tool life.
Applications and Features:
- Used in general machine tapping applications for mild carbon steels such as
1018, 1010, 1035,1045,1050 and 1065 - Up to 25 HRC
- Metric Sizes Also Available
| SPIRAL POINT | SPIRAL FLUTE | |||||||
| Tap | TPI | Thread Limits |
OAL | Thread Len. |
No. of Flutes |
Part Number | No. of Flutes |
Part Number |
| NC | ||||||||
| 4 | 40 | H2 | 1-7/8 | .433 | 2 | SOWA-119-700 | 2 | SOWA-119-800 |
| 6 | 32 | H3 | 2 | .512 | 3 | SOWA-119-701 | 3 | SOWA-119-801 |
| 8 | 32 | H3 | 2-1/8 | .512 | 3 | SOWA-119-702 | 3 | SOWA-119-802 |
| 10 | 24 | H3 | 2-3/8 | .512 | 2 | SOWA-119-703 | - | - |
| 10 | 24 | H3 | 2-3/8 | .512 | 3 | SOWA-119-704 | 3 | SOWA-119-803 |
| 12 | 24 | H3 | 2-3/8 | .512 | 3 | SOWA-119-705 | - | - |
| 1/4 | 20 | H3 | 2-1/2 | .630 | 2 | SOWA-119-706 | - | - |
| 1/4 | 20 | H3 | 2-1/2 | .630 | 3 | SOWA-119-707 | 3 | SOWA-119-804 |
| 5/16 | 18 | H3 | 2-23/32 | .748 | 2 | SOWA-119-708 | - | - |
| 5/16 | 18 | H3 | 2-23/32 | .748 | 3 | SOWA-119-709 | 3 | SOWA-119-805 |
| 3/8 | 16 | H3 | 2-15/16 | .748 | 2 | SOWA-119-710 | - | - |
| 3/8 | 16 | H3 | 2-15/16 | .748 | 3 | SOWA-119-711 | 3 | SOWA-119-806 |
| 7/16 | 14 | H3 | 3-5/32 | .866 | 3 | SOWA-119-712 | 3 | SOWA-119-807 |
| 1/2 | 13 | H3 | 3-3/8 | .945 | 3 | SOWA-119-713 | 3 | SOWA-119-808 |
| 5/8 | 11 | H3 | 3-13/16 | 1.102 | 3 | SOWA-119-714 | 4 | SOWA-119-809 |
| 3/4 | 10 | H3 | 4-1/4 | 1.220 | 3 | SOWA-119-715 | 4 | SOWA-119-810 |
| 7/8 | 9 | H4 | 4-11/16 | 1.339 | 3 | SOWA-119-716 | 4 | SOWA-119-811 |
| 1 | 8 | H4 | 5-1/8 | 1.496 | 3 | SOWA-119-717 | 4 | SOWA-119-812 |
| 1-1/8 | 7 | H4 | 5-7/16 | 1.732 | 4 | SOWA-119-718 | 4 | SOWA-119-813 |
| 1-1/4 | 7 | H4 | 5-3/4 | 1.732 | 4 | SOWA-119-719 | 4 | SOWA-119-814 |
| 1-3/8 | 6 | H4 | 6-1/16 | 2.000 | 4 | SOWA-119-720 | 4 | SOWA-119-815 |
| 1-1/2 | 6 | H4 | 6-3/8 | 2.000 | 4 | SOWA-119-721 | 4 | SOWA-119-816 |
| NF | ||||||||
| 6 | 40 | H2 | 2 | .512 | 3 | SOWA-119-722 | - | - |
| 10 | 32 | H3 | 2-3/8 | .512 | 2 | SOWA-119-723 | - | - |
| 10 | 32 | H3 | 2-3/8 | .512 | 3 | SOWA-119-724 | 3 | SOWA-119-817 |
| 1/4 | 28 | H3 | 2-1/2 | .630 | 2 | SOWA-119-725 | - | - |
| 1/4 | 28 | H3 | 2-1/2 | .630 | 3 | SOWA-119-726 | 3 | SOWA-119-818 |
| 5/16 | 24 | H3 | 2-23/32 | .748 | 2 | SOWA-119-727 | - | - |
| 5/16 | 24 | H3 | 2-23/32 | .748 | 3 | SOWA-119-728 | 3 | SOWA-119-819 |
| 3/8 | 24 | H3 | 2-15/16 | .748 | 2 | SOWA-119-729 | - | - |
| 3/8 | 24 | H3 | 2-15/16 | .748 | 3 | SOWA-119-730 | 3 | SOWA-119-820 |
| 7/16 | 20 | H3 | 3-5/32 | .866 | 3 | SOWA-119-731 | - | - |
| 1/2 | 20 | H3 | 3-3/8 | .945 | 3 | SOWA-119-732 | 3 | SOWA-119-821 |
| 5/8 | 18 | H3 | 3-13/16 | 1.102 | 3 | SOWA-119-733 | 4 | SOWA-119-822 |
| 3/4 | 16 | H3 | 4-1/4 | 1.220 | 3 | SOWA-119-734 | 4 | SOWA-119-823 |
| 7/8 | 14 | H4 | 4-11/16 | 1.339 | 3 | SOWA-119-735 | 4 | SOWA-119-824 |
| 1 | 12 | H4 | 5-1/8 | 1.496 | 3 | SOWA-119-736 | 4 | SOWA-119-825 |
| 1-1/8 | 12 | H4 | 5-7/16 | 1.732 | 4 | SOWA-119-737 | 4 | SOWA-119-826 |
| 1-1/4 | 12 | H4 | 5-3/4 | 1.732 | 4 | SOWA-119-738 | 4 | SOWA-119-827 |
| 1-3/8 | 12 | H4 | 6-1/16 | 2.000 | 4 | SOWA-119-739 | 4 | SOWA-119-828 |
| 1-1/2 | 12 | H4 | 6-3/8 | 2.000 | 4 | SOWA-119-740 | 4 | SOWA-119-829 |
