Dovetail Cutters

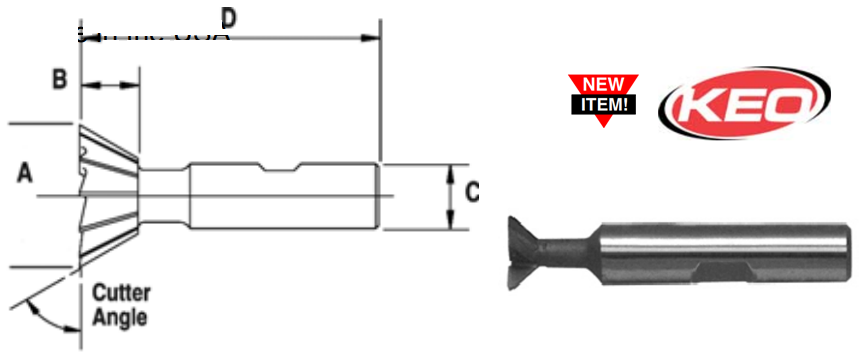

DOVETAIL CUTTERS
Shank Type- HSS & M35 Cobalt

Ideal tool for milling dovetails
Available in 45° and 60° angles
HSS or Cobalt
Made in the USA

Prices are pulled from our database in real time. Press Add button to see product price.

	Cutter Width B				HSS		COBALT
Dia A	45°	60°	Shank Dia C	OAL D	45° Angle Part Number	60° Angle Part Number	45° Angle Part Number	60° Angle Part Number
3/8	1/8	3/16	3/8	2-1/8	KEO-75034	KEO-75036	KEO-76034	KEO-76036
1/2	1/8	7/32	3/8	2-1/8	KEO-75044	KEO-75046	KEO-76044	KEO-76046
3/4	3/16	5/16	3/8	2-1/8	KEO-75064	KEO-75066	KEO-76064	KEO-76066
1	1/4	7/16	1/2	2-1/2	KEO-75084	KEO-75086	KEO-76084	KEO-76086
1-3/8	3/8	9/16	5/8	2-7/8	KEO-75114	KEO-75116	KEO-76114	KEO-76116
1-7/8	1/2	13/16	7/8	3-1/4	KEO-75154	KEO-75156	KEO-76154	KEO-76156
2-1/4	11/16	1-1/16	1	3-3/4	KEO-75184	KEO-75186	KEO-76184	KEO-76186
2-1/2	3/4	1-1/8	1	3-3/4	KEO-75204	KEO-75206	KEO-76204	KEO-76206

DOVETAIL CUTTERS
Carbide Head on Hardened Steel Shank
Head Dia: +.000/ -.010

Prices are pulled from our database in real time. Press Add button to see product price.

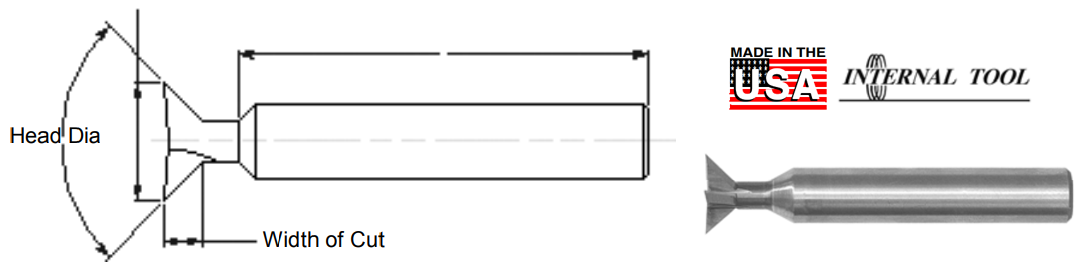

DOVETAIL CUTTER WITH STEEL SHANK

Head Dia	Width of Cut	Neck Dia	Tool ID #	Shank Dia	No. Of Teeth	OAL	Neck Length	Included Angle	Part Number
3/8	0.187	0.160	DH-375-60	1/2	5	3-1/8	1/4	60°	IT-86-1200
1/2	0.250	0.210	DH-500-60	1/2	6				IT-86-1205
3/4	0.312	0.350	DH-750-60	1/2	5				IT-86-1210
3/8	0.125	0.125	DH-375-90	1/2	4	3-1/8	1/4	90°	IT-86-1215
1/2	0.156	0.185	DH-500-90	1/2	4				IT-86-1220
3/4	0.250	0.250	DH-750-90	1/2	5				IT-86-1225

Prices are pulled from our database in real time. Press Add button to see product price.

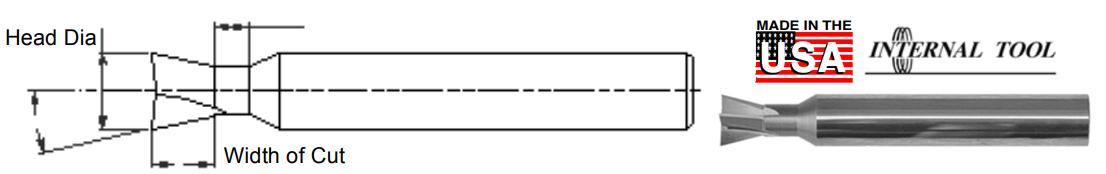

15° DOVETAIL CUTTERS

Head Dia	Width of Cut	Neck Dia	Tool ID #	Shank Dia	No. Of Teeth	OAL	Neck Length	Part Number
3/16	0.125	0.110	DS-187-30	3/16	4	2-1/2	1/4	IT-86-1000
1/4	0.160	0.150	DS-250-30	1/4	4	2-1/2	1/4	IT-86-1005
5/16	0.190	0.200	DS-312-30	5/16	4	2-1/2	1/4	IT-86-1010
3/8	0.250	0.230	DS-375-30	3/8	4	2-1/2	1/4	IT-86-1015
1/2	0.320	0.320	DS-500-30	1/2	6	3	1/4	IT-86-1020
5/8	0.500	0.345	DS-625-30	5/8	6	3-1/2	1/4	IT-86-1025

Prices are pulled from our database in real time. Press Add button to see product price.

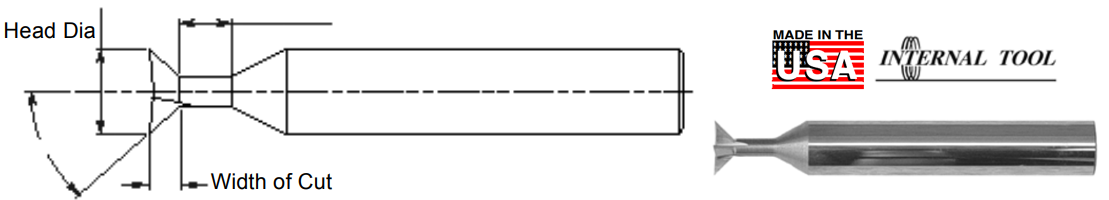

45° DOVETAIL CUTTERS

Head Dia	Width of Cut	Neck Dia	Tool ID #	Shank Dia	No. Of Teeth	OAL	Neck Length	Part Number
3/16	0.045	0.090	DS-187-90	3/16	3	2-1/2	1/4	IT-86-1120
1/4	0.060	0.115	DS-250-90	1/4	3	2-1/2	1/4	IT-86-1125
5/16	0.080	0.150	DS-312-90	5/16	4	2-1/2	1/4	IT-86-1127
3/8	0.110	0.125	DS-375-90	3/8	4	2-1/2	1/4	IT-86-1130
1/2	0.150	0.185	DS-500-90	1/2	4	3	1/4	IT-86-1135
5/8	0.190	0.245	DS-625-90	5/8	6	3-1/2	1/4	IT-86-1137
