Woodruff Keyseat Cutters - Individual & Sets

WOODRUFF KEYSEAT CUTTERS
Shank Type- HSS & M35 Cobalt
KEO woodruff keyseat cutters are extremely versatile profile milling cutters. Although originally designed to mill standard woodruff keyseat, they satisfy a variety of applications from milling slots to milling threads. Available in straight and stagger tooth models. Prices are pulled from our database in real time. Press Add button to see product price.

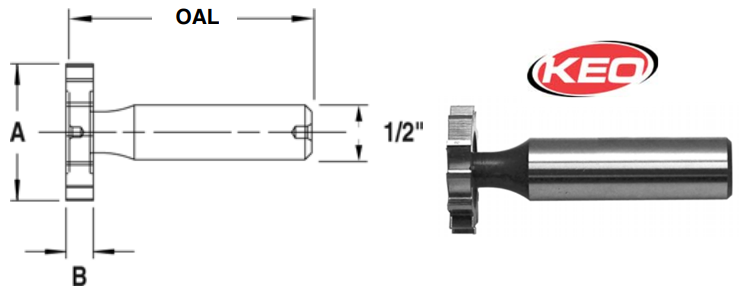

1/2” Straight Shank

	A	B		HSS		COBALT		Number of Teeth
Amer. Std. #	Head Dia.	Face Width	OAL	Straight Tooth Part Number	Stagger Tooth Part Number	Straight Tooth Part Number	Stagger Tooth Part Number	Straight	Stagger
202	1/4	1/16	2-1/16	KEO-62010 Add	KEO-62015 Add	KEO-93932 Add	KEO-93933 Add	8	6
2021/2	5/16	1/16	2-1/16	KEO-62020 Add	KEO-62025 Add	KEO-93938 Add	KEO-93939 Add	8	6
3021/2	5/16	3/32	2-3/32	KEO-63020 Add	KEO-63025 Add	KEO-93944 Add	KEO-93945 Add	8	6
203	3/8	1/16	2-1/16	KEO-62030 Add	KEO-62035 Add	KEO-93950 Add	KEO-93951 Add	8	6
303	3/8	3/32	2-3/32	KEO-63030 Add	KEO-63035 Add	KEO-93956 Add	KEO-93957 Add	8	6
403	3/8	1/8	2-1/8	KEO-64030 Add	KEO-64035 Add	KEO-93962 Add	KEO-93963 Add	8	6
204	1/2	1/16	2-1/16	KEO-62040 Add	KEO-62045 Add	KEO-93968 Add	KEO-93969 Add	10	8
304	1/2	3/32	2-3/32	KEO-63040 Add	KEO-63045 Add	KEO-93974 Add	KEO-93975 Add	10	8
404	1/2	1/8	2-1/8	KEO-64040 Add	KEO-64045 Add	KEO-93986 Add	KEO-93987 Add	10	8
305	5/8	3/32	2-3/32	KEO-63050 Add	KEO-63055 Add	KEO-93980 Add	KEO-93981 Add	10	8
405	5/8	1/8	2-1/8	KEO-64050 Add	KEO-64055 Add	KEO-93992 Add	KEO-93993 Add	10	8
505	5/8	5/32	2-5/32	KEO-65050 Add	KEO-65055 Add	KEO-94004 Add	KEO-94005 Add	10	8
605	5/8	3/16	2-3/16	KEO-66050 Add	KEO-66055 Add	KEO-94010 Add	KEO-94011 Add	10	8
406	3/4	1/8	2-1/8	KEO-64060 Add	KEO-64065 Add	KEO-93998 Add	KEO-93999 Add	10	8
506	3/4	5/32	2-5/32	KEO-65060 Add	KEO-65065 Add	KEO-94016 Add	KEO-94017 Add	10	8
606	3/4	3/16	2-3/16	KEO-66060 Add	KEO-66065 Add	KEO-94034 Add	KEO-94035 Add	10	8
806	3/4	1/4	2-1/4	KEO-68060 Add	KEO-68065 Add	KEO-94022 Add	KEO-94023 Add	10	8
507	7/8	5/32	2-5/32	KEO-65070 Add	KEO-65075 Add	KEO-94028 Add	KEO-94029 Add	12	10
607	7/8	3/16	2-3/16	KEO-66070 Add	KEO-66075 Add	KEO-94040 Add	KEO-94041 Add	12	10
707	7/8	7/32	2-7/32	KEO-67070 Add	KEO-67075 Add	KEO-94046 Add	KEO-94047 Add	12	10
807	7/8	1/4	2-1/4	KEO-68070 Add	KEO-68075 Add	KEO-94076 Add	KEO-94077 Add	12	10
608	1	3/16	2-3/16	KEO-66080 Add	KEO-66085 Add	KEO-94052 Add	KEO-94053 Add	12	10
708	1	7/32	2-7/32	KEO-67080 Add	KEO-67085 Add	KEO-94058 Add	KEO-94059 Add	12	10
808	1	1/4	2-1/4	KEO-68080 Add	KEO-68085 Add	KEO-94082 Add	KEO-94083 Add	12	10
1008	1	5/16	2-5/16	KEO-60080 Add	KEO-60085 Add	KEO-94130 Add	KEO-94131 Add	12	10
1208	1	3/8	2-3/8	KEO-62080 Add	KEO-62085 Add	KEO-94064 Add	KEO-94065 Add	12	10
609	1-1/8	3/16	2-3/16	KEO-66090 Add	KEO-66095 Add	KEO-94070 Add	KEO-94071 Add	12	10
709	1-1/8	7/32	2-7/32	KEO-67090 Add	KEO-67095 Add	KEO-94088 Add	KEO-94089 Add	12	10
809	1-1/8	1/4	2-1/4	KEO-68090 Add	KEO-68095 Add	KEO-94094 Add	KEO-94095 Add	12	10
1009	1-1/8	5/16	2-5/16	KEO-60090 Add	KEO-60095 Add	KEO-94136 Add	KEO-94137 Add	12	10
610	1-1/4	3/16	2-3/16	KEO-66100 Add	KEO-66105 Add	KEO-94100 Add	KEO-94101 Add	14	12
710	1-1/4	7/32	2-7/32	KEO-67100 Add	KEO-67105 Add	KEO-94106 Add	KEO-94107 Add	14	12
810	1-1/4	1/4	2-1/4	KEO-68100 Add	KEO-68105 Add	KEO-94112 Add	KEO-94113 Add	14	12
1010	1-1/4	5/16	2-5/16	KEO-60010 Add	KEO-60015 Add	KEO-94142 Add	KEO-94143 Add	14	12
1210	1-1/4	3/8	2-3/8	KEO-62100 Add	KEO-62105 Add	KEO-94160 Add	KEO-94161 Add	14	12
811	1-3/8	1/4	2-1/4	KEO-68110 Add	KEO-68115 Add	KEO-94118 Add	KEO-94119 Add	14	12
1011	1-3/8	5/16	2-5/16	KEO-60110 Add	KEO-60115 Add	KEO-94148 Add	KEO-94149 Add	14	12
1211	1-3/8	3/8	2-3/8	KEO-62110 Add	KEO-62115 Add	KEO-94166 Add	KEO-94167 Add	14	12
812	1-1/2	1/4	2-1/4	KEO-68120 Add	KEO-68125 Add	KEO-94124 Add	KEO-94125 Add	16	14
1012	1-1/2	5/16	2-5/16	KEO-60120 Add	KEO-60125 Add	KEO-94154 Add	KEO-94155 Add	16	14
1212	1-1/2	3/8	2-3/8	KEO-62120 Add	KEO-62125 Add	KEO-94172 Add	KEO-94173 Add	16	14

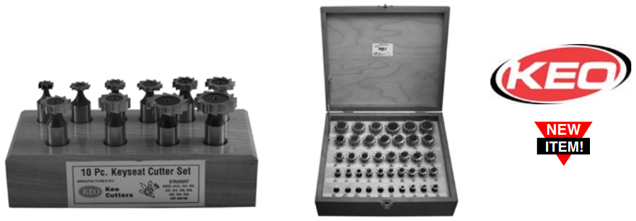

WOODRUFF KEYSEAT CUTTER SETS
Shank Type- HSS & M35 Cobalt Prices are pulled from our database in real time. Press Add button to see product price.

Teeth Type	# of Pieces	Includes	Part Number
Straight	10	43,204,404,305,505,406, 606,806,608,808	KEO-60100 Add
Staggered	10	43,204,404,305,505,406, 606,806,608,808	KEO-60105 Add
Straight	41	1 Each of All American Std Sizes	KEO-60000 Add
Staggered	41	1 Each of All American Std Sizes	KEO-60005 Add
