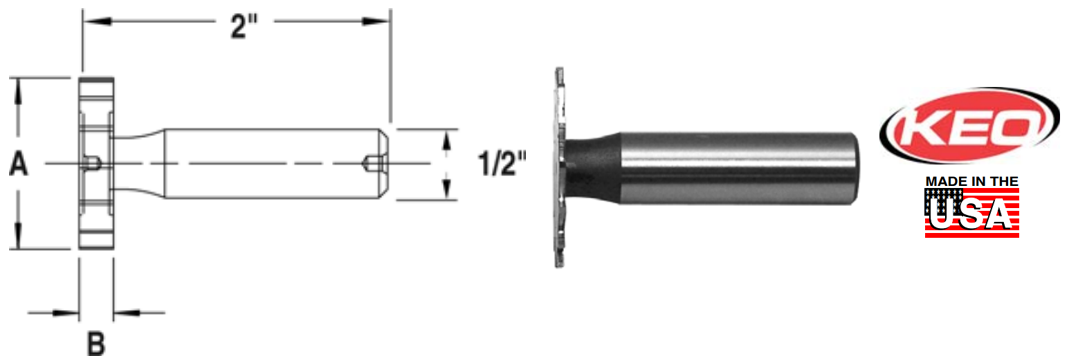

Woodruff Narrow Width Keyseat Cutters
Shank Type- HSS & M35 Cobalt
- Fractional widths
- 1/2” diameter straight shank
- 2” overall length
- Right hand cut
- Made in the USA
| Head Dia. A |
Head Width B |
Part Number |
| 1/4 | 1/64 | KEO-68981 |
| 1/4 | 0.020 | KEO-68978 |
| 1/4 | 1/32 | KEO-68982 |
| 1/4 | 3/64 | KEO-68983 |
| 5/16 | 1/64 | KEO-68984 |
| 5/16 | 0.020 | KEO-68979 |
| 5/16 | 1/32 | KEO-68985 |
| 5/16 | 3/64 | KEO-68986 |
| 3/8 | 1/64 | KEO-68987 |
| 3/8 | 0.020 | KEO-68980 |
| 3/8 | 1/32 | KEO-68988 |
| 3/8 | 3/64 | KEO-68989 |
| 1/2 | 1/64 | KEO-68990 |
| 1/2 | 0.020 | KEO-68991 |
| 1/2 | 1/32 | KEO-69000 |
| 1/2 | 3/64 | KEO-69001 |
| 5/8 | 0.020 | KEO-69009 |
| 5/8 | 1/32 | KEO-69010 |
| 5/8 | 3/64 | KEO-69011 |
| 5/8 | 1/16 | KEO-69020 |
| 5/8 | 5/64 | KEO-69021 |
| 3/4 | 1/32 | KEO-69030 |
| 3/4 | 3/64 | KEO-69031 |
| 3/4 | 1/16 | KEO-69040 |
| 3/4 | 5/64 | KEO-69041 |
| 3/4 | 3/32 | KEO-69050 |
| 3/4 | 7/64 | KEO-69051 |
| 7/8 | 1/32 | KEO-69060 |
| 7/8 | 3/64 | KEO-69061 |
| 7/8 | 1/16 | KEO-69070 |
| 7/8 | 5/64 | KEO-69071 |
| 7/8 | 3/32 | KEO-69080 |
| 7/8 | 7/64 | KEO-69081 |
| 7/8 | 1/8 | KEO-69090 |
| 7/8 | 9/64 | KEO-69091 |
| 1 | 1/32 | KEO-69098 |
| 1 | 3/64 | KEO-69099 |
| 1 | 1/16 | KEO-69100 |
| 1 | 5/64 | KEO-69101 |
| 1 | 3/32 | KEO-69110 |
| 1 | 7/64 | KEO-69111 |
| 1 | 1/8 | KEO-69120 |
| 1 | 9/64 | KEO-69121 |
| 1 | 5/32 | KEO-69130 |
| 1 | 11/64 | KEO-69131 |
| 1-1/8 | 3/64 | KEO-69139 |
| 1-1/8 | 1/16 | KEO-69140 |
| 1-1/8 | 5/64 | KEO-69141 |
| 1-1/8 | 3/32 | KEO-69150 |
| 1-1/8 | 7/64 | KEO-69151 |
| 1-1/8 | 1/8 | KEO-69160 |
| 1-1/8 | 9/64 | KEO-69161 |
| 1-1/8 | 5/32 | KEO-69170 |
| 1-1/8 | 11/64 | KEO-69171 |
| 1-1/4 | 3/64 | KEO-69179 |
| 1-1/4 | 1/16 | KEO-69180 |
| 1-1/4 | 5/64 | KEO-69181 |
| 1-1/4 | 3/32 | KEO-69190 |
| 1-1/4 | 7/64 | KEO-69191 |
| 1-1/4 | 1/8 | KEO-69200 |
| 1-1/4 | 9/64 | KEO-69201 |
| 1-1/4 | 5/32 | KEO-69210 |
| 1-1/4 | 11/64 | KEO-69211 |
| 1-3/8 | 3/64 | KEO-69219 |
| 1-3/8 | 1/16 | KEO-69220 |
| 1-3/8 | 5/64 | KEO-69221 |
| 1-3/8 | 3/32 | KEO-69230 |
| 1-3/8 | 7/64 | KEO-69231 |
| 1-3/8 | 1/8 | KEO-69240 |
| 1-3/8 | 9/64 | KEO-69241 |
| 1-3/8 | 5/32 | KEO-69250 |
| 1-3/8 | 11/64 | KEO-69251 |
| 1-3/8 | 3/16 | KEO-69260 |
| 1-3/8 | 13/64 | KEO-69261 |
| 1-3/8 | 7/32 | KEO-69270 |
| 1-1/2 | 3/64 | KEO-69279 |
| 1-1/2 | 1/16 | KEO-69280 |
| 1-1/2 | 5/64 | KEO-69281 |
| 1-1/2 | 3/32 | KEO-69290 |
| 1-1/2 | 7/64 | KEO-69291 |
| 1-1/2 | 1/8 | KEO-69300 |
| 1-1/2 | 9/64 | KEO-69301 |
| 1-1/2 | 5/32 | KEO-69310 |
| 1-1/2 | 11/64 | KEO-69311 |
| 1-1/2 | 3/16 | KEO-69320 |
| 1-1/2 | 13/64 | KEO-69321 |
| 1-1/2 | 7/32 | KEO-69330 |
| 1-1/2 | 15/64 | KEO-69331 |
