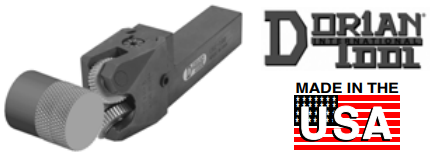

Knurling Tools

CNC MODULAR KNURLING

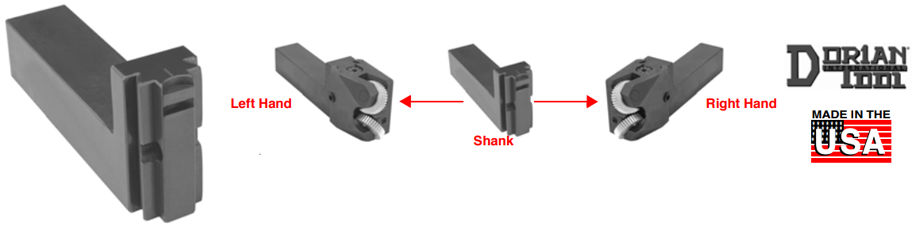

TOOL SHANK
  • Specifically designed for the CNC Lathe.
  • Precision square shank with preset center height.
  • Right or Left hand applications.
  • One shank fits all heads.
  • One head fits all shanks.
  • Cobalt knurl wheels, Tin-c coated.
  • Carbide knurl pin.
  • Easy set-up.
  • Center height adjustment.
  • Interchangeable knurl heads.
  • High productivity.
  • Best knurl quality.
  • Long knurl wheel life.
  • Low production cost.
Prices are pulled from our database in real time. Press Add button to see product price.
Shank Size Width Shank Length Description Part Number
0.375 0.75 2.50 SCNC-37 DN20310
0.500 0.75 2.75 SCNC-50 DN20320
0.625 0.75 2.75 SCNC-162 DN20325
0.75 1 3.25 CNC-75 DN21010
1.00 1 4.50 CNC-100 DN21020
1.25 1 5.00 CNC-125 DN21030

CNC MODULAR KNURLING TOOL HEADS

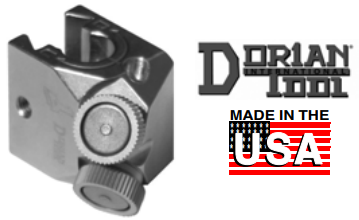

Type 1
Small Diameter
Diamond Cutting Knurling Head
  • Cutting Style
  • Small Diameter Range
  • Diamond Pattern Only
  • End Feed
  • Feed Range:
    .004 to .012
Prices are pulled from our database in real time. Press Add button to see product price.
Description Part Number Knurl Wheel Dia. Range Knurl Pin
Desc.		 Part Number
SCNCKH-1-2 DN20335
SW2S .312-1.5 PSW-2.0S DN29005
CNCKH-1-2 DN21035
SW2S .312-1.5 PSW-2.0S DN29005

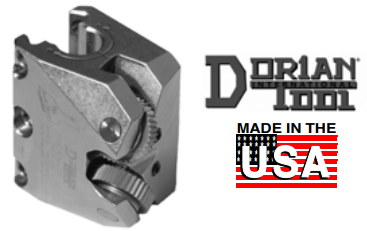

Type 2
Heavy Duty
Diamond Cutting Knurling Head
  • Cutting Style
  • Medium Diameter Range
  • Diamond Pattern Only
  • End Feed
  • Feed Range:
    .004 to .016
Prices are pulled from our database in real time. Press Add button to see product price.
Description Part Number Knurl Wheel Dia. Range Knurl Pin Desc. Part Number
CNCKH-2-R DN21040
R 1.0-5.0 KPS-25-87-C DN28925

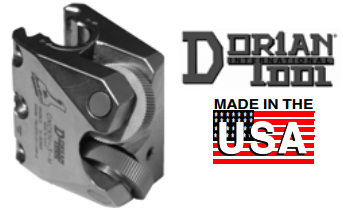

Type 3
Extra Heavy Duty
Diamond Cutting Knurling Head
  • Cutting Style
  • Large Diameter Range
  • Diamond Pattern Only
  • End Feed
  • Feed Range:
    .004 to .025
Prices are pulled from our database in real time. Press Add button to see product price.
Description Part Number Knurl Wheel Dia. Range Knurl Pin Desc. Part Number
CNCKH-3-M DN21045
M 2.0-up KPS-31-100-C DN28945

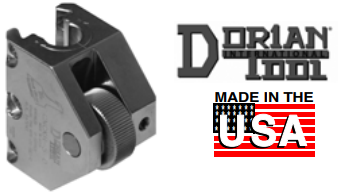

Type 5
Single Wheel
Forming Knurling Head
  • Forming Style
  • Unrestricted Dia. Range
  • Straight Pattern
  • Male Diamond Pattern
  • Female Diamond Pattern
  • In Feed and End Feed
Prices are pulled from our database in real time. Press Add button to see product price.
Description Part Number Knurl Wheel Dia. Range Knurl Pin Desc. Part Number
CNCKH-5-O DN21050
O N/A KPS-31-125-C DN28950

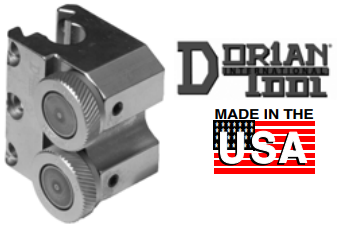

Style 6
Shoulder
Forming Knurling Head
  • Forming Style
  • 5/16” & Up Dia. Range
  • Shoulder Knurling
  • Straight Pattern
  • Male Diamond Pattern
  • In Feed and End Feed
Prices are pulled from our database in real time. Press Add button to see product price.
Description Part Number Knurl Wheel Dia. Range Knurl Pin Desc. Part Number
SCNCKH-6-2 DN20340
SW2 .312 &up SW2.0P-2S DN29055
CNCKH-6-4 DN21056
SW4 .312 &up SW4.0P-2S DN29085

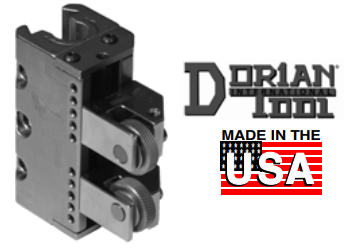

Style 7
Straddle Forming Knurling Head
  • Forming Style
  • Up to 1” Dia. Range
  • Straddle Knurling
  • Straight Pattern
  • Male Diamond Pattern
  • In Feed and End Feed
Prices are pulled from our database in real time. Press Add button to see product price.
Description Part Number Knurl Wheel Dia. Range Knurl Pin Desc. Part Number
SCNCKH-7-D DN20345
D 0.5 KPS-18-50-C DN28905
CNCKH-7-R DN21060
R 1 KPS-25-62-C DN28915

Modular Versatility
The CNC Modular Knurling Tool is a tooling system which combines exceptional versatility, rigidity, ease of handling, and simplicity. Knurl wheels, heads, and shanks can be combined to build your own knurling tool to fit any work application and machine.
Precise Adjustable Center Height
The dovetail mounting of the shank and head insures that the tool will be rigid and adjustable yet easy to use. By turning the adjustment screw clockwise or counterclockwise the center height of the head can be adjusted. Each eighth turn of the screw, which is marked on the screw, moves the head .004". After the desired center height has been reached, tightening the lock screw ensures that the head will remain in position while knurling a part.
Method of Knurling
Knurl forming action displaces the material creating a perfect knurl pattern while sacrificing speeds and feeds. The force applied through forming is increased in larger diameters making knurling difficult and slow. Knurling cutting action cuts a perfect knurl pattern 10 to 20 times faster than a forming knurl tool becoming applicable for CNC use. It is engineered to knurl any material, including thin wall tubing, with minimum stress to the spindle and compound lathe.
  • Precision square shank with preset center height.
  • Right or Left hand applications.
  • One shank fits all heads.
  • One head fits all shanks.
  • Easy set-up.
  • Center height adjustment.
  • Interchangeable knurl heads.
  • High productivity.
  • Best knurl quality.
  • Low production cost.
  • Cutting - 10 to 20 times faster.
CUTTING

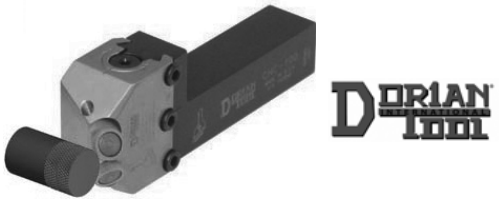

CNC-000-1-2
Small cutting range: 5/16" to 1-1/2"
  • Minimum stress on the machine, and faster knurl forming action.
  • Twin straight SW series knurl wheels for diamond pattern. Allows tool to knurl close
    to a square shoulder.
  • Supplied with SW2S-30C cobalt knurl wheels-Tin-c coated. Adds longer life and better
    performance to the knurl wheels.
Prices are pulled from our database in real time. Press Add button to see product price.
Description Shank Size Tool Length Part Number
SCNC-37-1-2 0.375 4.125 DN20010
SCNC-50-1-2 0.5 4.375 DN20020
SCNC-162-1-2 0.625 4.375 DN20025
CNC-75-1-2 0.75 5.5 DN20410
CNC-100-1-2 1 6.75 DN20420
CNC-125-1-2 1.25 7.25 DN20430

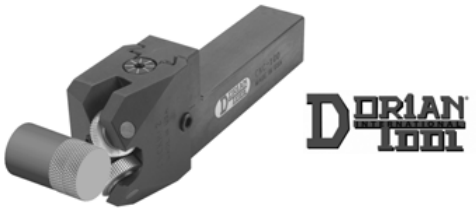

CUTTING
CNC-000-2-R
Heavy duty cutting range: 1" to 5"
  • Minimum stress on the machine, and faster than knurl forming action.
  • Twin straight R series knurl wheels for diamond pattern. Supplies more rigidity for
    larger diameters
  • Knurl wheels are mounted between thrust washers. Ensures smoothand even
    rotation of the knurls.
  • Supplied with RS-25-C cobalt knurl wheels - Tin-c coated. Adds longer life and better
    performance to the knurl wheels.
Prices are pulled from our database in real time. Press Add button to see product price.
Description Shank Size Tool Length Part Number
CNC-75-2-R 0.75 5.5 DN20510
CNC-100-2-R 1 6.75 DN20520
CNC-125-2-R 1.25 7.25 DN20530

CUTTING

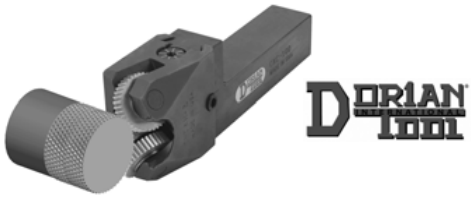

CNC-000-3-M
Extra heavy duty cutting range: 1-1/2" & up
  • Minimum stress on the machine, and faster than knurl forming action.
  • Twin straight M series knurl wheels for diamond pattern. Supplies more rigidity for
    larger diameters
  • Knurl wheels are mounted between thrust washers. Ensures smooth and even
    rotation of the knurls.
  • Supplied with MS-25-C cobalt knurl wheels - Tin-c coated. Adds longer life and better
    performance to the knurl wheels.
Prices are pulled from our database in real time. Press Add button to see product price.
Description Shank Size Tool Length Part Number
CNC-75-3-M 0.75 5.625 DN20610
CNC-100-3-M 1 6.875 DN20620
CNC-125-3-M 1.25 7.375 DN20630

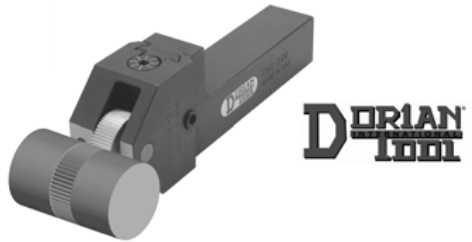

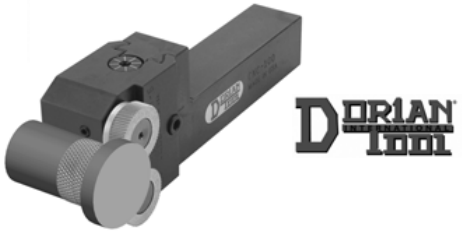

FORMING
CNC-000-5-0
Straight bump
  • Great quality of knurl pattern.
  • Single O series knurl wheel for straight or diamond pattern. Narrow knurl applications,
    up to 3/8" wide
  • Knurl wheel is mounted between thrust washers. Ensures smooth and even rotation
    of the knurl.
  • Supplied with ODF-25-C cobalt knurl wheel - Tin-c coated. Adds longer life and better
    performance to the knurl wheel.
Prices are pulled from our database in real time. Press Add button to see product price.
Description Shank Size Tool Length Part Number
CNC-75-5-O 0.75 5.5 DN20710
CNC-100-5-O 1 6.75 DN20720
CNC-125-5-O 1.25 7.25 DN20730

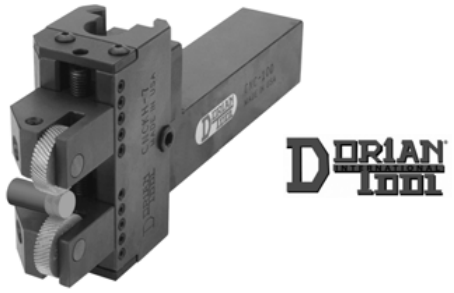

FORMING
CNC-000-6
•Shoulder diameter range: 5/16" & up
  • Better quality of knurl pattern.
  • Twin SW series knurl wheels for straight or diamond pattern. Allows tool to knurl
    against a square shoulder.
  • A thrust washer is mounted between the knurls and tool head. Ensures smooth and
    even rotation of the knurls.
  • Supplied with SW2R/L-30C or SW4R/L-25C cobalt knurl wheels - Tin-c coated. Adds
    longer life and better performance to the knurl wheels.
Prices are pulled from our database in real time. Press Add button to see product price.
Description Shank Size Tool Length Part Number
SCNC-37-6-2 0.375 4.125 DN20110
SCNC-50-6-2 0.5 4.375 DN20120
SCNC-162-6-2 0.625 4.375 DN20125

FORMING
CNC-000-7
Small diameter range: up to 1"
  • Better quality of knurl pattern.
  • Compact design. Allows more clearance for the tool head.
  • Twin D or R series knurl wheels for straight or diamond pattern. Supplies more
    rigidity for compact design.
  • Supplied with DDR/L or RDR/L-30-C cobalt knurl wheel - Tin-c coated. Adds longer
    life and better performance to the knurl wheel.
  • Self-centering knurling head. Precise alignment to the working part.
Prices are pulled from our database in real time. Press Add button to see product price.
Description Shank Size Tool Length Part Number
SCNC-37-7-D 0.375 4.25 DN20210
SCNC-50-7-D 0.5 4.5 DN20220
SCNC-162-7-D 0.625 4.5 DN20225
CNC-75-7-R 0.75 5.75 DN20910
CNC-100-7-R 1 7 DN20920
CNC-125-7-R 1.25 7.5 DN20930

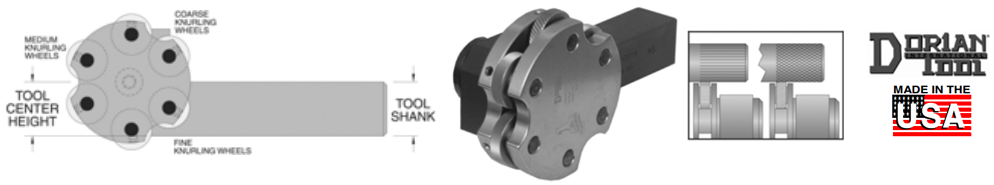

3SHKT - Three Swivel Head Knurling Tool
Designed to quickly knurl multiple applications with one tool. Precision square shank with preset center height. Twin knurl wheels for straight and diamond pattern. Knurl wheels are mounted between the thrust washers to ensure a smooth and even rotation of the knurls while knurling is performed. Self-centering knurling head for a precise alignment to the working part.
Prices are pulled from our database in real time. Press Add button to see product price.
Center Height Shank Size Desc. Part Number Knurl Wheel Knurl Pin Set Part Number
0.500 .500 x .750 3SHKT-50-D DN21510
DDR/L-20-C KPS-18-50 DN28805
0.625 .625 x .750 3SHKT-162-D DN21515
DDR/L-30-C
DDR/L-40-C
0.750 .750 x 1.00 3SHKT-75-M DN21530
MDR/L-16-C KPS-31-100 DN28845
1.000 1.00 x 1.00 3SHKT-100-M DN21540
MDR/L-25-C
1.250 1.25 x 1.25 3SHKT-125-M DN21550
MDR/L-35-C

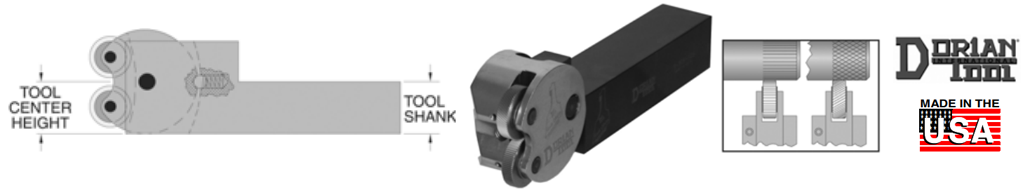

SCK - Self-Centering Knurling Tool for CNC Lathe
Specifically designed for CNC lathe. Precision square shank with preset center height. Twin knurl wheels for straight and diamond pattern. Knurl wheels are mounted between the thrust washers to ensure a smooth and even rotation of the knurls while knurling is performed. Self-centering knurling head for a precise alignment to the working part.
Prices are pulled from our database in real time. Press Add button to see product price.
Center Height Shank Size Desc. Part Number Knurl Wheel Knurl Pin Set Part Number
0.500 .500 x .750 SCK-50-D DN22110
DDR/L-30-C KPS-18-50 DN28805
0.750 .750 x 1.25 SCK-75-M DN22120
MDR/L-25-C KPS-31-75 DN28840
1.000 1.00 x 1.25 SCK-100-M DN22130
1.250 1.25 x 1.25 SCK-125-M DN22140

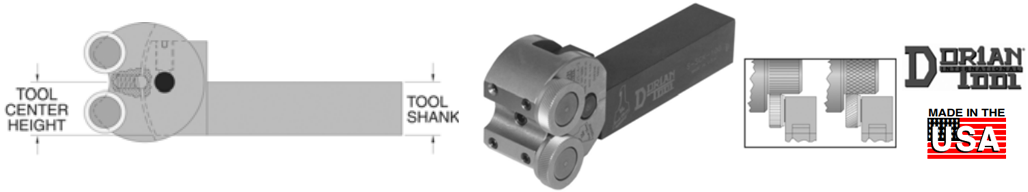

SSCK - Shoulder Self-Centering Knurling Tool for CNC Lathe
Specifically designed for CNC lathe. Designed to knurl against a square shoulder. Precision square shank with preset center height. Twin knurl wheels for straight and diamond pattern. Knurl wheels are mounted between thrust washers to ensure smooth and even rotation of the knurls while knurling is performed. Supplied with Cobalt TIC/N coated SW series knurl wheels. Self-centering knurling head for a precise alignment to the working part.
Prices are pulled from our database in real time. Press Add button to see product price.
Center Height Shank Size Desc. Part Number Knurl Wheel Knurl Pin Set Part Number
0.375 .375 x .500 SSCK-38-2 DN22210
SW2-S/R/L SW2.0P-2S DN29055
0.500 .500 x .625 SSCK-50-2 DN22220
0.750 .750 x .750 SSCK-75-4 DN22240
SW4-S/R/L SW4.0P-2S DN29085
1.000 1.00 x 1.00 SSCK-100-4 DN22250
1.250 1.25 x 1.25 SSCK-125-4 DN22260

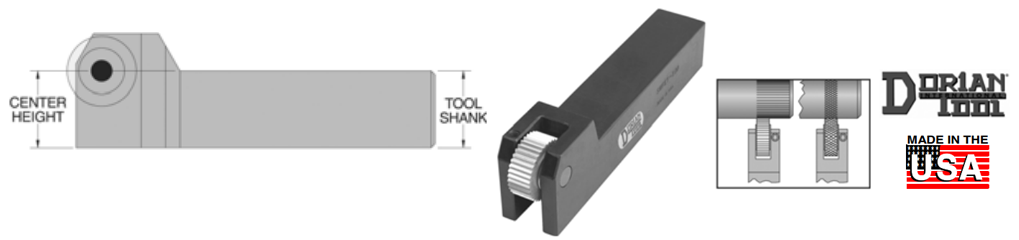

SWFKT - Single Wheel Fixed Knurling Tool for Manual or CNC Lathes
Precision square shank with preset center height. Single knurl wheel for straight and diamond pattern. Knurl wheel is mounted between the thrust washers to ensure smooth and even rotation of the knurl while knurling is performed. Best used for straight patterns or bump knurling a diamond pattern.
Prices are pulled from our database in real time. Press Add button to see product price.
Center Height Shank Size Desc. Part Number Knurl Wheel Knurl Pin Set Part Number
0.375 .375x.375 SWFKT-38-D DN21720
DS-30-C KPS-18-50 DN28805
0.500 .500x.500 SWFKT-50-D DN21730
DS-30-C KPS-18-50 DN28805
0.750 .750x.750 SWFKT-75-M DN21740
MS-25-C KPS-31-75 DN28840
1.000 1.00x1.00 SWFKT-100-O DN21750
OS-25-C KPS-31-100 DN28845
1.250 1.25x1.25 SWFKT-125-O DN21760
OS-25-C KPS-31-125 DN28850

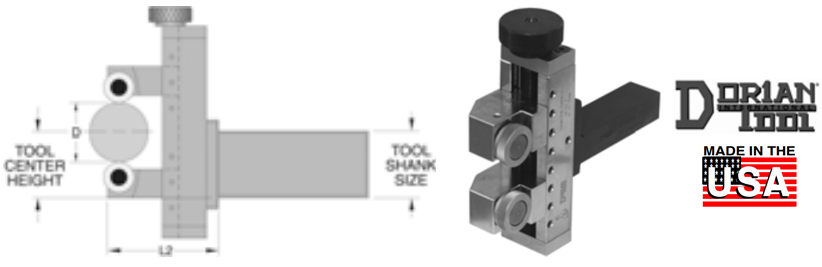

KTW109 - Diametral Shoulder Knurling Tool with Self-Centering
Adjustable Floating Straddle
This tool is designed when pressure and deflection are a problem. The knurling heads are able to "float" somewhat and center on the workpiece, compensating for any off-centering. Precise square shank with preset center height. A diametrical adjustment screw regulates the depth of the knurl pattern and diameter size
Prices are pulled from our database in real time. Press Add button to see product price.
Center Height Shank Size Max. L2 Description Part Number Knurl Wheel Knurl Pin Set Part Number
0.750 .750x1.00 2 3.125 KTW109-75-2-4 DN22810
SW4R/L-25C SW4.0P-2S DN29085
1.000 1.00x1.00 2 3.125 KTW109-100-2-4 DN22820
1.000 1.00x1.25 3 4.25 KTW109-100-3-4 DN22830
SW4R/L-25C SW4.0P-2S DN29085
1.250 1.25x1.25 3 4.25 KTW109-125-3-4 DN22840
