Knurling Wheels

CIRCULAR PITCH KNURLS
Made to extremely high standards from the finest materials available. Knurls are individually hob cut and lapped to a smooth hard finish to give longer life and impart a smooth clean surface to the knurled part. Knurls available in High Speed, Cobalt, TIC/N - Coated, beveled, and diametral pitch.

“A” Series
High Speed Steel

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
10	90°	DN23502	DN23634	DN23766
12	90°	DN23504	DN23636	DN23768
14	90°	DN23506	DN23638	DN23770
16	90°	DN23508	DN23640	DN23772
20	90°	DN23510	DN23642	DN23774
25	90°	DN23512	DN23644	DN23776
30	90°	DN23514	DN23646	DN23778
35	90°	DN23516	DN23648	DN23780
40	90°	DN23518	DN23650	DN23782
50	70°	DN23520	DN23652	DN23784
80	70°	DN23522	DN23654	DN23786

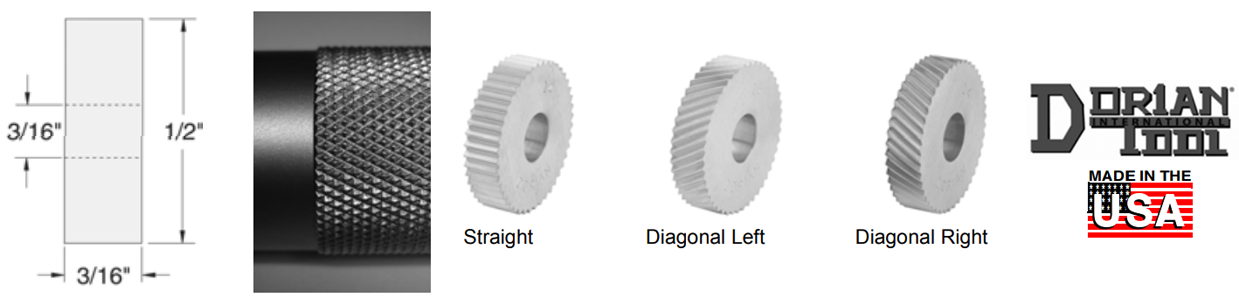

“D” Series
Cobalt

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
16	90°	DN25002	DN25056	DN25110
20	90°	DN25004	DN25058	DN25112
25	90°	DN25006	DN25060	DN25114
30	90°	DN25008	DN25062	DN25116
35	90°	DN25010	DN25064	DN25118
40	90°	DN25012	DN25066	DN25120
50	70°	DN25014	DN25068	DN25122
80	70°	DN25016	DN25070	DN25124

“M” Series
Cobalt

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
12	90°	DN25306	DN25372	DN25438
14	90°	DN25308	DN25374	DN25440
16	90°	DN25310	DN25376	DN25442
20	90°	DN25312	DN25378	DN25444
25	90°	DN25314	DN25380	DN25446
30	90°	DN25316	DN25382	DN25448

“R” Series
Cobalt

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
10	90°	DN26502	DN26564	DN26626
12	90°	DN26504	DN26566	DN26628
14	90°	DN26506	DN26568	DN26630
16	90°	DN26508	DN26570	DN26632
20	90°	DN26510	DN26572	DN26634
25	90°	DN26512	DN26574	DN26636
30	90°	DN26514	DN26576	DN26638
35	90°	DN26516	DN26578	DN26640
40	90°	DN26518	DN26580	DN26642
50	70°	DN26520	DN26582	DN26644

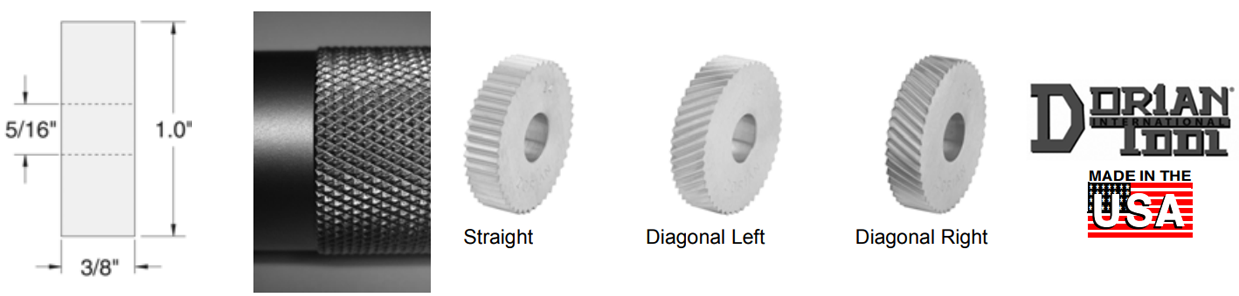

“O” Series
High Speed Steel

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
12	90°	DN25606	—	—
14	90°	DN25608	—	—
16	90°	DN25610	—	—
20	90°	DN25612	DN26008	DN26074
25	90°	DN25614	DN26010	DN26076
30	90°	DN25616	DN26012	DN26078

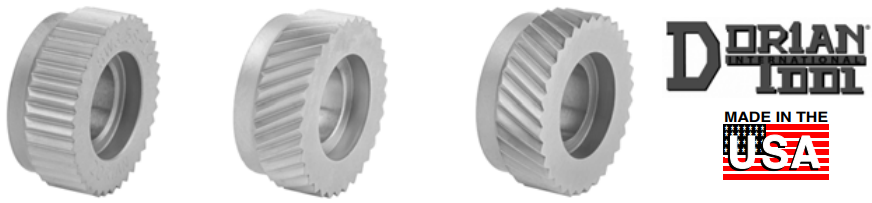

“SW” SERIES KNURLING WHEELS

"SW" knurling wheels are technically designed to knurl against a square shoulder.
With super precise workmanship, the wheels are made of heat treated High Cobalt Steel to withstand severe knurling operation.
Knurl wheels are Titanium Nitrating coated to reduce the co-efficient of friction when knurling, increasing the quality and the force of knurling as well as the life of the knurl wheels.
All SW Series knurl wheels are available only in cobalt and tin coated.

“SW2” Series
Cobalt

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
16	90°	DN27402	DN27452	DN27502
20	90°	DN27404	DN27454	DN27504
25	90°	DN27406	DN27456	DN27506
30	90°	DN27408	DN27458	DN27508
35	90°	DN27410	DN27460	DN27510
40	90°	DN27412	DN27462	DN27512
50	70°	DN27414	DN27464	DN27514

“SW4” Series
Cobalt

Prices are pulled from our database in real time. Press Add button to see product price.

		PATTERN
TPI	Incl. Tooth Angle	Straight	Diagonal Right	Diagonal Left
14	90°	DN28002	DN28056	DN28110
16	90°	DN28004	DN28058	DN28112
20	90°	DN28006	DN28060	DN28114
25	90°	DN28008	DN28062	DN28116
30	90°	DN28010	DN28064	DN28118
35	90°	DN28012	DN28066	DN28120
40	90°	DN28014	DN28068	DN28122
50	70°	DN28016	DN28070	DN28124
